MAZAK INTEGREX i-100S
CNC LATHES MULTI AXIS

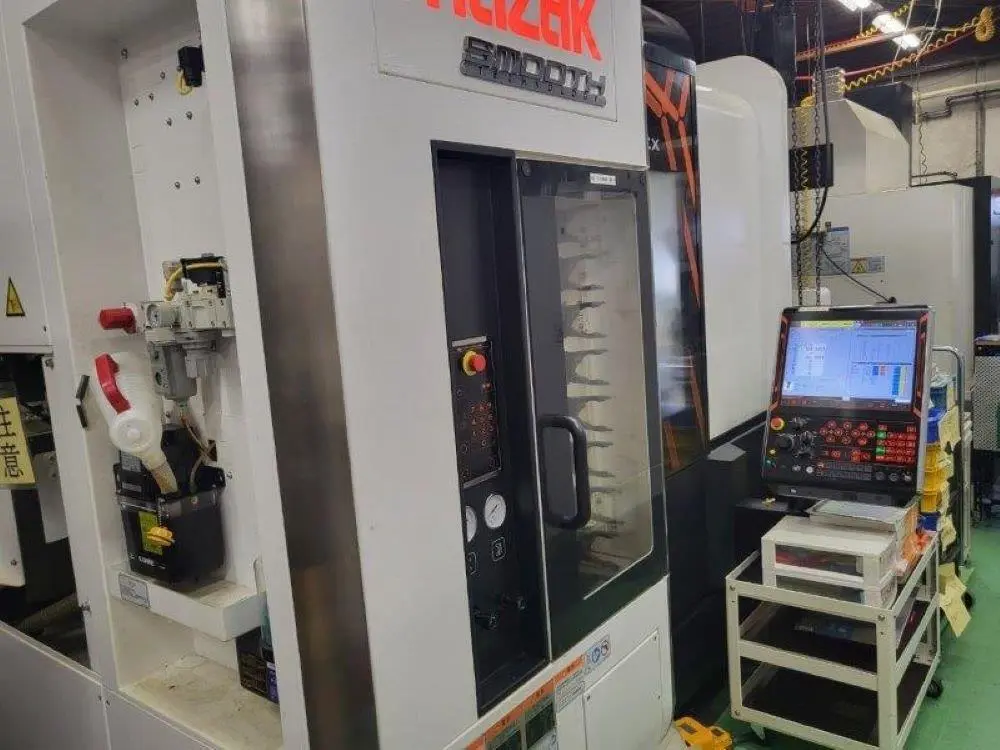

2018 MAZAK INTEGREX i-100S MULTI AXIS CNC LATHE. EXCELLENT CONDITION USED IN THE MEDICAL INDUSTRY SIMULTANEOUS 5 AXIS SOFTWARE PACKAGE W/ SIMULTANEOUS 5 AXIS SOFTWARE
AN SMOOTH X CONTROL.
| Maximum Swing | 20" |
| Max Turning Diameter | 19.7" |
| Main Spindle Bore/Max Bar Capacity | 2.00 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Distance Between Centers | 35.59" |
| Maximum Cutting Length | 33.6" |
| Distance Between Spindles | 35.55" |
| X-Axis Travel (X1, X2, X3) | 17.72"/ 8.66" |
| Z-Axis Travel (Z1, Z2, Z3) | 35.59"/ 35.55" |
| Y-Axis Travel (Y1, Y2, Y3) | 8.27" (+/- 4.13) |
| C-Axis Indexing (1, 2) | 0.0001 |
| W-Axis Travel Sub Spindle | 35.55 in |
| Main Spindle Chuck Size | 6" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 10/15 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2.4 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10/15 |
| Main & Sub Spindle Synchronization | Yes |
| ATC Magazine Capacity | 36 |
| B-Axis Travel | -30 DEG. TO +210 DEG. 0.0001 DEGREE INCREMENTS |
| B-Axis Head Indexing | 0.0001 deg |
| B-Axis Milling Spindle Horse Power | 7.51012 |
| B Axis Rotary Tool Spindle Speed | 12000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 10 hp |
| Parts Catcher | No |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Multi Tap Transformer | Yes |
| Rapid Traverse, X-Axis | 1575 |
| Rapid Traverse, Y-Axis | 1575 |
| Rapid Traverse, Z-Axis | 1575 |
| Control | CNC (MAZATROL SMOOTH X) |
| Dimensions | 120 x 99 x 110 chip con - 170 x 60 x 60 misc - 2 pallets |
| Weight | 22,266 LBS |
NOTE: ACTUAL MACHINE MAIN TRANSFORMER KVA RATING WILL BE GREATER
AIR REQUIREMENTS: 71 PSI / 9.89 CFM
TOTAL POWER REQUIRED (MACHINE ONLY-CONTINUOUS): 39.26 KVA
MAZATROL SMOOTH X CNC CONTROL
6" CHUCKS
