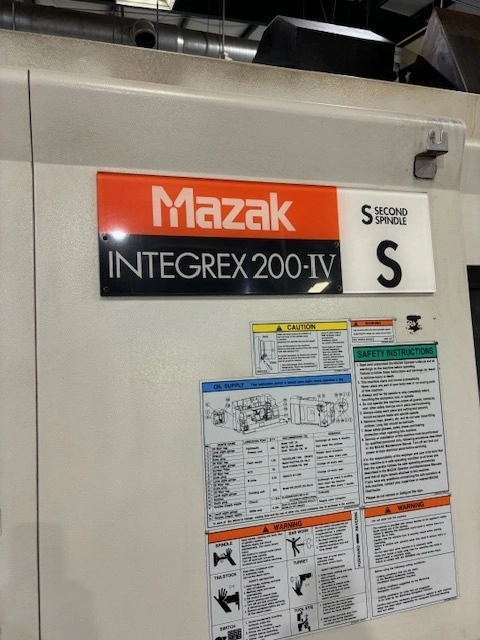

2009 MAZAK INTEGREX 200 IVS
Have one to sell?
ConditionUsed
1 available
$139,900.00 USD
Explore 2009 MAZAK INTEGREX 200-IVS CNC Lathe: Multi-axis precision, 40 ATC capacity, chip conveyor, with 41.14" max cutting length. Robust & ready for complex tasks.
MAZAK INTEGREX 200 IVS S/N 216677
MAZATROL MATRIX CONTROL
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
15" COLOR LCD
EIA/ISO CODE INPUT FUNCTION (STANDARD)
ADD. EIA/ISO FUNCTIONS (REQ. EIA/ISO)
3-D COORDINATE CONVERSION
GOO SLOPE CONSTANT
SHAPE COMPENSATION FOR ROTARY AXES
CYLINDRICAL (G07) & POLAR COORDINATE
ABSOLUTE POSITIONING SYS (LINEAR AXES)
X,Y,Z PITCH ERROR COMPENSATION INPUT
COOLANT THROUGH MILLING HEAD
15KG/213 PSI THRU COOLANT/ FLOOD SIMUL-FLOWABLE $7,600
1ST SPINDLE MOTOR AC 22KW (30HP)
1ST SPINDLE SPEED 5000 RPM
C-AXIS 0.0001 DEGREE INCR. (1ST SPINDLE)
SECOND SPINDLE MOTOR AC 18.5KW (25HP)
MILLING-SPINDLE SYNCHRONOUS TAPPING
EIA/ISO 1ST SPINDLE & MILL SPDL IND.ROTATION
IC MEMORY CARD INTERFACE
INCH/METRIC CONVERSION
CARDBUS l/F (2-SLDT)
LAN PORT
USB 1/F
Y-AXIS CONTROL
SECOND SPINDLE SPEED 5000 RPM
2ND SPINDLE C-AXIS 0.0001 DEGREE INCR. $3,000
CHUCK AIR BLAST (SECOND SPINDLE)
DELETE STD. CHUCK & CYLINDER (1ST SPD.)
8” THRU-HOLE CHUCK BB-08 $6,900
(1ST SPD.) THRU-HOLE CYL.S187
40 CAT-TOOL MAGAZINE $14,300
ROTARY-TOOL SPINDLE SPEED 12000 RPM
B-AXIS 0.0001 DEG/CENTERING (REQ. EIA/ISO)
B-AXIS INDEX 5 DEGREE (COUPLING CLAMP)
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE) $7,100
TOOL EYE (AUTOMATIC)
AUTO CHUCK JAWS OPEN/ CLOSE (1&2 SPINDLE)
CHUCK OPEN/ CLOSE CONFIRM. (1&2 SPINDLE)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
POWER TRANSFORMER FOR NORTH AMERICAN MKT
RELOCATION DEVICE
TURRET AIR BLAST $1,900
(FLOOD-COOLANT NOZZLE) $840
C1C2 SYNCHRONOUS FUNCTION
EIA /ISO FUNCTION $360
SIMULTANEOUS 5 AXES
TOOL TIP POINT CONTROL / SIMULTANEOUS 5 AXES $1,300
TOOL RADIUS COMPENSATION / 5 AXES $1,300
WORK MEASURING SYSTEM MP700 $12,000
Explore 2009 MAZAK INTEGREX 200-IVS CNC Lathe: Multi-axis precision, 40 ATC capacity, chip conveyor, with 41.14" max cutting length. Robust & ready for complex tasks.
Imperial
| Maximum Swing | 26.5" |
| Max Turning Diameter | 26" |
| Main Spindle Bore/Max Bar Capacity | 2.99/2.4 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 41.14" |
| X-Axis Travel (X1, X2, X3) | 22.8 |
| Z-Axis Travel (Z1, Z2, Z3) | 41.14 |
| Y-Axis Travel (Y1, Y2, Y3) | 6.33 |
| C-Axis Indexing (1, 2) | 0.0001 |
| W-Axis Travel Sub Spindle | 41.1 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.9" |
| Main Spindle Maximum Bar Work | 2.4" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30 |
| Main & Sub Spindle Synchronization | Yes |
| Rear Chuck Type | Hydraulic |
| ATC Magazine Capacity | 40 |
| Turret Rotary Tool Spindle Speed 1, 2 | 12000 |
| Turret Rotary Tool Horse Power 1, 2 | 30 |
| B-Axis Travel | 225 DEGREES |
| B-Axis Head Indexing | 0.0001 deg |
| B-Axis Milling Spindle Speed | 12000 rpm |
| B-Axis Milling Spindle Horse Power | 20 |
| B Axis Rotary Tool Spindle Speed | 5000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 25 hp |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Multi Tap Transformer | Yes |
| 5-AXIS MACHINING PACKAGE | 5 AXIS SIMULTANEOUS MACHINING |
| Control | CNC (MAZAK MATRIX) |
MAZAK INTEGREX 200 IVS S/N 216677
MAZATROL MATRIX CONTROL
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
15" COLOR LCD
EIA/ISO CODE INPUT FUNCTION (STANDARD)
ADD. EIA/ISO FUNCTIONS (REQ. EIA/ISO)
3-D COORDINATE CONVERSION
GOO SLOPE CONSTANT
SHAPE COMPENSATION FOR ROTARY AXES
CYLINDRICAL (G07) & POLAR COORDINATE
ABSOLUTE POSITIONING SYS (LINEAR AXES)
X,Y,Z PITCH ERROR COMPENSATION INPUT
COOLANT THROUGH MILLING HEAD
15KG/213 PSI THRU COOLANT/ FLOOD SIMUL-FLOWABLE $7,600
1ST SPINDLE MOTOR AC 22KW (30HP)
1ST SPINDLE SPEED 5000 RPM
C-AXIS 0.0001 DEGREE INCR. (1ST SPINDLE)
SECOND SPINDLE MOTOR AC 18.5KW (25HP)
MILLING-SPINDLE SYNCHRONOUS TAPPING
EIA/ISO 1ST SPINDLE & MILL SPDL IND.ROTATION
IC MEMORY CARD INTERFACE
INCH/METRIC CONVERSION
CARDBUS l/F (2-SLDT)
LAN PORT
USB 1/F
Y-AXIS CONTROL
SECOND SPINDLE SPEED 5000 RPM
2ND SPINDLE C-AXIS 0.0001 DEGREE INCR. $3,000
CHUCK AIR BLAST (SECOND SPINDLE)
DELETE STD. CHUCK & CYLINDER (1ST SPD.)
8” THRU-HOLE CHUCK BB-08 $6,900
(1ST SPD.) THRU-HOLE CYL.S187
40 CAT-TOOL MAGAZINE $14,300
ROTARY-TOOL SPINDLE SPEED 12000 RPM
B-AXIS 0.0001 DEG/CENTERING (REQ. EIA/ISO)
B-AXIS INDEX 5 DEGREE (COUPLING CLAMP)
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE) $7,100
TOOL EYE (AUTOMATIC)
AUTO CHUCK JAWS OPEN/ CLOSE (1&2 SPINDLE)
CHUCK OPEN/ CLOSE CONFIRM. (1&2 SPINDLE)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
POWER TRANSFORMER FOR NORTH AMERICAN MKT
RELOCATION DEVICE
TURRET AIR BLAST $1,900
(FLOOD-COOLANT NOZZLE) $840
C1C2 SYNCHRONOUS FUNCTION
EIA /ISO FUNCTION $360
SIMULTANEOUS 5 AXES
TOOL TIP POINT CONTROL / SIMULTANEOUS 5 AXES $1,300
TOOL RADIUS COMPENSATION / 5 AXES $1,300
WORK MEASURING SYSTEM MP700 $12,000
