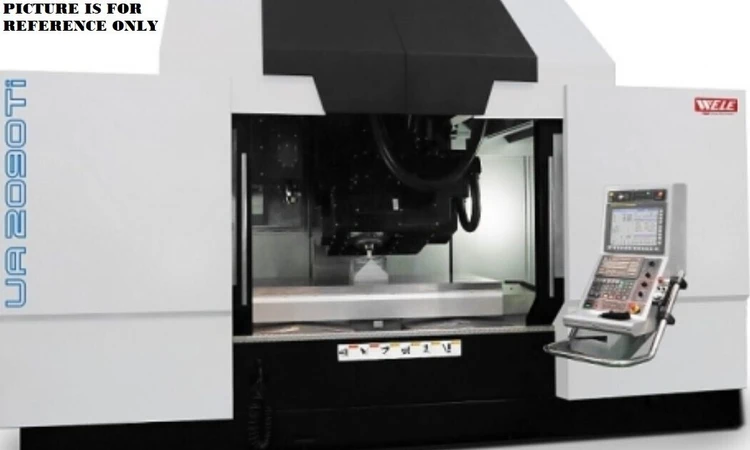

TOYODA WELE UA2090 Ti 5-AXIS VERTICAL MACHINING CENTER
MACHINING CENTERS, VERTICAL
TOYODA WELE UA2090 Ti 5-AXIS VERTICAL MACHINING CENTER WAS A DEMO MACHINE AT IMTS WITH ALMOST ZERO HOURS - IT'S DESIGNED FOR MACHINING TITANIUM AND HARD ALLOY COMPONENTS.
CHECK OUT THE BROCHURE FOR MORE DETAILS.
| X Travel | 78.7" |
| Y Travel | 35.4" |
| Z Travel | 27.5" |
| Spindle Speed | 8000 rpm |
| Table Size (W) | 35.4" |
| Table Size (L) | 84.6" |
| Main Spindle Motor | 35 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 30 HP (22 kW) / 35 HP (25 kW) |
| Table Type A-Axis Trunnion Tilt Range | ± 30° |
| B-AXIS (Table Swivel) | 30 |
| Dimensions | 209" x 130" x 157" |
| Weight | 50,706 lb |
CHIP CONVEYOR
