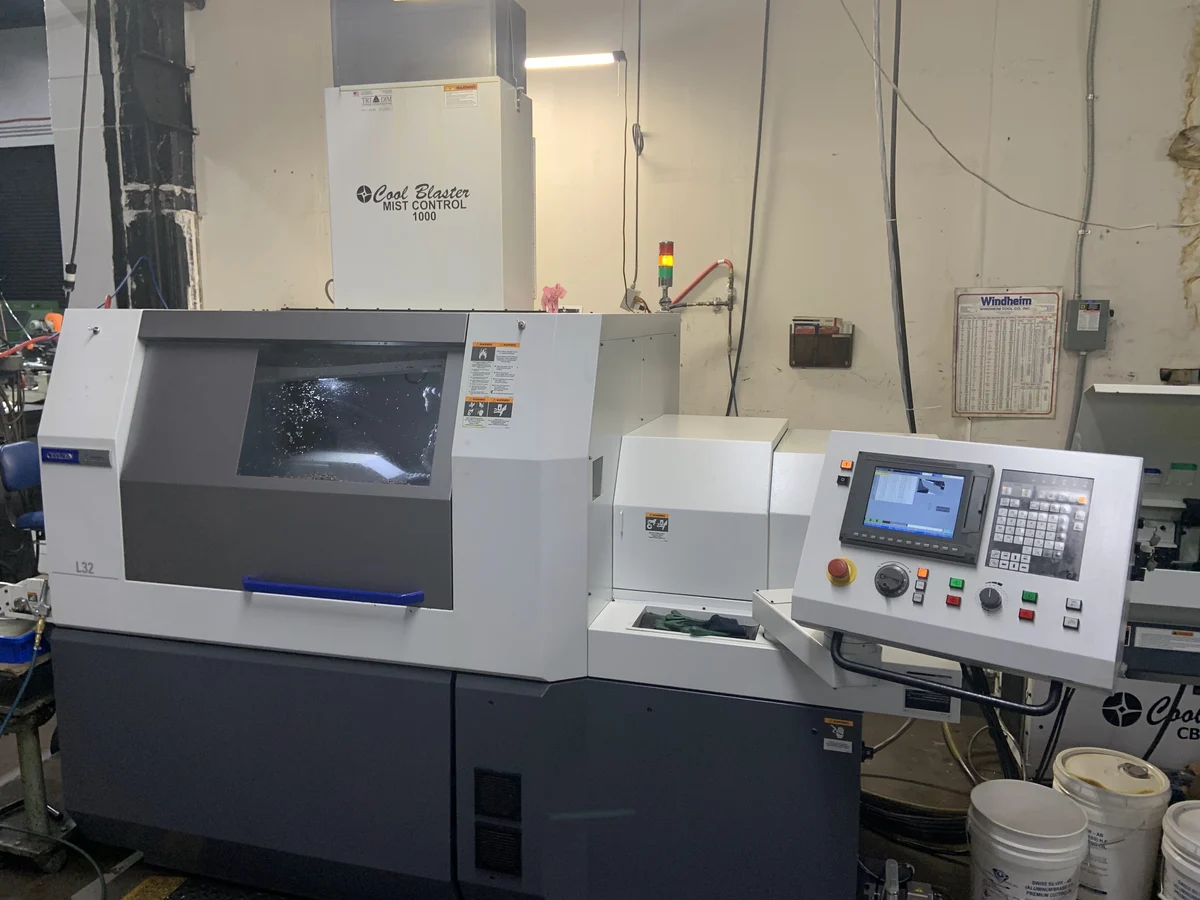

Citizen L32X CNC Swiss Turning Center
AUTOMATIC & SWISS TYPE SCREW MACHINES
Key features of the Citizen L32X include its robust construction, which ensures stability and durability during operation. The lathe boasts a powerful spindle and cutting tools, enabling it to handle a wide range of materials with precision and consistency. Additionally, the L32X offers versatile tooling options, quick changeovers, and multi-axis machining capabilities, enabling users to produce intricate and precise components with ease. Its user-friendly interface and advanced automation features further enhance productivity and minimize downtime, making it a preferred choice for manufacturers seeking high-quality and efficient machining solutions.
| Max Machining Length | 12.6" |
| Main Spindle Drilling Diameter | 1.26" |
| Max Spindle Speed | 8000 rpm |
| Back Spindle Speed | 8000 RPM |
| Spindle Hole Dia | 1.25" |
| Power | 7.5 hp |
| RPM | 8,000 RPM |
| Control | CNC (CINCOM) |
Citizen L32X CNC Swiss Turning Center
CAV32 Barloader
CB510 - 10 line HP unit
Bz Mistcollector
GSE1910 Cross Milling Spindle
GSE2010 Live spindle
ACW2020 Programming software
Adaptive Guide Bushing
32mm collets and guide bushings
Additional items bought
L32-U4051J-10 10mm small bar kit
L32-U4031J-25: 25mm small bar adapter
5505-000312: 4-position boring bar holder
CAV10 5/32: CAV Collet (5/32" material; 10 mm channel set)
CAV21 5/8: CAV Collet
CAV21 21/32: Collet (21/32" Material Size)
FC25NF: Bar Loader Collet (7/8")
L9222-1000: Spindle liner (1.032")
additional collets and bushings
- MOTOR: 5/10 HP
BACK SPINDLE:
- MAX. PROTRUSION LENGTH: 2.55"
- MAX. CHUCK DIAMETER: 1.26"
- MAX. DRILLING DIAMETER: 0.39"
- SPINDLE SPEED: 8,000 IPM
- MOTOR: 3/5 HP
GANG ROTARY TOOL:
- MAX. DRILLING DIAMETER: 0.31"
- SPINDLE SPEED: 6,000 IPM
- MOTOR: 2 HP
TOOL POST:
- MAX. DRILLING DIAMETER: 0.31"
- SPINDLE SPEED: 6,000 IPM
- MOTOR: 2 HP
BACK TOOL POST:
- MAX. DRILLING DIAMETER: 0.31"
- SPINDLE SPEED: 6,000 IPM
- MOTOR: 2 HP
