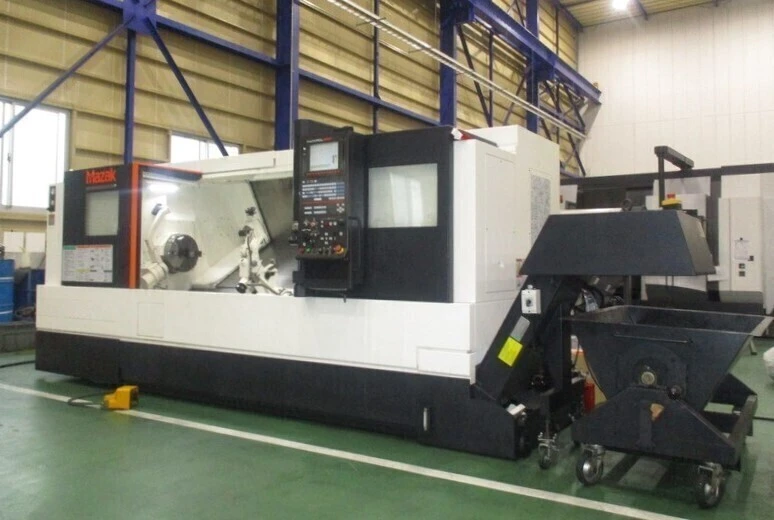

THIS 2017 QTS 350 HAS A SMART CONTROL, 12" HYDRAULIC CHUCK WITH 4" BAR CAPACITY, AND TAILSTOCK. AND STEADY REST.
Max. Swing
28.3"
718.82 mm
Max Turning Diameter
16.5"
419.1 mm
Spindle Bore/Max Bar Capacity
4.4"/ 4.0"
4.4"/ 4.0"
Z Travel
51.3"
1,303 mm
X Travel
9.375"
238.12 mm
Machining Length
48.5"
1,231.9 mm
Chuck Size
12"
304.8 mm
Chuck Type
Hydraullic
Hydraullic
Spindle Motor
40 hp
Spindle Speeds (RPM)
3300
3300
Spindle Bore
4.4 in
Max. Bar Capacity
4"
101.6 mm
Turret Tool Positions
12
12
Tailstock
Yes
Yes
Chip Conveyor
Yes
Yes
Control
CNC (MAZATROL SMART)
CNC (MAZATROL SMART)
Dimensions
150" X 75" X 75"
150" X 75" X 75"
Weight
15,200 LBS
15,200 LBS
MAZATROL SMART CONTROL
TAILSTOCK
CHIP CONVEYOR
STEADY REST
