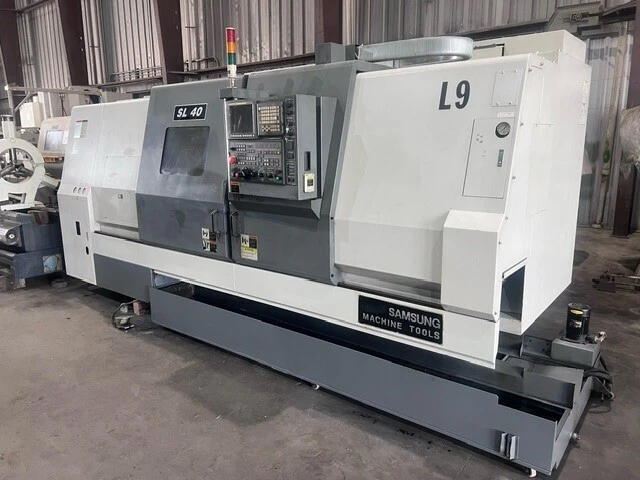

SAMSUNG SL 40/1500
CNC LATHES 2 AXIS
| Max. Swing | 26.8" |
| Max Turning Diameter | 19.7" |
| Spindle Bore/Max Bar Capacity | 5.2"/ 4.6" |
| Z Travel | 63.19" |
| X Travel | 11" |
| Machining Length | 63.2" |
| Chuck Size | 18" |
| Chuck Type | Hydraullic |
| Spindle Motor | 30 hp |
| Spindle Speeds (RPM) | 1800 |
| Spindle Bore | 5.2 in |
| Max. Bar Capacity | 4.6" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Control | CNC (FANUC 0i-TD) |
| Dimensions | 197” x 75” |
| Weight | 20,500 LBS |
FANUC 0I-TD CONTROL
PROGRAMMABLE HYDRAULIC TAILSTOCK (BODY & QUILL)
2 SPEED GEARED SPINDLE
18" HYDRAULIC CHUCK
26.8” SWING
60.2” CENTER DISTANCE
CHIP CONVEYOR
COOLANT TANK
18" HYDRAULIC 3-JAW CHUCK
2 SPEED GEARED SPINDLE
BOX WAY CONSTRUCTION
TOOL PRESETTER
- MISC. TOOLING AVAILABLE
- AVAILABLE MANUALS
INSTALLED 2014
UNDER POWER
