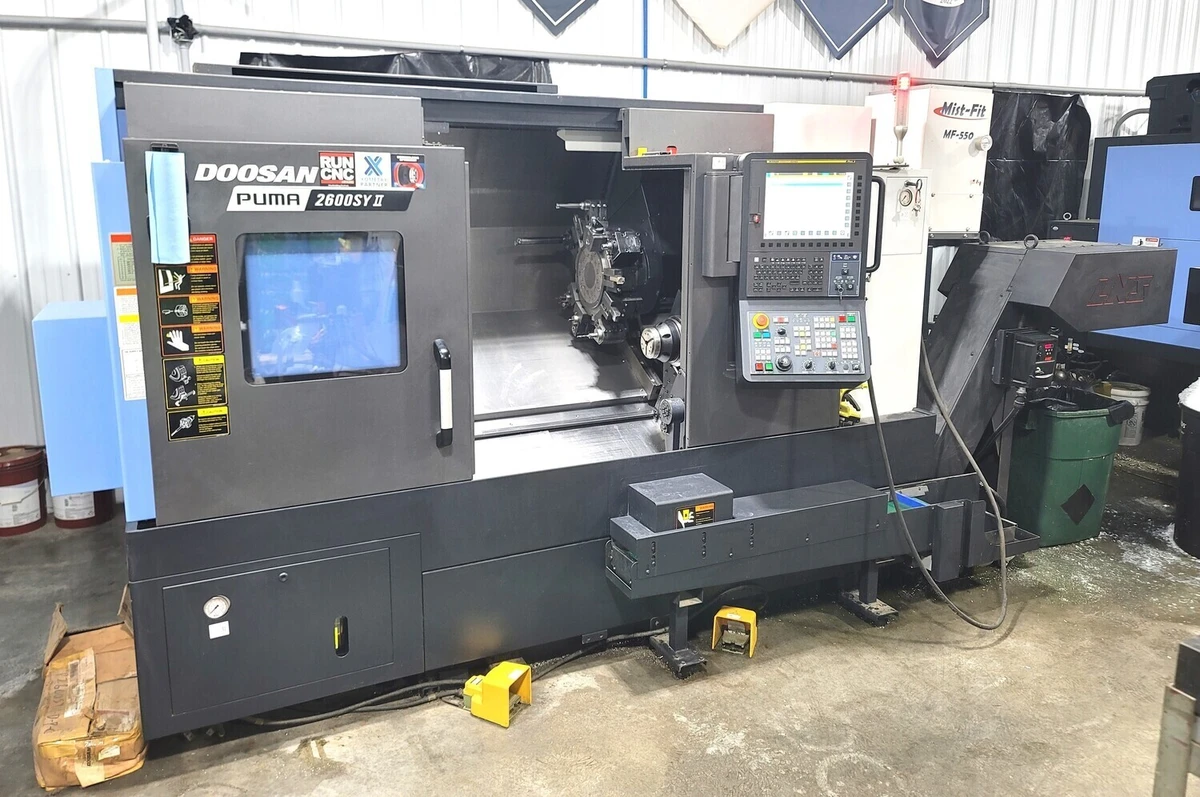

2021 DOOSAN PUMA 2600SY-II
Have one to sell?
ConditionUsed
1 available
2021 DOOSAN PUMA 2600SY-II HAS ONLY 246 CUT HOURS, DOOSAN/ FANUC CONTROL, 12" & 8" CHUCKS, COLLET CHUCKS, PARTS CATCHER HIGH-PRESSURE COOLANT, LNS CHIP CONVEYOR AND MORE.
DOOSAN-FANUC i SERIES CONTROL
Y-AXIS
LIVE MILLING
SUB SPINDLE
12", 3-JAW HYDRAULIC CHUCK FOR (MAIN)
8", 3-JAW HYDRAULIC CHUCK FOR (SUB)
QG-80 COLLET (MAIN)
QG-65 COLLET (SUB)
LOW-PRESSURE CHUCKING OPTION (MAIN & SUB)
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR
LNS CHIP CONVEYOR
MIST-FIT MIST COLLECTOR
HIGH-PRESSURE COOLANT
BOX GUIDE WAYS
TOOLING INCLUDED
(2) RADIAL LIVE TOOL HOLDERS
(4) AXIAL LIVE TOOL HOLDERS
STANDARD TOOL PACKAGE
** ORIGINAL OWNER
** AS OF MARCH, 2024 – CUTTING TIME: 246 HOURS
** MACHINE CUTTING STAINLESS STEEL, COPPER, ALUMINUM, ACETAL
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
2021 DOOSAN PUMA 2600SY-II HAS ONLY 246 CUT HOURS, DOOSAN/ FANUC CONTROL, 12" & 8" CHUCKS, COLLET CHUCKS, PARTS CATCHER HIGH-PRESSURE COOLANT, LNS CHIP CONVEYOR AND MORE.
Imperial
| Maximum Swing | 30.7" |
| Max Turning Diameter | 14.8" |
| Main Spindle Bore/Max Bar Capacity | 3.6"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 29.9" |
| X-Axis Travel (X1, X2, X3) | 10.2" |
| Z-Axis Travel (Z1, Z2, Z3) | 32.7" |
| Y-Axis Travel (Y1, Y2, Y3) | 4.1" (+/- 2.1") |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.6" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.5 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Type | BMT65 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| Number of Available Live Tool Holders | 24 |
DOOSAN-FANUC i SERIES CONTROL
Y-AXIS
LIVE MILLING
SUB SPINDLE
12", 3-JAW HYDRAULIC CHUCK FOR (MAIN)
8", 3-JAW HYDRAULIC CHUCK FOR (SUB)
QG-80 COLLET (MAIN)
QG-65 COLLET (SUB)
LOW-PRESSURE CHUCKING OPTION (MAIN & SUB)
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR
LNS CHIP CONVEYOR
MIST-FIT MIST COLLECTOR
HIGH-PRESSURE COOLANT
BOX GUIDE WAYS
TOOLING INCLUDED
(2) RADIAL LIVE TOOL HOLDERS
(4) AXIAL LIVE TOOL HOLDERS
STANDARD TOOL PACKAGE
** ORIGINAL OWNER
** AS OF MARCH, 2024 – CUTTING TIME: 246 HOURS
** MACHINE CUTTING STAINLESS STEEL, COPPER, ALUMINUM, ACETAL
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
