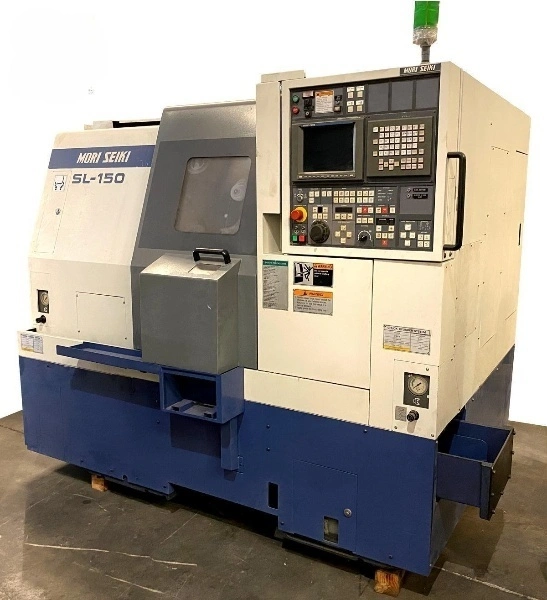

MORI SEIKI SL-150SMC MULTI-AXIS CNC TURNING CENTER

MORI SEIKI SL-150SMC MULTI-AXIS CNC TURNING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MORI SEIKI
Model:
SL 150SMC
Condition:
Good
Year:
1999
Stock #:
210518
Status:
For Sale

Description

MORI SEIKI SL-150SMC WITH A FANUC MSC 518 CONTROL, COLLETS CHUCKS ON BOTH SPINDLES, 12 STATION LIVE TOOL TURRET WITH TOOL HOLDERS, 2-STEP GEAR SPINDLE AND CHIP CONVEYOR.

Maximum Swing24.4"619.76 mm
Max Turning Diameter16.9"429.26 mm
Main Spindle Bore/Max Bar Capacity2.2" / 1.86"2.2" / 1.86"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide17.9"454.66 mm
Distance Between Spindles24.8"629.92 mm
X-Axis Travel (X1, X2, X3)9.19.1
Z-Axis Travel (Z1, Z2, Z3)20.420.4
C-Axis Indexing (1, 2)0.001°0.001°
W-Axis Travel Sub Spindle16.9 in
Main Spindle Chuck TypeColletCollet
Main Spindle Bore Diameter2.65"67.31 mm
Main Spindle Maximum Bar Work1.86"47.244 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)15/ 1115/ 11
Sub Spindle/2nd Spindle Bore Size2.22.2
Sub Spindle/2nd Spindle Chuck TypeColletCollet
Sub Spindle/2nd Spindle Speed5,000 RPM5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)15/ 1115/ 11
Rear ChuckNoNo
Rear Chuck TypeColletCollet
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 230003000
Turret Rotary Tool Horse Power 1, 23.53.5
B-Axis Travel16.916.9
Parts CatcherNoNo
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
ControlCNC (FANUC MSC-518)CNC (FANUC MSC-518)
Dimensions88" x 71" x 80" (120" WITH C/C)88" x 71" x 80" (120" WITH C/C)
Weight9500 LBS9500 LBS

EQUIPPED WITH:
FANUC MSC-518 CNC CONTROL
12-STATION LIVE TOOL TURRET WITH TOOL HOLDERS
COLLET CHUCK MAIN & SUB SPINDLE
2 STEP GEAR SPINDLE FOR POWERFUL TORQUE
CHIP PAN & CHIP CONVEYOR
COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
WORK LIGHT
