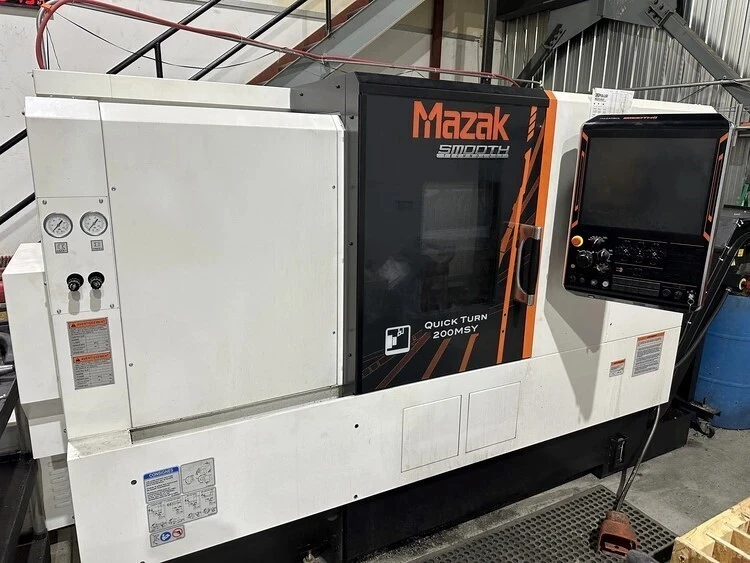

MAZAK QTN 200MSY
Have one to sell?
ConditionUsed
1 available
THIS 2021 QTN 200MSY HAS A SMOOTH CONTROL, LIVE TOOL, SUB SPINDLE, Y AXIS, 8" & 6" CHUCKS, LNS S-2 QUICK LOAD SERVO 80 BARFEEDER SYNCH TAPPING AND PATS CATCHER.
MAZATROL SMOOTHG CNC CONTROL W/ LCD SCREEN AND STANDARD SOFTWARE
12-POSITION VDI TURRET
AUTO CHUCK JAWS OPEN/CLOSE (1ST/2ND SPINDLE)
KITAGAWA B-208A6 W/ S-1552 CYL (2" CAP)
KITAGAWA B-206A5 W/ RNKP105-15 CLOSED CYLINDER (2ND SPINDLE)
STANDARD TOOLING PACKAGE:
(2) TURNING FORWARD
(1) TURNING REV
(1) FACING HOLDER
(1) CUT OFF HOLDER
(2) BORING BAR HOLDER (1.5" ID)
(1) BOING BAR SOCKET (1" ID X 1.5" OD)
(1) BORING BAR SOCKET (1.25" ID X 1.5" OD)
(1) DRILL SOCKET MT (#2 ID X 1.5" OD)
(1) TURNING HOLDER 1" X 1" X 6" (1ST AND 2ND PROCESS)
(1) BORING BAR HOLDER DIA 1" ID (1ST/2ND PROCESS)
(1) V-TYPE MILLING HOLDER II OFFSET 6K RPM
(2) HD H-TYPE MILLING HOLDER II 6K RPM
(1) MILLING DRILL COLLET (0.472" ID)
(1) MILLING DRILL COLLET (0.630" ID)
(1) HOOK SPANNER
Y-AXIS CONTROL
VELOCITY/FEED RATE CONTROL
TOOL PATH STORAGE
MAIN/SUB-SPINDLE SYNCHRONIZATION
RELOCATION DEVICE
COMPLETE COOLANT SYSTEM
CHUCK AIR BLAST
TOOL EYE
ABSOLUTE POSITIONING SYSTEM
COMPENSATION INPUT
HYDRAULIC PRESSURE INTERLOCK
& MORE
THIS 2021 QTN 200MSY HAS A SMOOTH CONTROL, LIVE TOOL, SUB SPINDLE, Y AXIS, 8" & 6" CHUCKS, LNS S-2 QUICK LOAD SERVO 80 BARFEEDER SYNCH TAPPING AND PATS CATCHER.
Imperial
| Maximum Swing | 26.6" |
| Max Turning Diameter | 14.76" |
| Main Spindle Bore/Max Bar Capacity | 2.99"/ 2.5" |
| Tail Stock/Sub Spindle | SUB |
| Maximum Cutting Length | 22.7" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 19.6 |
| Y-Axis Travel (Y1, Y2, Y3) | 4" |
| C-Axis Indexing (1, 2) | 0.0001 Deg Contouring/ 0.0001 Deg Contouring |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2.4 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 35 |
| Main & Sub Spindle Synchronization | Yes |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 15 |
| B-Axis Milling Spindle Speed | 4500 rpm |
| B-Axis Milling Spindle Horse Power | 7.0 |
| Bar Feed | No |
| Parts Catcher | No |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 826 |
| Rapid Traverse, Z-Axis | 1299 |
| Control | CNC (MAZATROL SMOOTH G) |
MAZATROL SMOOTHG CNC CONTROL W/ LCD SCREEN AND STANDARD SOFTWARE
12-POSITION VDI TURRET
AUTO CHUCK JAWS OPEN/CLOSE (1ST/2ND SPINDLE)
KITAGAWA B-208A6 W/ S-1552 CYL (2" CAP)
KITAGAWA B-206A5 W/ RNKP105-15 CLOSED CYLINDER (2ND SPINDLE)
STANDARD TOOLING PACKAGE:
(2) TURNING FORWARD
(1) TURNING REV
(1) FACING HOLDER
(1) CUT OFF HOLDER
(2) BORING BAR HOLDER (1.5" ID)
(1) BOING BAR SOCKET (1" ID X 1.5" OD)
(1) BORING BAR SOCKET (1.25" ID X 1.5" OD)
(1) DRILL SOCKET MT (#2 ID X 1.5" OD)
(1) TURNING HOLDER 1" X 1" X 6" (1ST AND 2ND PROCESS)
(1) BORING BAR HOLDER DIA 1" ID (1ST/2ND PROCESS)
(1) V-TYPE MILLING HOLDER II OFFSET 6K RPM
(2) HD H-TYPE MILLING HOLDER II 6K RPM
(1) MILLING DRILL COLLET (0.472" ID)
(1) MILLING DRILL COLLET (0.630" ID)
(1) HOOK SPANNER
Y-AXIS CONTROL
VELOCITY/FEED RATE CONTROL
TOOL PATH STORAGE
MAIN/SUB-SPINDLE SYNCHRONIZATION
RELOCATION DEVICE
COMPLETE COOLANT SYSTEM
CHUCK AIR BLAST
TOOL EYE
ABSOLUTE POSITIONING SYSTEM
COMPENSATION INPUT
HYDRAULIC PRESSURE INTERLOCK
& MORE
