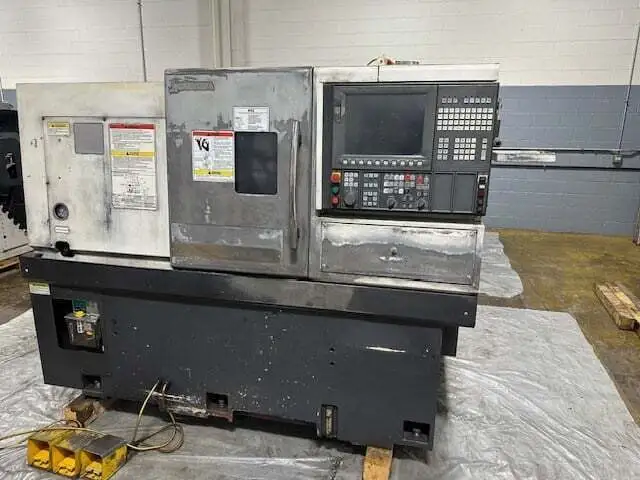

Used 2014 OKUMA GENOS L400 CNC UNIVERSAL TURNING CENTER | CNC LATHES 2 AXIS
Have one to sell?
ConditionUsed
1 available
$29,000.00 USD
OKUMA GENOS L400 CNC Universal Turning Center, 2014, CNC Lathes 2 Axis, used. Ideal for precision turning applications. Reliable, durable machinery suited for various industrial needs. Contact us for further details.
Year 2014
Mfg Okuma
Model GENOS L400
Swing Over Bed 20.47"
Turning Diameter, Shaft Diameter 15.3"
Machining Length 19.6"
Distance Between Centers 22"
Chuck Size 1, 2 10"
Spindle Nose 1, 2 A 2 - 8
Spindle Bore Diameter 1, 2 3.14"
Spindle Bar Capacity 1, 2 2.6
Spindle Speeds 1, 2 3000 RPM
Spindle Horsepower 1, 2 15 HP
X - Axis Travel 1, 2 8.6"
Z - Axis Travel 1, 2 20.4"
Rapid Traverse Rates X1, X2 788 IPM
Rapid Traverse Rates Z1, Z2 985 IPM
Turret Configuration 1, 2 12
Tailstock Quill Diameter 3.54"
Tailstock Taper MT 5
Tailstock Quill Travel 3.9"
Machine Weight 10,120 LBS.
CHIP CONVEYOR
TOOL SETTER
CHUCK GRASP CONFIRM
CUSTOM API
USE TOOL DISP
MACHINING MODE
OFFSET BASE FIX
VAR. LOST MOTION
SERVO NAVI L, RPD FD SPEED SET
WORK WEIGHT SET
HI-G CONTROL
NC TURRET
SERVO LINC NC
TAPE DATA IN/OUT
TURRET POS. COMP
TOOL LIFE MGMT
TOOL WER COMP
I/M SWITCH
CYCLE TIME CALC.
CYCLE TIME CHECK
CYCLE TIME R.NEW
LOAD MONITOR
THERMAL COMP L2
MAC MAN
SPINDLE ORIENT
OSP-P300L-R CNC CONTROL
10" HYDRAULIC CHUCK
OKUMA GENOS L400 CNC Universal Turning Center, 2014, CNC Lathes 2 Axis, used. Ideal for precision turning applications. Reliable, durable machinery suited for various industrial needs. Contact us for further details.
Imperial
| Max. Swing | 20.47" |
| Max Turning Diameter | 15.3" |
| Z Travel | 20.4" |
| X Travel | 8.6" |
| TRAVEL Z AXIS TURRET 1 / TURRET 2 | 985 IPM |
| TRAVEL X AXIS TURRET 1 / TURRET 2 | 788 IPM |
| Machining Length | 19.6" |
| Distance Between Centers | 22 |
| Max Shaft Diameter | 15.3" |
| Chuck Size | 10" |
| Chuck Type | Hydraullic |
| Spindle Motor | 15 hp |
| Spindle Speeds (RPM) | 3000 |
| Spindle Bore/Bar Capacity | 3.14 in |
| Max. Bar Capacity | 2.6" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Dimensions | 140" x 71" x 74" |
| Weight | 10,120 |
Year 2014
Mfg Okuma
Model GENOS L400
Swing Over Bed 20.47"
Turning Diameter, Shaft Diameter 15.3"
Machining Length 19.6"
Distance Between Centers 22"
Chuck Size 1, 2 10"
Spindle Nose 1, 2 A 2 - 8
Spindle Bore Diameter 1, 2 3.14"
Spindle Bar Capacity 1, 2 2.6
Spindle Speeds 1, 2 3000 RPM
Spindle Horsepower 1, 2 15 HP
X - Axis Travel 1, 2 8.6"
Z - Axis Travel 1, 2 20.4"
Rapid Traverse Rates X1, X2 788 IPM
Rapid Traverse Rates Z1, Z2 985 IPM
Turret Configuration 1, 2 12
Tailstock Quill Diameter 3.54"
Tailstock Taper MT 5
Tailstock Quill Travel 3.9"
Machine Weight 10,120 LBS.
CHIP CONVEYOR
TOOL SETTER
CHUCK GRASP CONFIRM
CUSTOM API
USE TOOL DISP
MACHINING MODE
OFFSET BASE FIX
VAR. LOST MOTION
SERVO NAVI L, RPD FD SPEED SET
WORK WEIGHT SET
HI-G CONTROL
NC TURRET
SERVO LINC NC
TAPE DATA IN/OUT
TURRET POS. COMP
TOOL LIFE MGMT
TOOL WER COMP
I/M SWITCH
CYCLE TIME CALC.
CYCLE TIME CHECK
CYCLE TIME R.NEW
LOAD MONITOR
THERMAL COMP L2
MAC MAN
SPINDLE ORIENT
OSP-P300L-R CNC CONTROL
10" HYDRAULIC CHUCK
