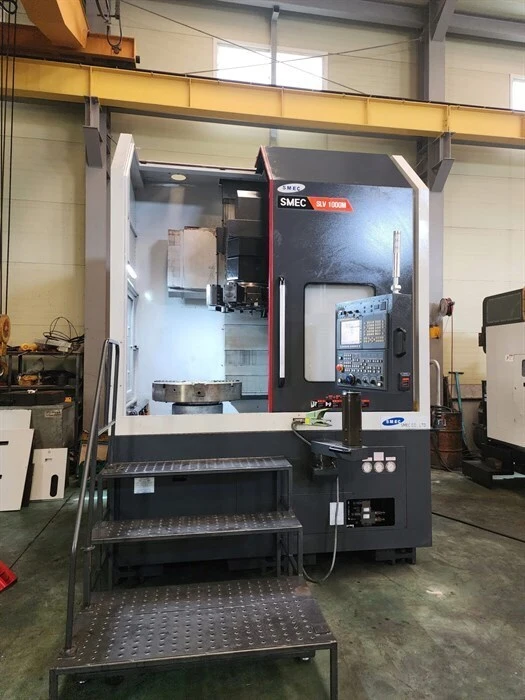

2018 SAMSUNG SMEC SLV 1000M CNC VERTICAL TURNING CENTER W/MILLING
Have one to sell?
ConditionUsed
1 available
2018 SAMSUNG SMEC SLV 1000M CNC VERTICAL TURNING CENTER W/MILLING HAS A32" 3 JAW HYDRAULIC COMBINATION 4 JAW CHUCK, CHUCK CLAMP CONFIRMATION, TOOL PRESETTER AND CHIP CONVEYOR.
32" 3 JAW HYDRAULIC COMBINATION 4 JAW CHUCK
CHIP CONVEYOR
CHUCK CLAMP CONFIRMATION
CHUCK PRESSURE SWITCH
TOOL PRESETTER
(2) O.D. ROTARY HEADS
(2) I.D. ROTARY HEADS
2018 SAMSUNG SMEC SLV 1000M CNC VERTICAL TURNING CENTER W/MILLING HAS A32" 3 JAW HYDRAULIC COMBINATION 4 JAW CHUCK, CHUCK CLAMP CONFIRMATION, TOOL PRESETTER AND CHIP CONVEYOR.
Imperial
| Table Dia | 32" |
| Maximum Swing | 43.3" |
| Maximum Turning Diameter | 32.5" |
| Maximum Turning Height | 37.0 |
| Vertical Travel of Ram, Z-Axis | 37.5" |
| Horizontal Railhead Travel, X-Axis | 21.2 |
| Chuck size | 32 |
| Main Table Motor | 73.8 HP |
| Table RPM | 800 RPM |
| Live Spindle Motor | 3000/ 14.7 HP |
| Live Spindle Speed, 2-Ranges | 2 |
| Automatic Tool Changer | 12 |
| Rapid Traverse X/Z | 788788 |
| Feed Rate "C" Axis | 0.001 deg |
| Control | CNC |
| Weight | 37,840 LBS. |
32" 3 JAW HYDRAULIC COMBINATION 4 JAW CHUCK
CHIP CONVEYOR
CHUCK CLAMP CONFIRMATION
CHUCK PRESSURE SWITCH
TOOL PRESETTER
(2) O.D. ROTARY HEADS
(2) I.D. ROTARY HEADS
