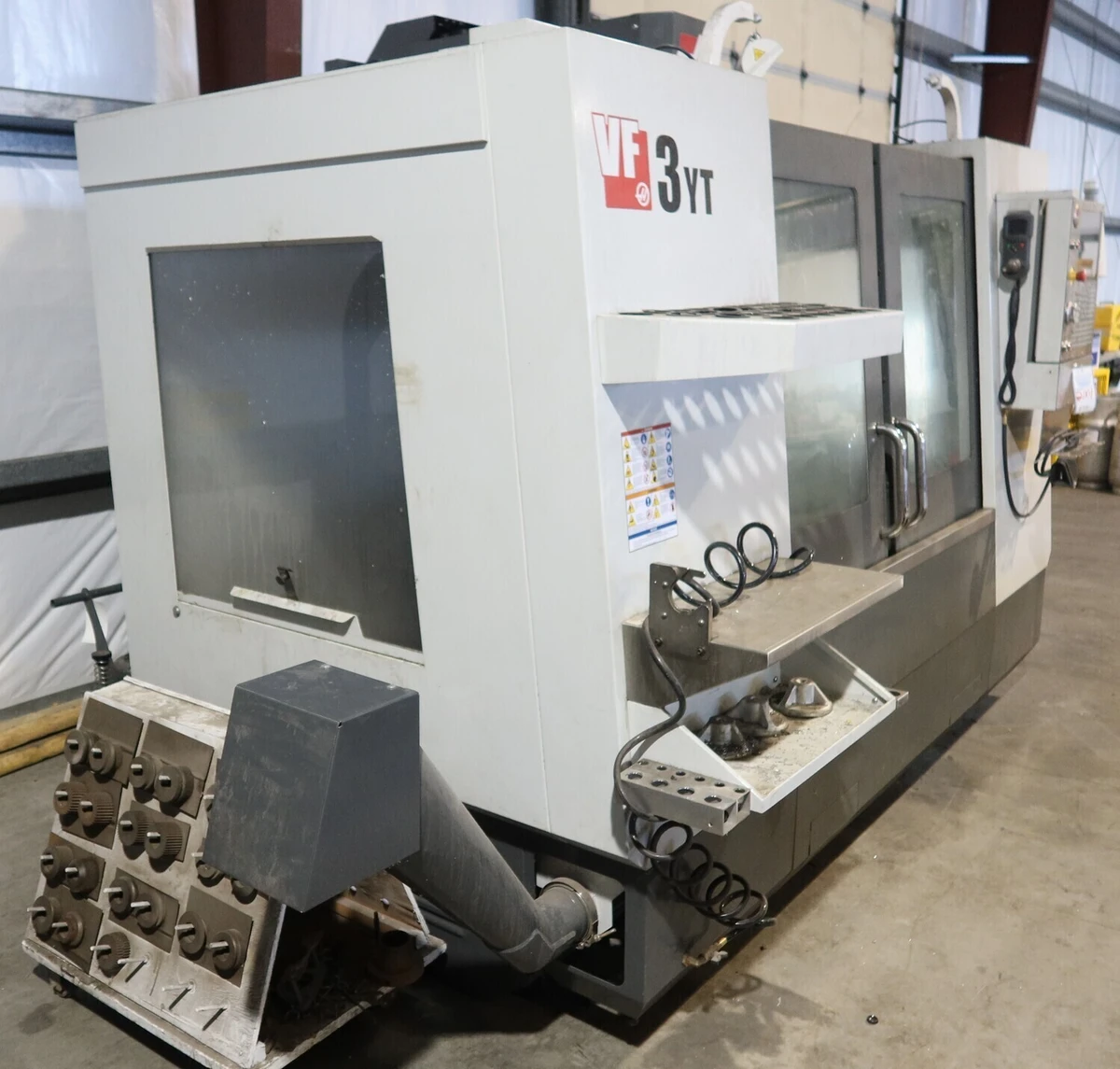

HAAS VF3-YT CNC 4-AXIS PRECISION VERTICAL MACHINING CENTER, NEW 2015
Have one to sell?
ConditionUsed
1 available
HAAS VF3-YT CNC 4-AXIS PRECISION VERTICAL MACHINING CENTER, NEW 2015 COMES WITH A HAAS CNC CONTROL, 10" 4TH AXIS ROTARY TABLE WITH 3-JAW CHUCK, PROGRAMMABLE COOLANT NOZZLE, COOLANT THRU SPINDLE, CHIP AUGER, HIGH-INTENSITY LIGHTING, REMOTE JOG HANDLE, RIGID TAPPING AND RENISHAW INTUITIVE PROBING
T-Slot width 5/8"
T-Slot center distance 3.15"
Number of Std T-Slots 5
Max. weight on the table (evenly distributed) 3500 lbs
Max torque 90ft-lb @ 2000 RPM
Drive system inline direct-drive
Max. torque w/opt gearbox 250ft-lb @ 450 RPM
Bearing lubrication air/oil injection
Cooling liquid-cooled
Feed rates:
Axis Motors:
Max. thrust X & Y 2550 lb
Max. thrust Z 4200 lb
Max. tool diameter (full) 3.5"
Max tool weight 12 lb
Tool to tool (avg) 4.2 sec.
Chip to chip (avg) 4.2 sec
General:
Air required 4 Scfm,100 PSI
HAAS CNC CONTROL
10" 4TH AXIS ROTARY TABLE WITH 3-JAW CHUCK
PROGRAMMABLE COOLANT NOZZLE
COOLANT THRU SPINDLE
CHIP AUGER
HIGH-INTENSITY LIGHTING
REMOTE JOG HANDLE
RIGID TAPPING
RENISHAW INTUITIVE PROBING
HAAS VF3-YT CNC 4-AXIS PRECISION VERTICAL MACHINING CENTER, NEW 2015 COMES WITH A HAAS CNC CONTROL, 10" 4TH AXIS ROTARY TABLE WITH 3-JAW CHUCK, PROGRAMMABLE COOLANT NOZZLE, COOLANT THRU SPINDLE, CHIP AUGER, HIGH-INTENSITY LIGHTING, REMOTE JOG HANDLE, RIGID TAPPING AND RENISHAW INTUITIVE PROBING
Imperial
| X Travel | 40" |
| Y Travel | 26" |
| Z Travel | 25" |
| Spindle Speed | 8100 rpm |
| Tool Capacity (ATC) | 20 |
| Table Size (W) | 25" |
| Table Size (L) | 54" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 4.5" - 29.5" |
| Coolant Thru | Yes |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 710 IPM/ 710 IPM/ 710 IPM |
| Control | CNC (HAAS CNC CONTROL) |
T-Slot width 5/8"
T-Slot center distance 3.15"
Number of Std T-Slots 5
Max. weight on the table (evenly distributed) 3500 lbs
Max torque 90ft-lb @ 2000 RPM
Drive system inline direct-drive
Max. torque w/opt gearbox 250ft-lb @ 450 RPM
Bearing lubrication air/oil injection
Cooling liquid-cooled
Feed rates:
Axis Motors:
Max. thrust X & Y 2550 lb
Max. thrust Z 4200 lb
Max. tool diameter (full) 3.5"
Max tool weight 12 lb
Tool to tool (avg) 4.2 sec.
Chip to chip (avg) 4.2 sec
General:
Air required 4 Scfm,100 PSI
HAAS CNC CONTROL
10" 4TH AXIS ROTARY TABLE WITH 3-JAW CHUCK
PROGRAMMABLE COOLANT NOZZLE
COOLANT THRU SPINDLE
CHIP AUGER
HIGH-INTENSITY LIGHTING
REMOTE JOG HANDLE
RIGID TAPPING
RENISHAW INTUITIVE PROBING
