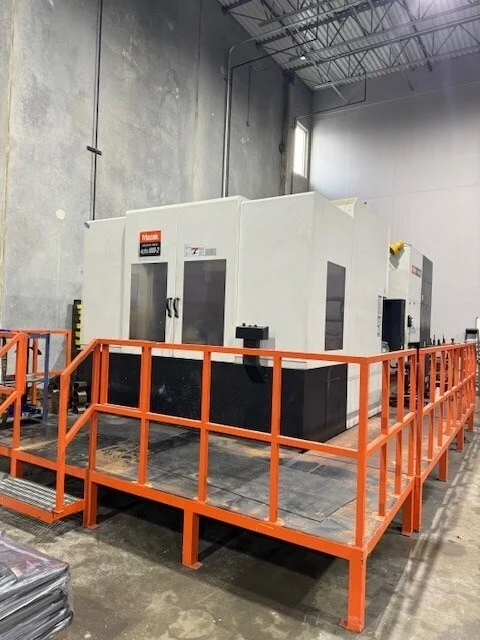

MAZAK HCN 8800-II /FULL 4TH AXIS
Have one to sell?
ConditionUsed
1 available
2008 HCN 8800 HAS (2) 31.5" PALLETS, MATRIX 2 CONTROL, FULL B AXIS, CAT 50/ HI-TORQUE CAT 50 SPINDLE, PART & TOOL PROBES AND 213 PSI COOLANT THRU SPINDLE.
Tool Diameter 4.92", 9.84"
Tool Length 24.8"
Tool Weight 66 LBS.
MATRIX NEXUS CNC COLOR CONTROL
AUTO TOOL LENGTH MEASUREMENT & BREAKAGE DETECTION
ADDITIONAL WORK PIECE COORDINATES
G54.1
SYNCH TAPPING
G00 SLOPE CONSTANT
INCH/METRIC
VARIABLE 600 SETS
AUTO POWER OFF
CHIP CONVEYOR
COOLERS FOR BALLSCREWS XYZ
N/C ROTARY TABLE (360,000 POSITIONS)
CT-5TH AXIS,
PITCH ERROR COMP.
EIA HELICAL TAP, EIA PATTERN CYCLE, TILTED WORK PLANE
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
INCH/ METRIC
PREP FOR MMSB RENISHAW PROBE
NIAGARA FLOOD COOLANT
SHAPE COMP, THREAD, INVERSE TIME
POLAR COORDINATE INPUT
COMPARISON STOP
SPINDLE CHILLER AND HYDRAULIC UNIT
USB I/F (2-PORT), CARDBUS I/F (2-PORT), LAN PORT, ADD EIA/ISO
2008 HCN 8800 HAS (2) 31.5" PALLETS, MATRIX 2 CONTROL, FULL B AXIS, CAT 50/ HI-TORQUE CAT 50 SPINDLE, PART & TOOL PROBES AND 213 PSI COOLANT THRU SPINDLE.
Imperial
| X-AXIS TRAVEL | 55.11" |
| Y-AXIS TRAVEL | 47.24" |
| Z-AXIS TRAVEL | 52.16" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE DRIVE MOTOR | 50 hp |
| SPINDLE SPEED | 8000 rpm |
| MAX WORKPIECE SIZE | 4850 LBS |
| RAPID TRAVERSE | 2362 |
| TOOL CAPACITY (ATC) | 120 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 31.5" x 31.5" |
| PALLET SIZE (W) | 31.5" |
| PALLET SIZE (L) | 31.5" |
| PALLET LOAD CAPACITY | 4850 lb |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 0 psi |
| PALLETECH SYSTEM NUMBER OF PALLETS | 2 |
| CHIP CONVEYOR | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Weight | 66,138 LBS |
Tool Diameter 4.92", 9.84"
Tool Length 24.8"
Tool Weight 66 LBS.
MATRIX NEXUS CNC COLOR CONTROL
AUTO TOOL LENGTH MEASUREMENT & BREAKAGE DETECTION
ADDITIONAL WORK PIECE COORDINATES
G54.1
SYNCH TAPPING
G00 SLOPE CONSTANT
INCH/METRIC
VARIABLE 600 SETS
AUTO POWER OFF
CHIP CONVEYOR
COOLERS FOR BALLSCREWS XYZ
N/C ROTARY TABLE (360,000 POSITIONS)
CT-5TH AXIS,
PITCH ERROR COMP.
EIA HELICAL TAP, EIA PATTERN CYCLE, TILTED WORK PLANE
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
INCH/ METRIC
PREP FOR MMSB RENISHAW PROBE
NIAGARA FLOOD COOLANT
SHAPE COMP, THREAD, INVERSE TIME
POLAR COORDINATE INPUT
COMPARISON STOP
SPINDLE CHILLER AND HYDRAULIC UNIT
USB I/F (2-PORT), CARDBUS I/F (2-PORT), LAN PORT, ADD EIA/ISO
