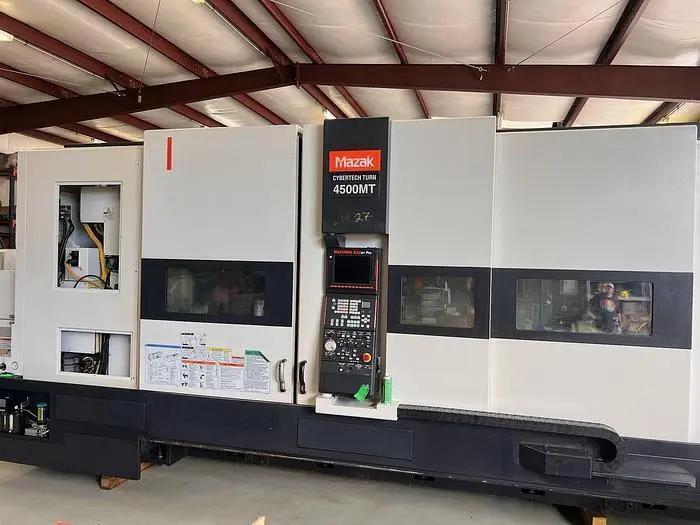

2007 Cybertech 4500MT Multi-Tasking CNC Lathe w/ 10.5" Bore
Have one to sell?
ConditionUsed
1 available
MAZATROL PC-FUSION-CNC 640MT PRO CONTROL N-EIA/ISO OPTION PACKAGE
MAZATROL AND EIA/ISO PROGRAMMING LANGUAGE
12.1-INCH COLOR TFT DISPLAY
DATA INPUT/OUTPUT: I C MEMORY CARD INTERFACE (DOWNLOAD/SAVE ONLY)
RS-232 C
3.5" FLOPPY DISC DRIVE
PCMCIA I/F (2-SLOT, CARD BUS)
PROGRAM REGISTRATION (HD: 1GB FOR DRIP FEED EIA/ISO)
(1MB FOR MAZATROL/EIA)
VARIABLE FEED RATE CONTROL (MAZATROL)
TOOL LIFE MONITORING (MAZATROL)
TOOL WEAR COMPENSATION (MAZATROL)
TOOL EYE MEASUREMENT FOR UPPER AND LOWER TURRET (MAZATROL)
MAZAK TAPPING TORNADO (MAZATROL)
8 FIGURE PROGRAM NUMBER (EIA)
48 ALPHANUMERIC CHARACTERS FOR THE PROGRAM NAME (MAZATROL)
BARRIER PROTECTION (SET VIA PARAMETERS)
BACKGROUND TOOL PATH CHECK
MACHINING NAVI-MONITOR – PREDICTION/MONITOR/RESULTS
SMW BB-N-600-275-3 BIG BORE MANUAL 3 JAW CHUCK WITH 8" BORE
12.1″ COLOR LCD
MILLING SPINDLE SYNCHRONOUS TAPPING
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
ROTARY-TOOL SPINDLE SPEED 3000 RPM
PROGRAMMABLE TAILSTOCK
SPINDLE BORE 12.5"
HINGE-TYPE CHIP CONVEYOR
MULTITAP TRANSFORMER
TOOL EYE (AUTOMATIC)
C-AXIS 0.001 DEGREE INCR.
HIGH POWER COOLANT 213 PSI/ 2.5 GPM
PREP FOR REAR CHUCK & CYL & SPIN JOG BUTTON
RE-THREADING THREAD POINT-START COMP
Imperial
| Maximum Swing | 33.88" |
| Max Turning Diameter | 31.88" |
| Main Spindle Bore/Max Bar Capacity | 10.5 |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Swing Over Cross Slide | 27.5" |
| Distance Between Centers | 120" |
| X-Axis Travel (X1, X2, X3) | 21.375 |
| Z-Axis Travel (Z1, Z2, Z3) | 123.2"/ 100.4" |
| C-Axis Indexing (1, 2) | 0.001 DEG. (360,000) |
| Main Spindle Chuck Size | 24" |
| Main Spindle Chuck Type | Air |
| Main Spindle Bore Diameter | 10.5" |
| Main Spindle Speed | 1,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50 |
| Main & Sub Spindle Synchronization | Yes |
| Rear Chuck Prep | Yes |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 3000 |
| Turret Rotary Tool Horse Power 1, 2 | 15 |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Rapid Traverse, X-Axis | 945 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (MAZATROL FUSION 640 MT PRO) |
| Dimensions | 283.4" x 110.3" x 98" |
| Weight | 38,140 LBS. |
MAZATROL PC-FUSION-CNC 640MT PRO CONTROL N-EIA/ISO OPTION PACKAGE
MAZATROL AND EIA/ISO PROGRAMMING LANGUAGE
12.1-INCH COLOR TFT DISPLAY
DATA INPUT/OUTPUT: I C MEMORY CARD INTERFACE (DOWNLOAD/SAVE ONLY)
RS-232 C
3.5" FLOPPY DISC DRIVE
PCMCIA I/F (2-SLOT, CARD BUS)
PROGRAM REGISTRATION (HD: 1GB FOR DRIP FEED EIA/ISO)
(1MB FOR MAZATROL/EIA)
VARIABLE FEED RATE CONTROL (MAZATROL)
TOOL LIFE MONITORING (MAZATROL)
TOOL WEAR COMPENSATION (MAZATROL)
TOOL EYE MEASUREMENT FOR UPPER AND LOWER TURRET (MAZATROL)
MAZAK TAPPING TORNADO (MAZATROL)
8 FIGURE PROGRAM NUMBER (EIA)
48 ALPHANUMERIC CHARACTERS FOR THE PROGRAM NAME (MAZATROL)
BARRIER PROTECTION (SET VIA PARAMETERS)
BACKGROUND TOOL PATH CHECK
MACHINING NAVI-MONITOR – PREDICTION/MONITOR/RESULTS
SMW BB-N-600-275-3 BIG BORE MANUAL 3 JAW CHUCK WITH 8" BORE
12.1″ COLOR LCD
MILLING SPINDLE SYNCHRONOUS TAPPING
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
ROTARY-TOOL SPINDLE SPEED 3000 RPM
PROGRAMMABLE TAILSTOCK
SPINDLE BORE 12.5"
HINGE-TYPE CHIP CONVEYOR
MULTITAP TRANSFORMER
TOOL EYE (AUTOMATIC)
C-AXIS 0.001 DEGREE INCR.
HIGH POWER COOLANT 213 PSI/ 2.5 GPM
PREP FOR REAR CHUCK & CYL & SPIN JOG BUTTON
RE-THREADING THREAD POINT-START COMP
