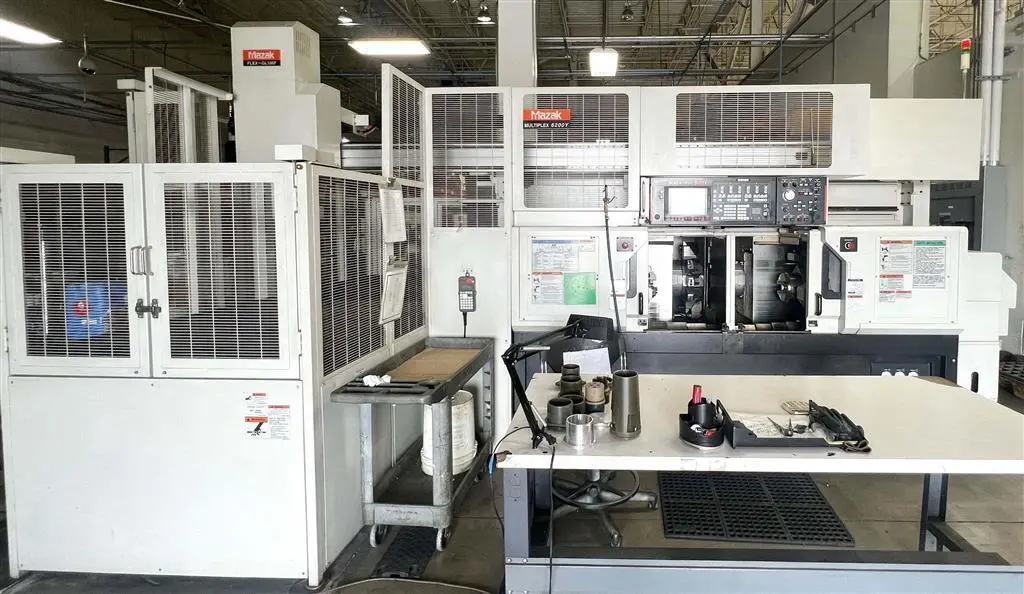

2008 Mazak Multiplex 6200Y CNC Lathe w/ Gantry Loader

2008 Mazak Multiplex 6200Y CNC Lathe w/ Gantry Loader

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
MULTIPLEX 6200Y W/GANTRY
Year:
2008
Stock #:
210543
Status:
For Sale
Maximum Swing12.5"317.5 mm
Max Turning Diameter10.24"260.1 mm
Main Spindle Bore/Max Bar Capacity2.99/2.52.99/2.5
Tail Stock/Sub SpindleSUBSUB
Distance Between Centers46.85"1,190 mm
X-Axis Travel (X1, X2, X3)9.069.06
Z-Axis Travel (Z1, Z2, Z3)17.25"/19.3717.25"/19.37
Y-Axis Travel (Y1, Y2, Y3)+/- 2.00+/- 2.00
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Number of Turrets22
Turret Tool Positions 1, 21212
Turret TypeMODIFIED VDIMODIFIED VDI
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 255
Chip ConveyorYesYes
Tool Eye Measurement Upper TurretYesYes
Tool Eye Measurement Lower TurretYesYes
Coolant Thru Milling HeadYesYes
ControlCNC (MAZAK MAZATROL 640T)CNC (MAZAK MAZATROL 640T)
Weight18,48018,480

Factory Specifications Include:
2.0" Bar
8" Chuck
47" Distance Between Centers
13" Swing Over Bed
5,000 RPM
20 HP
Sub-Spindle
C/Y-Axis
(2) 12-Tool Turrets

Control Specifications Include:
Mazatrol 640T Control

Mazak Flex GL-100F Gantry Loader with D-3 Hand
Parts Conveyor
Tool Presetter
Air Blast Thru-Spindle Head
High Pressure Coolant
Includes Tool Holders in Turret
Concept 2000 Chip Conveyor
