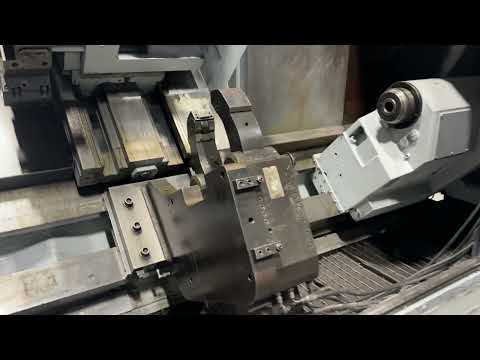

2011 MORI SEIKI SL-403C/2000
Have one to sell?
ConditionUsed
1 available
THIS MORI SEIKI SL-403C/ 2000 HAS A MSX-500IV CNC CONTROL, TAILSTOCK, SMW HYDRAULIC STEADY REST, COOLJET COOLANT SYSTEM, CHIP CONVEYOR/COOLANT TANK & PUMP.
RAPID TRAVERSE (X/ Z) 787/ 945 IPM
SPINDLE NOSE A2-15
MSX-500IV CNC CONTROL
TAILSTOCK
SMW HYDRAULIC STEADY REST (12" CAPACITY)
COOLJET COOLANT SYSTEM
CHIP CONVEYOR/COOLANT TANK & PUMP
THIS MORI SEIKI SL-403C/ 2000 HAS A MSX-500IV CNC CONTROL, TAILSTOCK, SMW HYDRAULIC STEADY REST, COOLJET COOLANT SYSTEM, CHIP CONVEYOR/COOLANT TANK & PUMP.
Imperial
| Max. Swing | 36.8" |
| Max Turning Diameter | 81.4" |
| Spindle Bore/Max Bar Capacity | 6.5" |
| Z Travel | 86.4" |
| X Travel | 13.6" |
| Machining Length | 81.4" |
| Distance Between Centers | 91.0 |
| Chuck Size | 21" |
| Chuck Type | Hydraullic |
| Spindle Motor | 50 hp |
| Spindle Speeds (RPM) | 1500 |
| Max. Bar Capacity | 6.5" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Steady Rest | Yes |
| Control | CNC (MSX-500IV) |
| Dimensions | 260" x 125" x 101" |
| Weight | 31,000 LBS. |
RAPID TRAVERSE (X/ Z) 787/ 945 IPM
SPINDLE NOSE A2-15
MSX-500IV CNC CONTROL
TAILSTOCK
SMW HYDRAULIC STEADY REST (12" CAPACITY)
COOLJET COOLANT SYSTEM
CHIP CONVEYOR/COOLANT TANK & PUMP
