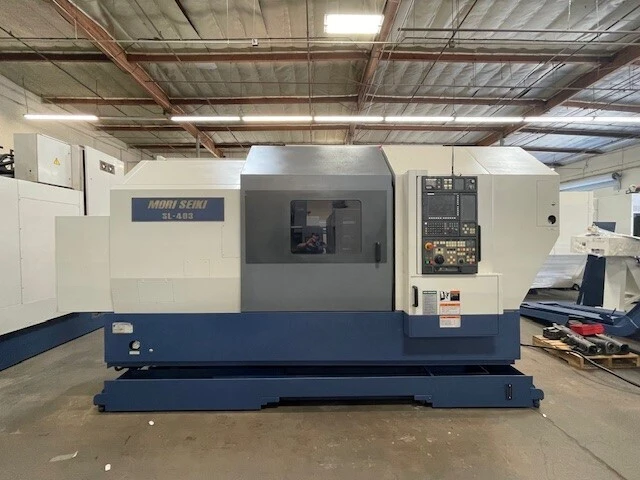

MORI SEIKI SL-403CMC/ 800

Name: QUICK MACHINERY SALES.COM INC.
Address: 14770 North 78th Way, Ste. B, Scottsdale, AZ, 85260, US
Telephone: 480-423-9045

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

CNC LATHES MULTI AXIS

Manufacturer:

Model:

SL-403CMC/ 800

Year:

2001

Stock #:

210547

Status:

For Sale

THIS MORI SEIKI SL-403CMC/ 800 HAS AN 18" CHUCK, 7.3" HOLE THRU SPINDLE, CHIP CONVEYOR AND TAILSTOCK

ImperialMetric

Maximum Swing	28"	711.2 mm
Max Turning Diameter	25.5"	647.7 mm
Main Spindle Bore/Max Bar Capacity	7.3"	7.3"
Tail Stock/Sub Spindle	TAILSTOCK	TAILSTOCK
X-Axis Travel (X1, X2, X3)	13.6"	13.6"
Z-Axis Travel (Z1, Z2, Z3)	35.4"	35.4"
Main Spindle Chuck Size	18"	457.2 mm
Main Spindle Bore Diameter	7.3"	185.42 mm
Main Spindle Speed	1,500 RPM	1,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)	50/ 40	50/ 40
Turret Rotary Tool Spindle Speed 1, 2	3000	3000
Chip Conveyor	Yes	Yes
Rapid Traverse, X-Axis	787.4	787.4
Rapid Traverse, Z-Axis	944.9	944.9
Control	CNC (Mori Seiki MSX-501 III)	CNC (Mori Seiki MSX-501 III)

MSX-501III W/ MAPPS (FANUC) CONTROL
CHIP CONVEYOR
TAIL STOCK
