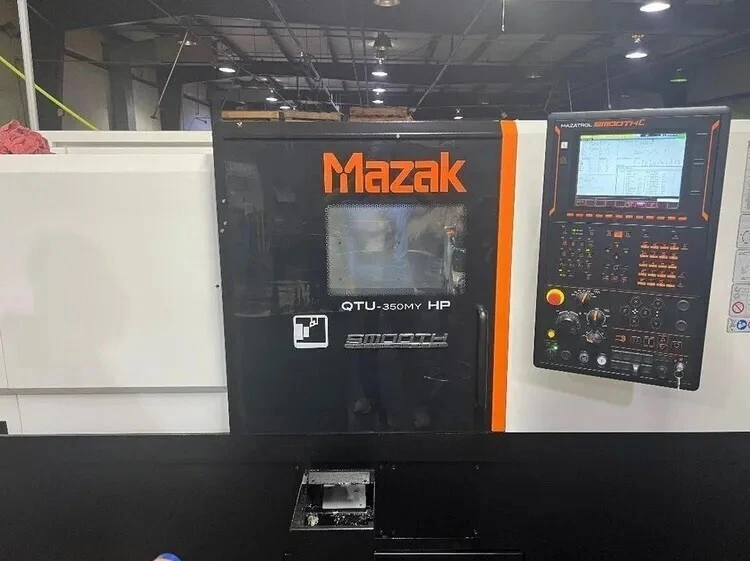

2019 MAZAK QTU 350MY
Have one to sell?
ConditionUsed
1 available
THE QUICK TURN 350MY CNC TURNING CENTER WITH MULTI-TASKING CAPABILITY BRINGS TOGETHER ADVANCED TECHNOLOGY, PRODUCTIVITY, AND VALUE TO DELIVER EXCEPTIONAL PERFORMANCE FOR SHOPS LARGE AND SMALL. AS AN (MY) CONFIGURATION, THE MACHINE FEATURES MILLING CAPABILITY AND Y-AXIS FUNCTIONALITY ALONG WITH A STANDARD THROUGH-HOLE CHUCK PACKAGE, AND INTEGRAL TURNING SPINDLE MOTOR TO PROCESS A WIDE RANGE OF MEDIUM OR LARGER-DIAMETER PARTS IN A SINGLE SETUP.
MAZATROL SMOOTH C CNC
LIVE TOOL
Y-AXIS
TOOL PRESETTER
TAILSTOCK
CHIP CONVEYOR
3 LIVE HOLDERS
4 TRUSTY COOK SPINDLE LINERS
EXTRA 1.5" I.D. HOLDERS
THE QUICK TURN 350MY CNC TURNING CENTER WITH MULTI-TASKING CAPABILITY BRINGS TOGETHER ADVANCED TECHNOLOGY, PRODUCTIVITY, AND VALUE TO DELIVER EXCEPTIONAL PERFORMANCE FOR SHOPS LARGE AND SMALL. AS AN (MY) CONFIGURATION, THE MACHINE FEATURES MILLING CAPABILITY AND Y-AXIS FUNCTIONALITY ALONG WITH A STANDARD THROUGH-HOLE CHUCK PACKAGE, AND INTEGRAL TURNING SPINDLE MOTOR TO PROCESS A WIDE RANGE OF MEDIUM OR LARGER-DIAMETER PARTS IN A SINGLE SETUP.
Imperial
| Maximum Swing | 29.49" |
| Max Turning Diameter | 16.54" |
| Main Spindle Bore/Max Bar Capacity | 3.56"/ 3.0" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Cutting Length | 23.8" |
| X-Axis Travel (X1, X2, X3) | 10.13" |
| Z-Axis Travel (Z1, Z2, Z3) | 26.38" |
| Y-Axis Travel (Y1, Y2, Y3) | 6" |
| W-Axis Travel Sub Spindle | 25.5 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.56" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40.0 HP / 30 kw |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Chip Conveyor | Yes |
| Control | CNC |
MAZATROL SMOOTH C CNC
LIVE TOOL
Y-AXIS
TOOL PRESETTER
TAILSTOCK
CHIP CONVEYOR
3 LIVE HOLDERS
4 TRUSTY COOK SPINDLE LINERS
EXTRA 1.5" I.D. HOLDERS
