Used 2005 MAZAK E 650H/3000 | LATHES,COMBINATION CNC
Have one to sell?
ConditionUsed
1 available

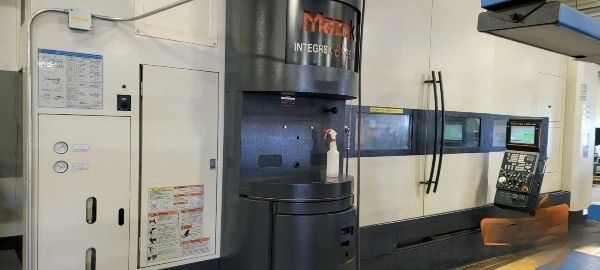

RARE, MAZAK INTEGREX E-650H WITH 120" CENTERS, 12" HOLE, AND BORING BAR STOCKER READY FOR IMMEDIATE DELIVERY!
**ALL DESCRIPTIONS AND SPECIFICATIONS ARE PRELIMINARY AND MUST BE CONFIRMED BY BUYER PRIOR TO PURCHASE.**
LIVE TOOLING / MILLING
C-AXIS: EQUIPPED WITH
Y-AXIS: EQUIPPED WITH
LIVE TOOLING / MILLING: EQUIPPED WITH
B-AXIS: EQUIPPED WITH
SPECIFICATIONS
X-TRAVEL: 40.35"
Z-TRAVEL: 122.00"
DISTANCE BETWEEN CENTERS: 120"
MAX SWING OVER BED: 36.22"
MAX TURNING / CUTTING LENGTH: 120.78"
MAX CUTTING / TURNING DIAMETER: 36.00"
SPINDLE
BAR CAPACITY: 10.20"
CHUCK SIZE: 24.0"
CHUCK TYPE: AIR
CHUCK DESCRIPTION: SCHUNK 3-JAW AIR CHUCK
SPINDLE BORE: 10.20"
SPINDLE SPEED: 1,000 RPM
SPINDLE MOTOR: 50 HP
SPINDLE NOSE: A2-11
TURRET
TOOL POSITIONS: 80
LIVE MILLING MAX RPM: 10,000 RPM
CONTROL
CONTROL MAKE/MODEL: MAZATROL 640M PRO CNC CONTROL
CONTROL OPTIONS: COORDINATE ROTATION AND SCALING;HELICAL INTERPOLATION;SYNCHRONIZED TAPPING;INCH/METRIC CONVERSION;ROTATION AND SCALING;EIA/ISO CODE INPUT FUNCTION
ADDITIONAL CONTROL OPTIONS: SPIRAL INTERPOLATION
3D CUTTER COMPENSATION
GEOMETRIC COMMAND
HOBBING
SHAPE COMPENSATION
THREAD CUTTING
RE-THREADING
THREAD START POINT COMPENSATION
INVERSE TIME FEED
3D COORDINATE ROTATION
COMPARISON STOP
G54.1
FLASH TOOL
ROTATION AXIS SHAPE COMPENSATION
G00 SLOPE CONSTANT
600 SETS VARIABLE
CYLINDER
ROTARY-AXIS SUB MICRON
SIMULTANEOUS 5-AXIS
HELICAL TAP CYCLE
TILTED WORKING PLANE COMMAND
MAZATROL PLANET TAP
TOOL CENTER POINT CONTROL
TAILSTOCK / STEADYREST
TAILSTOCK: EQUIPPED WITH
PROGRAMMABLE TAILSTOCK: EQUIPPED WITH
STEADYREST TYPE: HYDRAULIC
STEADYREST CAPACITY: 12"
MACHINE OPTIONS: TRANSFORMER; MIST COLLECTOR; AUTOMATIC TOOL LENGTH MEASUREMENT SYSTEM; TOOL EYE
ADDITIONAL MACHINE SPECS: TRAVELS:
- Y-AXIS: 25.6"
- B-AXIS: 0.0001° CONTOURING
- C-AXIS: 1000 RPM
SMW AUTOBLOCK HYDRAULIC STEADY REST: 1.7" - 12.2"
LNS SMW MODEL SLU Z 5.1/Z
ELEVATED CHIP CONVEYOR
BORING BAR STOCKER AND 3 BORING BAR ATTACHMENT: 100MM, 80MM
PREP FOR MULTI AND FLASH TOOL SYSTEM
PREP FOR MMS-B OPTICAL PROBE
PREP FOR 1000 PSI SUPER FLOW COOLANT
COOLANT THRU MILLING HEAD
MULTITAP TRANSFORMER
MODIFICATION FOR REAR CHUCK MOUNT
FILTRATION SYSTEM
*PLEASE NOTE: TOOLING AND BORING BAR IN PHOTO NOT INCLUDED
COOLANT TYPES: HIGH PRESSURE THRU-SPINDLE COOLANT
CHIP REMOVAL: CHIP CONVEYOR
PROBE MAKE/MODEL: RENISHAW PROBE
