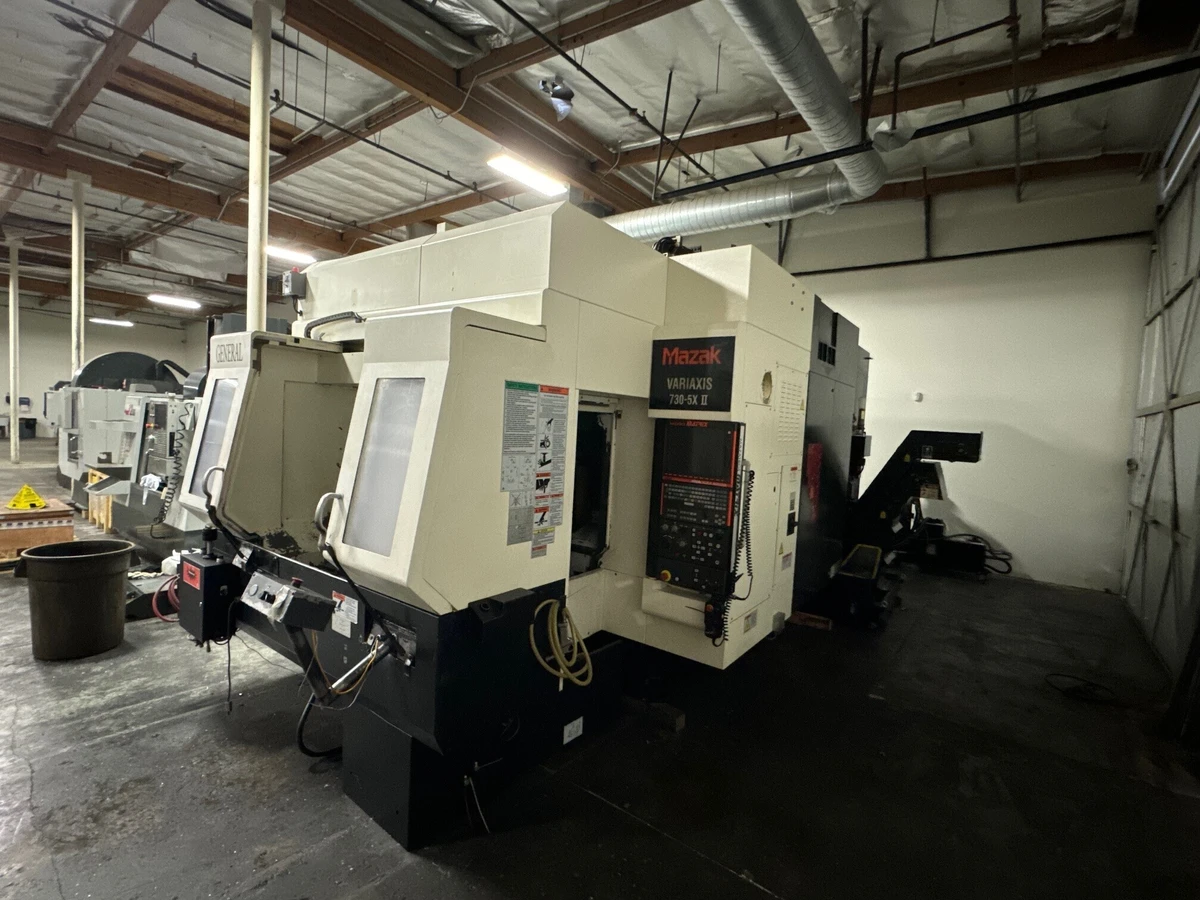

Used 2011 MAZAK VARIAXIS 730-5X II | MACHINING CENTERS, VERTICAL

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

MACHINING CENTERS, VERTICAL

Manufacturer:

Model:

VARIAXIS 730-5X II

Year:

2011

Stock #:

210557

Status:

For Sale

ImperialMetric

X Travel	28.74"	730 mm
Y Travel	33.46"	849.88 mm
Z Travel	22.05"	560.07 mm
Spindle Speed	10,000 RPM	10000 rpm
Tool Capacity (ATC)	40	40
Table Size (W)	19.6"	497.84 mm
Table Size (L)	24.9"	632.46 mm
Main Spindle Motor	40 hp
Main Horse Power	60/40/30 HP	60/40/30 HP
Spindle Taper	CAT 50	CAT 50
Spindle Nose To Table Top	9.0" ~ 31.1"	9.0" ~ 31.1"
Built In or Bolt On Table	Built In	Built In
Table Type A-Axis Trunnion Tilt Range	+30° ~ 120°	+30° ~ 120°
Table Type C-Axis Table Rotation	1 Degree Index	1 Degree Index
Coolant Thru	Yes	Yes
Coolant Thru High Pressure	Yes	Yes
Hi Pressure Coolant System	1000 psi
Part Probe	No	No
Tool Probe/Auto Tool Length Measurement	Yes	Yes
Palletech System Number of Pallets	2	2
Rapid Traverse Rates	1574	1574
Chip Conveyor	CONCEPT 2000 CHIP CONVEYOR	CONCEPT 2000 CHIP CONVEYOR
Control	CNC (MAZATROL MATRIX)	CNC (MAZATROL MATRIX)

PALLET SIZE (2 PALLETS) 19.7" X 19.7"
MAXIMUM WORKPIECE SIZE 28.74" X 19.69"

MAZATROL MATRIX CONTROL
40 ATC
PROBE READY ONLY
2 PALLET CHANGER
CONCEPT 2000 CHIP CONVEYOR
MAZAK SUPER FLOW T8/1000 HI PRESS COOLANT
5-AXIS
