2022 DOOSAN LYNX 2600SY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DOOSAN
Model:
LYNX 2600SY
Condition:
Excellent
Year:
2022
Stock #:
210559
Status:
For Sale

Description

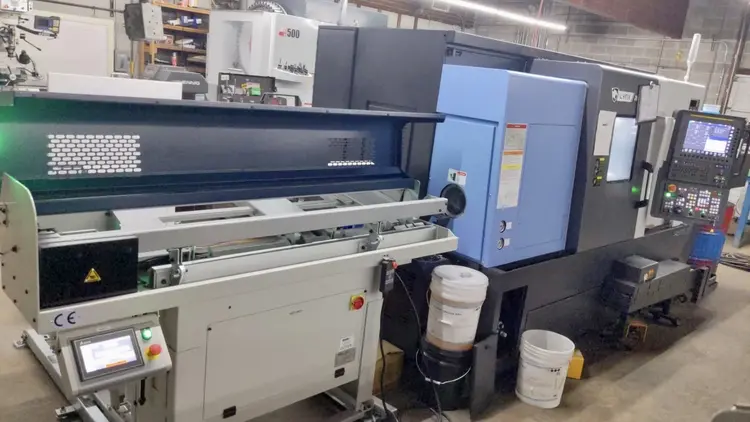

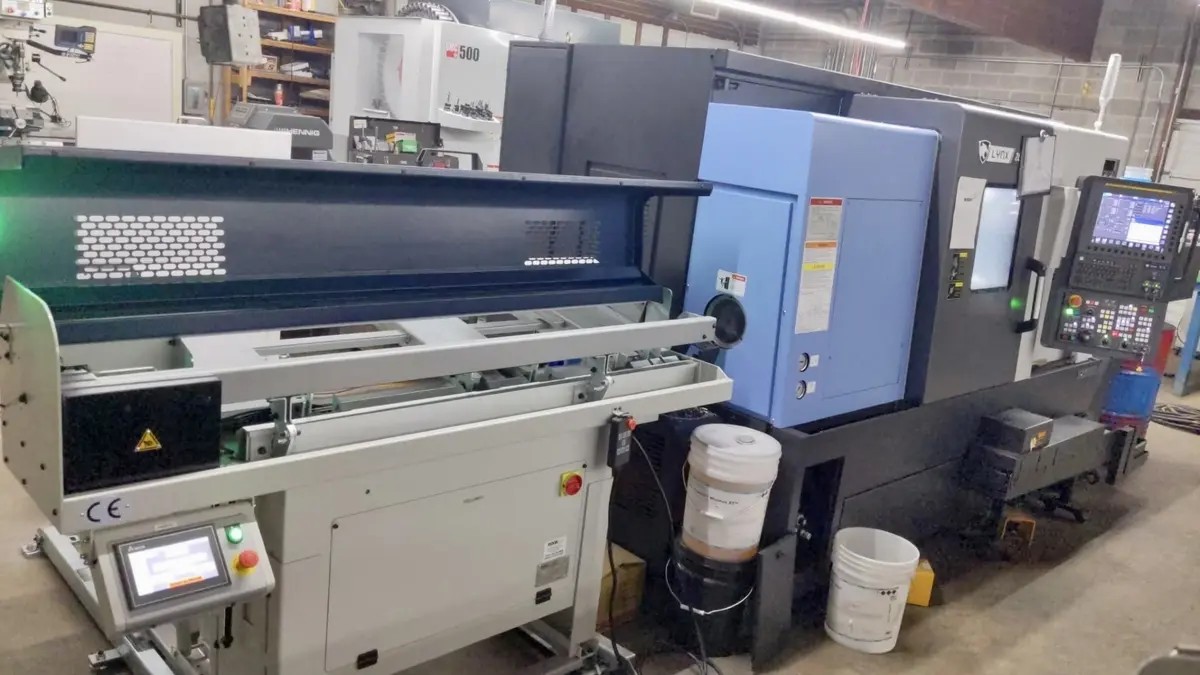

2022 DOOSAN LYNX 2600SY WITH FANUC 0i CONTROL, C AXIS, Y AXIS, SUB SPINDLE, CHIP CONVEYOR
EDGE REBEL 100 SERVO BAR FEEDER, 5 ASSORTED LIVE TOOLS AND HI PRESSURE COOLANT.

Maximum Swing24.8"629.92 mm
Max Turning Diameter14.96"379.98 mm
Main Spindle Bore/Max Bar Capacity3.56"/ 3.19"3.56"/ 3.19"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length24"609.6 mm
X-Axis Travel (X1, X2, X3)9.8"9.8"
Z-Axis Travel (Z1, Z2, Z3)26.8"26.8"
Y-Axis Travel (Y1, Y2, Y3)4.1" (±2")4.1" (±2")
W-Axis Travel Sub Spindle26.8 in
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.56"65.024 mm
Main Spindle Maximum Bar Work3.19"81.026 mm
Main Spindle Speed3,500 RPM3,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)2525
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed4,500 RPM4,500 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1010
Turret Tool Positions 1, 21212
Chip ConveyorYesYes
Rapid Traverse, X-Axis11811181
Rapid Traverse, Y-Axis393393
Rapid Traverse, Z-Axis11811181
ControlCNC (FANUC 0i)CNC (FANUC 0i)
Dimensions135" x 75.6" x 82.5"135" x 75.6" x 82.5"
Weight13,225 LBS13,225 LBS

FANUC 0i CONTROL
C AXIS, Y AXIS, SUB SPINDLE
CHIP CONVEYOR
EDGE REBEL 100 SERVO BARFEED
ASSORTED LIVE TOOLS - 5
HI PRESSURE COOLANT
