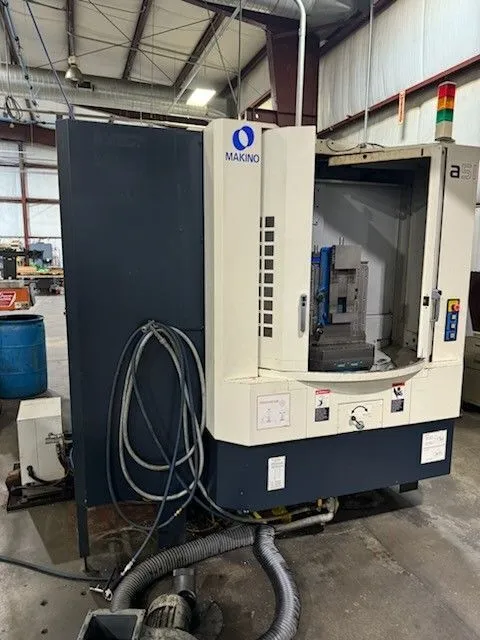

Used 2007 MAKINO A51 | MACHINING CENTERS, HORIZONTAL
Have one to sell?
ConditionUsed
1 available
TOOL DIAMETER 3.76", 6.7"
TOOL LENGTH 16.9"
TOOL WEIGHT 26.4" LBS.
TOOL CHANGE TIME .9 SEC.
PALLET WEIGHT CAPACITY 880
PALLET SURFACE TO SPINDLE CENTER 3.1" ~ 25.2"
PALLET CENTER TO SPINDLE GAGE LINE 2.8" ~ 26.4"
FANUC 31I CNC CONTROL WITH PRO 5
12.1 COLOR LCD / 320 METERS
1 MEG OF MEMORY
200 PROGRAMS
DATA CENTER 4MB
FULL 4TH AXIS N/C ROTARY TABLE
BALL SCREW CORE COOLING
200 TOOL OFFSETS
TOOL OFFSET MEMORY C
HELICAL INTERPOLATION
CUSTOM MACRO 100 VARIABLES
PORTABLE HAND-HELD MPG
EXTERNAL SETTING ORIENTATION
2-PALLET CHANGER
MIST COLLECT SYSTEM
PCMCIA MEMORY CARD SLOT
COOLANT THROUGH SPINDLE HIGH-PRESSURE -- 1000 PSI CHIPBLASTER (WILL VERIFY)
GI 3
CHIP REMOVAL SYSTEM
ALL AVAILABLE MANUALS
Imperial
| X-AXIS TRAVEL | 22" |
| Y-AXIS TRAVEL | 22" |
| Z-AXIS TRAVEL | 23.6" |
| SPINDLE TAPER | CAT 40 |
| SPINDLE DRIVE MOTOR | 25 hp |
| SPINDLE SPEED | 12000 rpm |
| MAX WORKPIECE SIZE | 24.8" Dia. x 35.4" Ht. |
| RAPID TRAVERSE | 2360 |
| TOOL CAPACITY (ATC) | 60 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 15.7" x 15.7" |
| Number of Axis | 4 |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| Control | CNC (FANUC 31I CNC CONTROL WITH PRO 5) |
| Weight | 19,620 LBS |
TOOL DIAMETER 3.76", 6.7"
TOOL LENGTH 16.9"
TOOL WEIGHT 26.4" LBS.
TOOL CHANGE TIME .9 SEC.
PALLET WEIGHT CAPACITY 880
PALLET SURFACE TO SPINDLE CENTER 3.1" ~ 25.2"
PALLET CENTER TO SPINDLE GAGE LINE 2.8" ~ 26.4"
FANUC 31I CNC CONTROL WITH PRO 5
12.1 COLOR LCD / 320 METERS
1 MEG OF MEMORY
200 PROGRAMS
DATA CENTER 4MB
FULL 4TH AXIS N/C ROTARY TABLE
BALL SCREW CORE COOLING
200 TOOL OFFSETS
TOOL OFFSET MEMORY C
HELICAL INTERPOLATION
CUSTOM MACRO 100 VARIABLES
PORTABLE HAND-HELD MPG
EXTERNAL SETTING ORIENTATION
2-PALLET CHANGER
MIST COLLECT SYSTEM
PCMCIA MEMORY CARD SLOT
COOLANT THROUGH SPINDLE HIGH-PRESSURE -- 1000 PSI CHIPBLASTER (WILL VERIFY)
GI 3
CHIP REMOVAL SYSTEM
ALL AVAILABLE MANUALS
