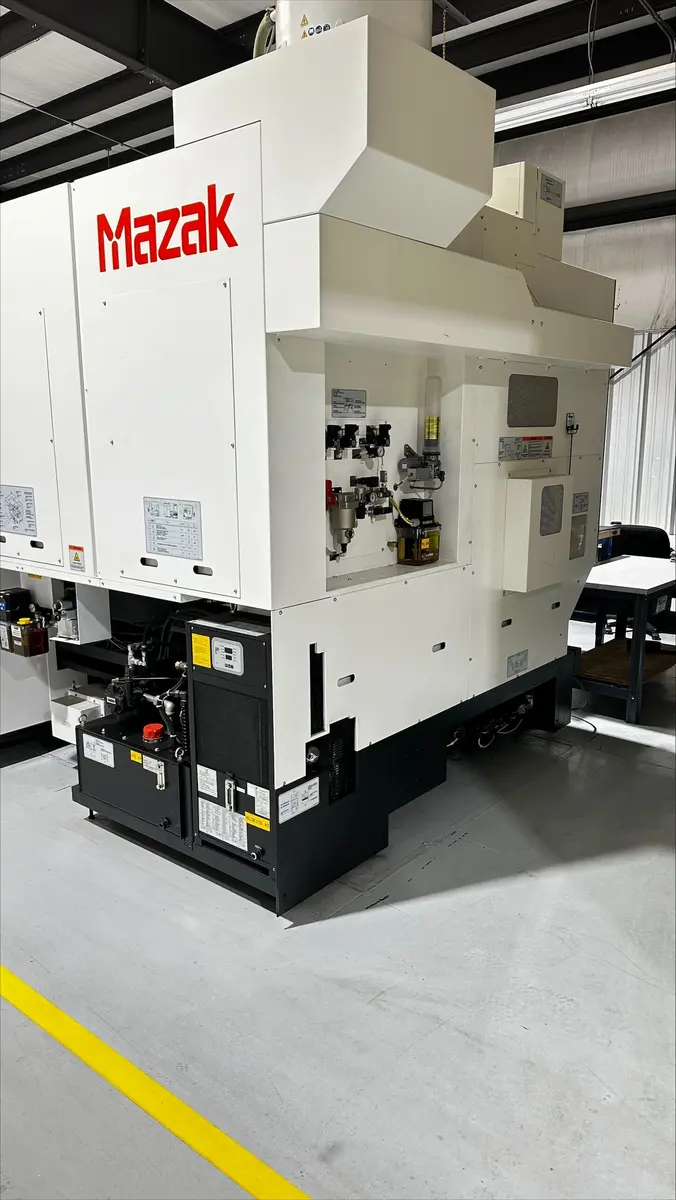

2016 MAZAK HQR 250MY
Have one to sell?
ConditionUsed
1 available
2016 INSTALLED IN 2018 HQR 250MY WITH MAZATROL SMOOTH G CONTROL
• TWIN-TURRET WITH TAILSTOCK CONFIGURATION FOR DONE IN ONE® PROCESSING
• UPPER AND LOWER TURRETS WITH Y-AXIS FOR OFF-CENTER MACHINING
• HIGH-SPEED, HIGH-TORQUE SPINDLE
• HIGH-SPEED RAPID TRAVERSE RATE FOR REDUCED NON-CUTTING TIME
• SIMULTANEOUS TURNING AND MILLING OPERATION FOR OPTIMUM THROUGHPUT
• BOTH TURRETS CAN ACCOMMODATE ROTARY TOOLS AT ANY TOOL POSITION
• EASILY INTEGRATES WITH AN OPTIONAL BAR FEEDER OR ROBOT LOADER/UNLOADER
( NEW 2016 / INSTALLED 2018 )
MAZATROL SMOOTHG CONTROL
MAX PROGRAM SIZE: 8 MB – WINDOWS 8 OPERATING SYSTEM
CHIP CONVEYOR
CHUCK SIZE 10” BB-210
LNS STEADY REST SLUX-Z-1
CAPACITY MIN. – 0.24”
CAPACITY MAX. – 2.76”
TOOLING AVAILABLE - MAINTENANCE PERFORMED – PERIODIC MAINTENANCE ONLY.
3 MC628B17JJO / V-MILL&DRILL HOLDER DIA20MM A 6000 RPM
3 TURNING HOLDER C (UPPER FWD./LOWER REV.)
2 MC629B17JJO / V-MILL&DRILL HOLDER DIA20MM B 6000 RPM
2 TURNING HOLDER B (UPPER FWD./LOWER REV.)
1 BORING BAR HOLDER 1-1/2" I.D. (A)
3 BORING BAR HOLDER 1-1/2" I.D. (B)
4 V-HD MILLING & DRILL HOLDER
1 TURNING HOLDER D (UPPER REV./LOWER FWD.)
1 H-RIGID MILL DRILL HOLDER
7 BORING BAR HOLDER 1-1/2" I.D. (A)
1 LIVE CENTER
4 BORING BAR HOLDER 1-1/2"
2 QUICKFLEX 6000 RPM
1 LIVE TOOLING MILLING
1 LIVE TOOLING MILLING
4 HOOK SPANNER (E32AX)
1 HOOK SPANNER (85-98)
11 CAP PLUG
TAILSTOCK - NC Tailstock thrust force can be set in increments of 22.48
TWO-TURRET/TWO-SPINDLE CONFIGURATIONS FOR INCREASED PRODUCTION
UPPER AND LOWER TURRETS
WIDE RANGE OF PART SIZE CAPABILITY
FAST CYCLE TIMES WITH BALANCED CUTTING AND SIMULTANEOUS FIRST AND SECOND OPS
SEAMLESS INTEGRATION OF EITHER OVERHEAD GANTRY ROBOT LOADING SYSTEMS OR BAR FEEDERS
FAST AND EASY PROGRAMMING FOR USING ALL MACHINE SPINDLES AND TURRETS IN PART PROCESSING.
2016 INSTALLED IN 2018 HQR 250MY WITH MAZATROL SMOOTH G CONTROL
• TWIN-TURRET WITH TAILSTOCK CONFIGURATION FOR DONE IN ONE® PROCESSING
• UPPER AND LOWER TURRETS WITH Y-AXIS FOR OFF-CENTER MACHINING
• HIGH-SPEED, HIGH-TORQUE SPINDLE
• HIGH-SPEED RAPID TRAVERSE RATE FOR REDUCED NON-CUTTING TIME
• SIMULTANEOUS TURNING AND MILLING OPERATION FOR OPTIMUM THROUGHPUT
• BOTH TURRETS CAN ACCOMMODATE ROTARY TOOLS AT ANY TOOL POSITION
• EASILY INTEGRATES WITH AN OPTIONAL BAR FEEDER OR ROBOT LOADER/UNLOADER
Imperial
| Maximum Swing | 14.6" |
| Max Turning Diameter | 13.5" |
| Main Spindle Bore/Max Bar Capacity | 3.58"/ 3.15 |
| Tail Stock/Sub Spindle | TAILSTOCK |
| X-Axis Travel (X1, X2, X3) | 8.2" |
| Z-Axis Travel (Z1, Z2, Z3) | 29.87" |
| Y-Axis Travel (Y1, Y2, Y3) | 4.0" (+/- 2") |
| C-Axis Indexing (1, 2) | 0.0001 DEGREE INCREMENT (1ST SPINDLE) |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.58" |
| Main Spindle Maximum Bar Work | 3.15" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35.0 HP / 26 kw |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL SMOOTH G) |
( NEW 2016 / INSTALLED 2018 )
MAZATROL SMOOTHG CONTROL
MAX PROGRAM SIZE: 8 MB – WINDOWS 8 OPERATING SYSTEM
CHIP CONVEYOR
CHUCK SIZE 10” BB-210
LNS STEADY REST SLUX-Z-1
CAPACITY MIN. – 0.24”
CAPACITY MAX. – 2.76”
TOOLING AVAILABLE - MAINTENANCE PERFORMED – PERIODIC MAINTENANCE ONLY.
3 MC628B17JJO / V-MILL&DRILL HOLDER DIA20MM A 6000 RPM
3 TURNING HOLDER C (UPPER FWD./LOWER REV.)
2 MC629B17JJO / V-MILL&DRILL HOLDER DIA20MM B 6000 RPM
2 TURNING HOLDER B (UPPER FWD./LOWER REV.)
1 BORING BAR HOLDER 1-1/2" I.D. (A)
3 BORING BAR HOLDER 1-1/2" I.D. (B)
4 V-HD MILLING & DRILL HOLDER
1 TURNING HOLDER D (UPPER REV./LOWER FWD.)
1 H-RIGID MILL DRILL HOLDER
7 BORING BAR HOLDER 1-1/2" I.D. (A)
1 LIVE CENTER
4 BORING BAR HOLDER 1-1/2"
2 QUICKFLEX 6000 RPM
1 LIVE TOOLING MILLING
1 LIVE TOOLING MILLING
4 HOOK SPANNER (E32AX)
1 HOOK SPANNER (85-98)
11 CAP PLUG
TAILSTOCK - NC Tailstock thrust force can be set in increments of 22.48
TWO-TURRET/TWO-SPINDLE CONFIGURATIONS FOR INCREASED PRODUCTION
UPPER AND LOWER TURRETS
WIDE RANGE OF PART SIZE CAPABILITY
FAST CYCLE TIMES WITH BALANCED CUTTING AND SIMULTANEOUS FIRST AND SECOND OPS
SEAMLESS INTEGRATION OF EITHER OVERHEAD GANTRY ROBOT LOADING SYSTEMS OR BAR FEEDERS
FAST AND EASY PROGRAMMING FOR USING ALL MACHINE SPINDLES AND TURRETS IN PART PROCESSING.
