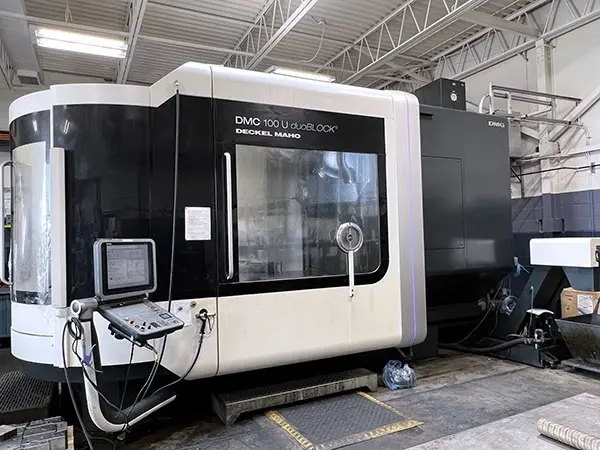

DMG MORI DMC 100U DUOBLOCK 5 AXIS CNC HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
DMG MORI DMC 100U DUOBLOCK 5 Axis CNC Horizontal Machining Center from 2011. Notable features include Heidenhain iTNC 530 control, universal milling head, 12,000 RPM motor spindle, 60-tool ATC, 580 PSI coolant-thru spindle, and chip conveyor. Used but in good condition.
HEIDENHAIN iTNC 530 5-AXIS CNC CONTROL
UNIVERSAL MILLING HEAD WITH CONTROLLED B-AXIS
INTEGRATED MOTOR SPINDLE: 12000 RPM
580 PSI COOLANT-THRU SPINDLE
COOLANT FILTRATIONS UNIT
TOOL SHANK HSK-100
WIRED FOR RENISHAW PROBING (PROBE NOT INCLUDED)
TOOL MEASURING BLUM LASER
3D QUICKSET
60 POS ATC
CHIP CONVEYOR
DMG MORI DMC 100U DUOBLOCK 5 Axis CNC Horizontal Machining Center from 2011. Notable features include Heidenhain iTNC 530 control, universal milling head, 12,000 RPM motor spindle, 60-tool ATC, 580 PSI coolant-thru spindle, and chip conveyor. Used but in good condition.
Imperial
| X-AXIS TRAVEL | 39.4" |
| Y-AXIS TRAVEL | 49.2" |
| Z-AXIS TRAVEL | 39.4" |
| SPINDLE TAPER | HSK 100 |
| SPINDLE DRIVE MOTOR | 37.5 hp |
| SPINDLE SPEED | 12000 rpm |
| MAXIMUM WORKPIECE DIAMETER | 39.4" |
| RAPID TRAVERSE | 2362 |
| TOOL CAPACITY (ATC) | 60 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 39.4" X 39.4" |
| PALLET SIZE (W) | 39.4" |
| PALLET SIZE (L) | 39.4" |
| PALLET LOAD CAPACITY | 4409 lb |
| CHIP CONVEYOR | Yes |
| Control | CNC (HEIDENHAIN ITNC 530 5 AXIS CONTROL) |
| Dimensions | 162.3" x 257" x 134.4" |
| Weight | 40,785 lbs |
HEIDENHAIN iTNC 530 5-AXIS CNC CONTROL
UNIVERSAL MILLING HEAD WITH CONTROLLED B-AXIS
INTEGRATED MOTOR SPINDLE: 12000 RPM
580 PSI COOLANT-THRU SPINDLE
COOLANT FILTRATIONS UNIT
TOOL SHANK HSK-100
WIRED FOR RENISHAW PROBING (PROBE NOT INCLUDED)
TOOL MEASURING BLUM LASER
3D QUICKSET
60 POS ATC
CHIP CONVEYOR
