FW: 2019 Methods MV 1600H
Have one to sell?
ConditionUsed
1 available

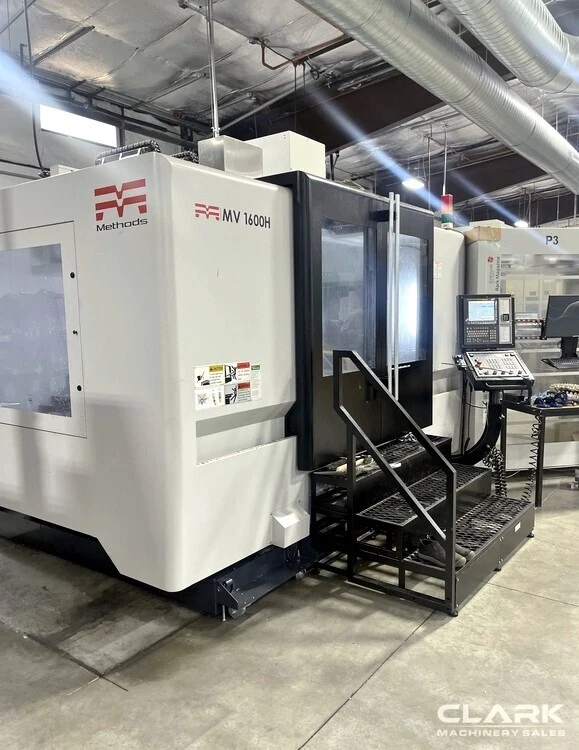

2019 METHODS MV 1600H
Specifications:
TABLE LENGTH 66.9"
TABLE WIDTH 33.5"
TABLE CAPACITY 3,307 lb
X-AXIS TRAVEL 63"
Y-AXIS TRAVEL 35.4"
Z-AXIS TRAVEL 31.5"
SPINDLE SPEED 15,000 RPM
SPINDLE MOTOR 30 hp
SPINDLE TAPER CAT 40 (BIG PLUS)
TOOL CAPACITY (ATC) 40
RAPID TRAVERSE - X AXIS 1,417 in/min.
RAPID TRAVERSE - Z-AXIS 944 in/min.
FANUC 0i-MF CONTROL
35.4" OF Y-AXIS TRAVEL
15,000 RPM SPINDLE (CAT40 BIG PLUS)
40-POSITION TOOL CHANGER
RENISHAW PROBING SYSTEM
PRE-WIRED FOR 4TH AXIS (DOES NOT INCLUDE DRIVES OR MOTORS)
PREPPED FOR 1,000 PSI THROUGH-SPINDLE COOLANT
MIST BUSTER MIST COLLECTOR (MB2000)
SPINDLE CHILLER
(2) CHIP CONVEYORS (REAR DISCHARGE)
THERMAL COMPENSATION
REMOTE JOG HANDLE
RIGID TAPPING
DATA SERVER
ETHERNET
USB
LINEAR GUIDES (X & Y AXES)
BOX WAY (Z AXIS)
** AS OF JULY 2024, CUTTING TIME – 3,675 HOURS
** MACHINE CUT PRIMARILY ALUMINUM
** FULL REPLACEMENT COST, AS EQUIPPED - $265,000
** MACHINE WAS INSTALLED NEW IN 2021 (BUILT IN 2019)
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** EROWA SYSTEM SHOWN IN PHOTOS IS NOT INCLUDED WITH THE MACHINE
