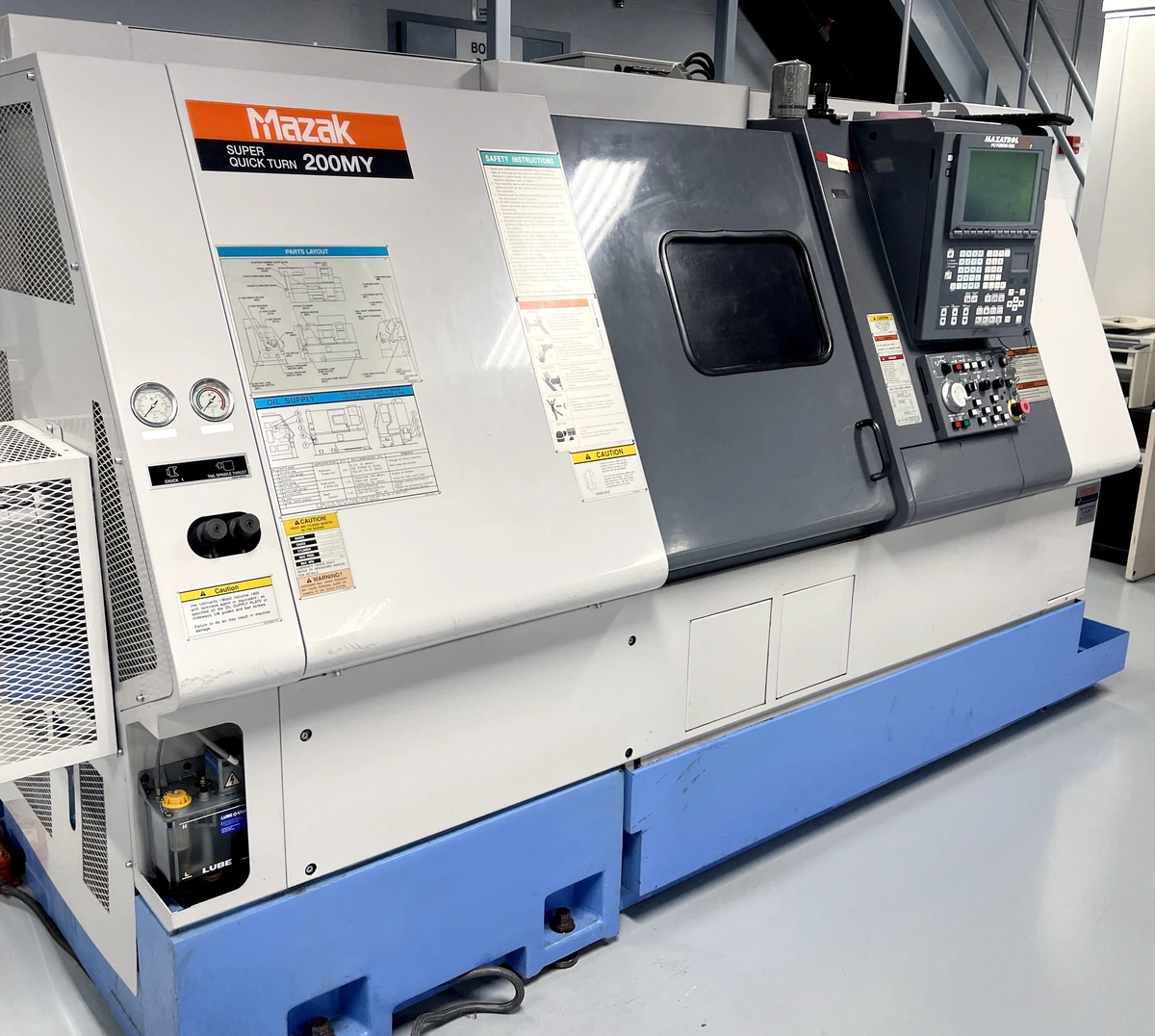

MAZAK SQT 200MY LIVE TOOL Y AXIS CNC LATHE
Have one to sell?
ConditionUsed
1 available
THIS SQT 200MY HAS A FUSION 640T CONTROL, TAILSTOCK, CHIP CONVEYOR. AND A NICE TOOLING PACKAGE INCLUDING SOME LIVE TOOLS.
MAZATROL FUSION 640 CONTROL
TOOL PRESETTER
ADDITIONAL MACHINE SPECS: SWING DOWN PRESETTER
OIL SKIMMER
MISC. TOOLING:
- 8" KITAGAWA 3-JAW CHUCK
- (2) RADIAL LIVE TOOLS
- (2) AXIAL LIVE TOOLS
- (3) LIVE CENTERS
- (2) DEAD CENTERS
THIS SQT 200MY HAS A FUSION 640T CONTROL, TAILSTOCK, CHIP CONVEYOR. AND A NICE TOOLING PACKAGE INCLUDING SOME LIVE TOOLS.
Imperial
| Maximum Swing | 20.6" |
| Max Turning Diameter | 11.1" |
| Main Spindle Bore/Max Bar Capacity | 2.44/ 2.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 13.8" |
| Distance Between Centers | 21" |
| Maximum Cutting Length | 19.5" |
| X-Axis Travel (X1, X2, X3) | 7.1 |
| Z-Axis Travel (Z1, Z2, Z3) | 21.6 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2" |
| C-Axis Indexing (1, 2) | .001 DEGREE |
| Main Spindle Chuck Type | Collet |
| Main Spindle Bore Diameter | 2.44" |
| Main Spindle Maximum Bar Work | 2.04" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 5 |
| Bar Feed | No |
| Parts Catcher | No |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Control | CNC (MAZATROL FUSION 640) |
| Dimensions | 121" X 71" X 79" |
| Weight | 11,250 LBS. |
MAZATROL FUSION 640 CONTROL
TOOL PRESETTER
ADDITIONAL MACHINE SPECS: SWING DOWN PRESETTER
OIL SKIMMER
MISC. TOOLING:
- 8" KITAGAWA 3-JAW CHUCK
- (2) RADIAL LIVE TOOLS
- (2) AXIAL LIVE TOOLS
- (3) LIVE CENTERS
- (2) DEAD CENTERS
