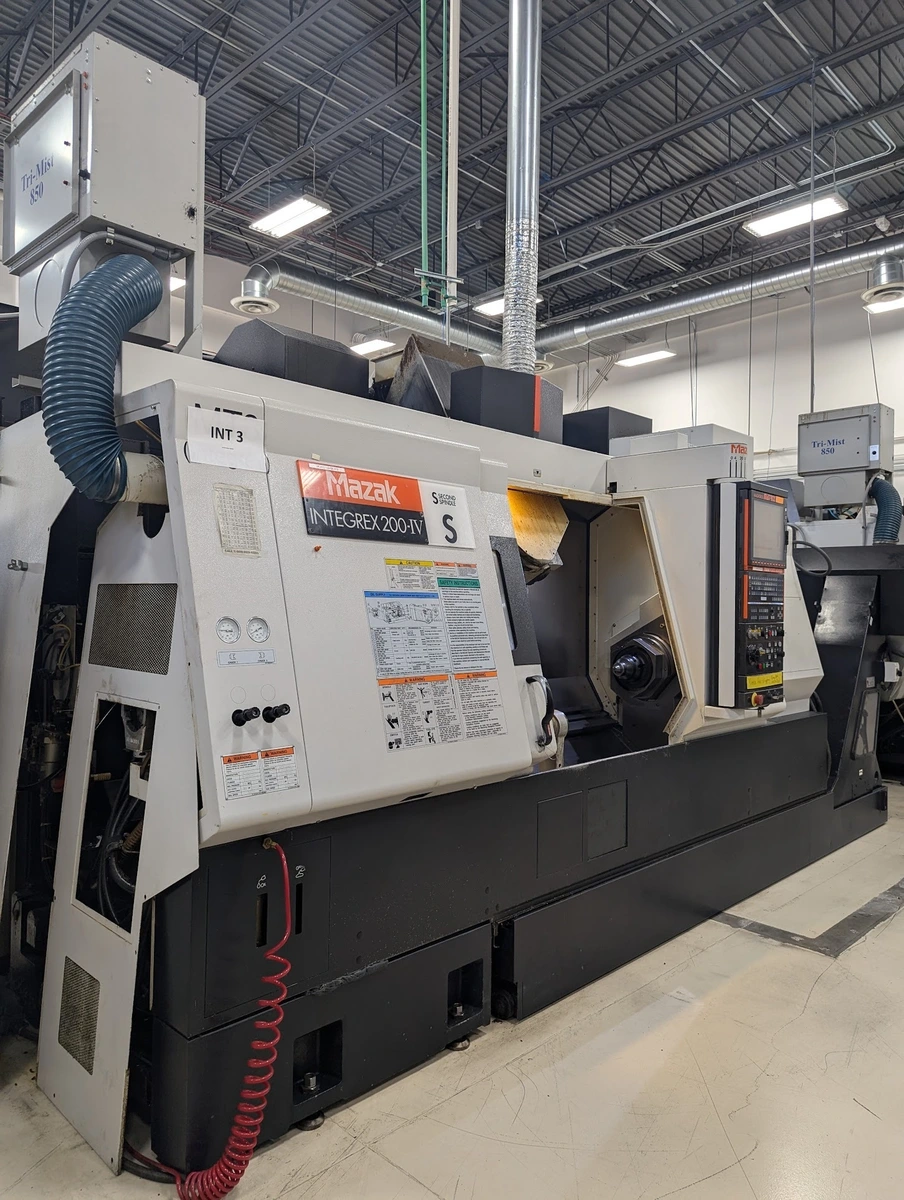

2007 MAZAK INTEGREX 200 IVS
Have one to sell?
ConditionUsed
1 available
Explore 2007 MAZAK INTEGREX 200-IVS CNC Lathe: Multi-axis precision, 40 ATC capacity, chip conveyor, with 60" max cutting length. Robust & ready for complex tasks.
MAZATROL MATRIX WITH VOICE ADVISOR
SUB SPINDLE
PARTS CATCHER
HIGH-PRESSURE COOLANT THRU
TRI MIST MIST COLLECTOR
CHIP CONVEYOR
FULL B-AXIS
Explore 2007 MAZAK INTEGREX 200-IVS CNC Lathe: Multi-axis precision, 40 ATC capacity, chip conveyor, with 60" max cutting length. Robust & ready for complex tasks.
Imperial
| Maximum Swing | 25.91" |
| Max Turning Diameter | 25.91" |
| Main Spindle Bore/Max Bar Capacity | 2.99/2.4 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 60" |
| X-Axis Travel (X1, X2, X3) | 24.21 |
| Z-Axis Travel (Z1, Z2, Z3) | 62.4 |
| Y-Axis Travel (Y1, Y2, Y3) | 10.24 |
| C-Axis Indexing (1, 2) | 0.0001 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.4" |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30 |
| Main & Sub Spindle Synchronization | Yes |
| Rear Chuck Type | Hydraulic |
| ATC Magazine Capacity | 40 |
| Turret Rotary Tool Spindle Speed 1, 2 | 12000 |
| Turret Rotary Tool Horse Power 1, 2 | 30 |
| B-Axis Travel | -30° ~ 210° |
| B-Axis Head Indexing | 0.0001 deg |
| B-Axis Milling Spindle Speed | 12000 rpm |
| B-Axis Milling Spindle Horse Power | 20 |
| B Axis Rotary Tool Spindle Speed | 5000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 25 hp |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Multi Tap Transformer | Yes |
| 5-AXIS MACHINING PACKAGE | 5 AXIS SIMULTANEOUS MACHINING |
| Control | CNC (MAZATROL MATRIX) |
MAZATROL MATRIX WITH VOICE ADVISOR
SUB SPINDLE
PARTS CATCHER
HIGH-PRESSURE COOLANT THRU
TRI MIST MIST COLLECTOR
CHIP CONVEYOR
FULL B-AXIS
