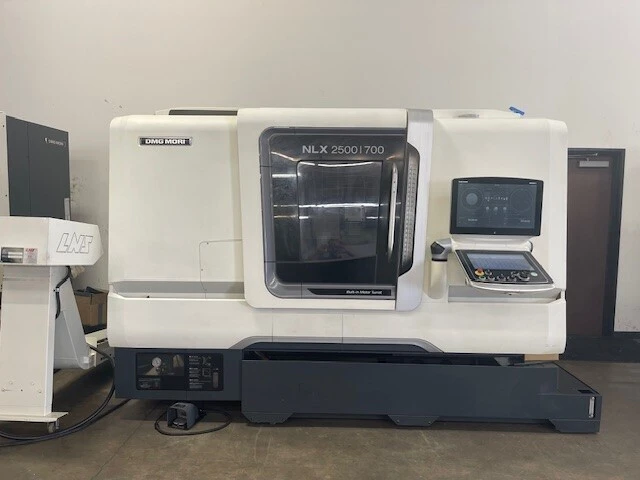

2015 DMG Mori NLX-2500Y

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DMG MORI
Model:
NLX 2500Y/700
Year:
2015
Stock #:
210585
Status:
For Sale

Description

DMG Mori NLX-2500SY (2015) CNC Lathe with 10" & 6" chucks, chip conveyor.
This pre-owned DMG Mori CNC lathe is available to be seen under power for an inspection.

Maximum Swing36.229"920.22 mm
Max Turning Diameter14.01"355.85 mm
Main Spindle Bore/Max Bar Capacity3.58"/3.1"3.58"/3.1"
Tail Stock/Sub SpindleTailstockTailstock
Maximum Swing Over Cross Slide29.72"754.89 mm
Distance Between Centers28.7"728.98 mm
Maximum Cutting Length27.75"704.85 mm
X-Axis Travel (X1, X2, X3)10.24"10.24"
Z-Axis Travel (Z1, Z2, Z3)31.3"31.3"
Y-Axis Travel (Y1, Y2, Y3)3.9" +/- 2"3.9" +/- 2"
C-Axis Indexing (1, 2)0.0010.001
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.58"90.932 mm
Main Spindle Maximum Bar Work3.1"78.74 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)25 / 22 HP25 / 22 HP
Number of Turrets11
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Rapid Traverse, X-Axis11811181
Rapid Traverse, Y-Axis394394
Rapid Traverse, Z-Axis11811181
ControlCNCCNC
Dimensions174" X 93" X 87"174" X 93" X 87"
Weight17,500 LBS17,500 LBS

Celos ERGOLINE Control
Programmable Tailstock
Chip Blaster Hi-Pressure Coolant
Mist Blaster
Chip Conveyor
4 Live Holders
