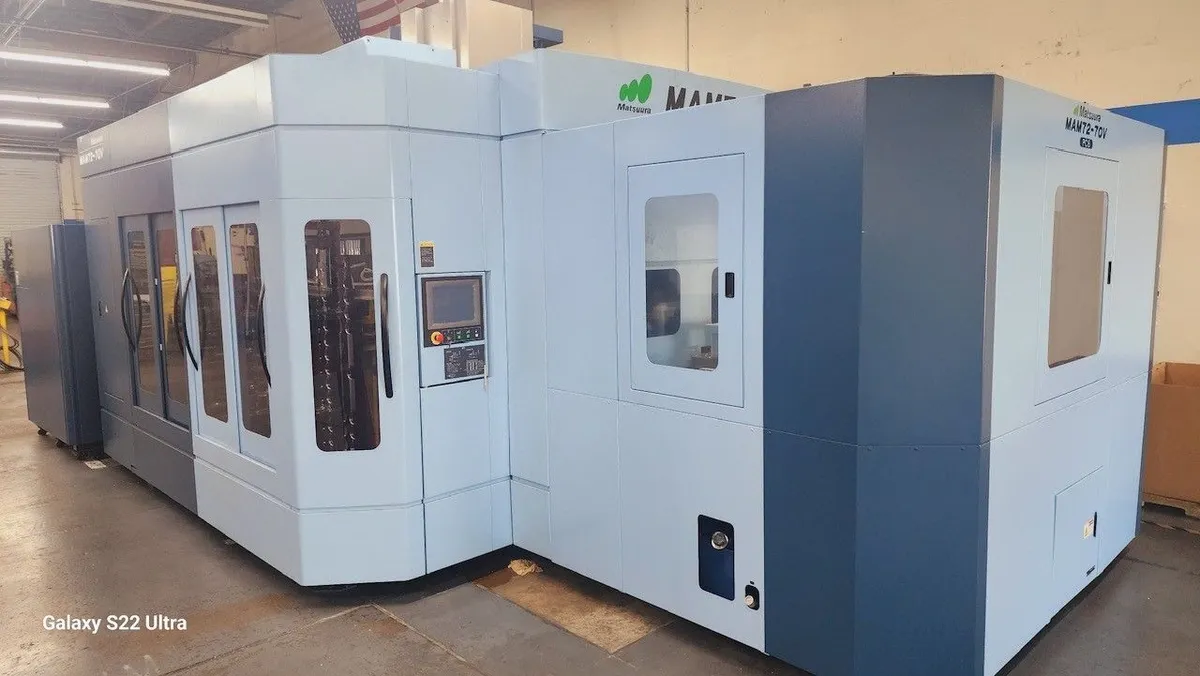

2014 MATSUURA MAM 72-63V PC24 - 5 AXIS VERTICAL
Have one to sell?
ConditionUsed
1 available
MATSUURA MAM 72-63V PC24 WITH A 2 MACHINE/ 24 PALLET FASTEMS SYSTEM (CAN ADD PALLETS IN 12 PALLET INCREMENTS), 3-STAGE CHIP CONVEYOR, 20,000 RPM SPINDLE, 240 POSITION ATC, 5-AXIS, 500 MM PALLETS AND 1000 PSI CTS.
FANUC CONTROL
2 MACHINE/ 24 PALLET FASTEMS SYSTEM
(CAN ADD PALLETS IN 12 PALLET INCREMENTS)
3-STAGE CHIP CONVEYOR
20,000 RPMS SPINDLE,
245 POSITION ATC,
5-AXIS MACHINING
500 MM PALLETS.
1000 PSI HIGH-PRESSURE COOLANT THROUGH SPINDLE
MATSUURA MAM 72-63V PC24 WITH A 2 MACHINE/ 24 PALLET FASTEMS SYSTEM (CAN ADD PALLETS IN 12 PALLET INCREMENTS), 3-STAGE CHIP CONVEYOR, 20,000 RPM SPINDLE, 240 POSITION ATC, 5-AXIS, 500 MM PALLETS AND 1000 PSI CTS.
Imperial
| X Travel | 29.92" |
| Y Travel | 33.26" |
| Z Travel | 25.98" |
| Spindle Speed | 20000 rpm |
| Tool Capacity (ATC) | 245 |
| Table Size (W) | 19.68" |
| Table Size (L) | 19.68" |
| Main Spindle Motor | 30 hp |
| Table Type A-Axis Trunnion Tilt Range | +/- 120 DEGREE |
| Table Type C-Axis Table Rotation | 1 Degree Index |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 1000 psi |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 2362 IPM |
| Chip Conveyor | 3-STAGE C/C |
| Control | CNC (Matsuura G-Tech 30i) |
FANUC CONTROL
2 MACHINE/ 24 PALLET FASTEMS SYSTEM
(CAN ADD PALLETS IN 12 PALLET INCREMENTS)
3-STAGE CHIP CONVEYOR
20,000 RPMS SPINDLE,
245 POSITION ATC,
5-AXIS MACHINING
500 MM PALLETS.
1000 PSI HIGH-PRESSURE COOLANT THROUGH SPINDLE
