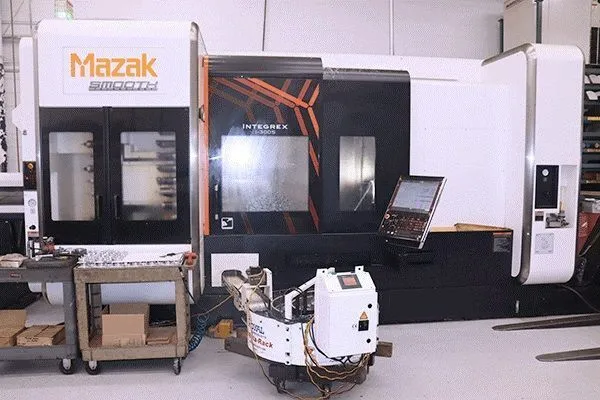

2018 MAZAK INTEGREX i-300S MULTI AXIS LATHE
Have one to sell?
ConditionUsed
1 available
2018 INTEGREX i-300S HAS A MAZATROL SMOOTH-X CONTROL, 80-STATION CAPTO ATC, LNS QLS8- BARFEEDER, 2 - 10" CHUCKS, RENISHAW RMP600 PROBE, 213 PSI CTS AND SIMULTANEOUS 5-AXIS MACHINING.
MAZATROL SMOOTH-X CONTROL
LNS QLS80 S2 BARFEEDER
UPGRADED SPINDLE TAPER - CAPTO C6
EXTENDED TOOL CAPACITY: 120 TOOLS
RENISHAW PROBE RMP600 WITH SET AND INSPECT
10” CHUCKS INSTALLED SP1 AND SP2
MAYFRAN CONSEP II EXT. LENGTH CHIP CONVEYOR
213 PSI THRU SPINDLE COOLANT
SMOOTH ENGRAVING FUNCTION
5-AXIS MACHINING PACKAGE FOR SMOOTH X
SIMULTANEOUS 5 AXES FOR 2ND SPINDLE
TOOL RADIUS COMPENSATION/5-AXIS
SMOOTHLINK
TURRET WORK STOPPER
2018 INTEGREX i-300S HAS A MAZATROL SMOOTH-X CONTROL, 80-STATION CAPTO ATC, LNS QLS8- BARFEEDER, 2 - 10" CHUCKS, RENISHAW RMP600 PROBE, 213 PSI CTS AND SIMULTANEOUS 5-AXIS MACHINING.
Imperial
| Maximum Swing | 25.91" |
| Max Turning Diameter | 25.91" |
| Main Spindle Bore/Max Bar Capacity | 3.46/ 3.0 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 25.91" |
| Distance Between Centers | 59.8" |
| X-Axis Travel (X1, X2, X3) | 24.21 |
| Z-Axis Travel (Z1, Z2, Z3) | 62.4 |
| Y-Axis Travel (Y1, Y2, Y3) | 9.84 |
| C-Axis Indexing (1, 2) | .001/ .001 |
| W-Axis Travel Sub Spindle | 61.5 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.46" |
| Main Spindle Maximum Bar Work | 3.15" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40/ 35 |
| Sub Spindle/2nd Spindle Chuck Size | 10 |
| Sub Spindle/2nd Spindle Bore Size | 3.15 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 35 |
| ATC Magazine Capacity | 120 |
| B-Axis Travel | -30 - +210 |
| B-Axis Head Indexing | 0.0001 deg |
| B-Axis Milling Spindle Speed | 12000 rpm |
| B-Axis Milling Spindle Horse Power | 35 |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Control | CNC |
| Dimensions | 193.31″ X 110.24″ X 147.47″ |
| Weight | 34,172 LBS |
MAZATROL SMOOTH-X CONTROL
LNS QLS80 S2 BARFEEDER
UPGRADED SPINDLE TAPER - CAPTO C6
EXTENDED TOOL CAPACITY: 120 TOOLS
RENISHAW PROBE RMP600 WITH SET AND INSPECT
10” CHUCKS INSTALLED SP1 AND SP2
MAYFRAN CONSEP II EXT. LENGTH CHIP CONVEYOR
213 PSI THRU SPINDLE COOLANT
SMOOTH ENGRAVING FUNCTION
5-AXIS MACHINING PACKAGE FOR SMOOTH X
SIMULTANEOUS 5 AXES FOR 2ND SPINDLE
TOOL RADIUS COMPENSATION/5-AXIS
SMOOTHLINK
TURRET WORK STOPPER
