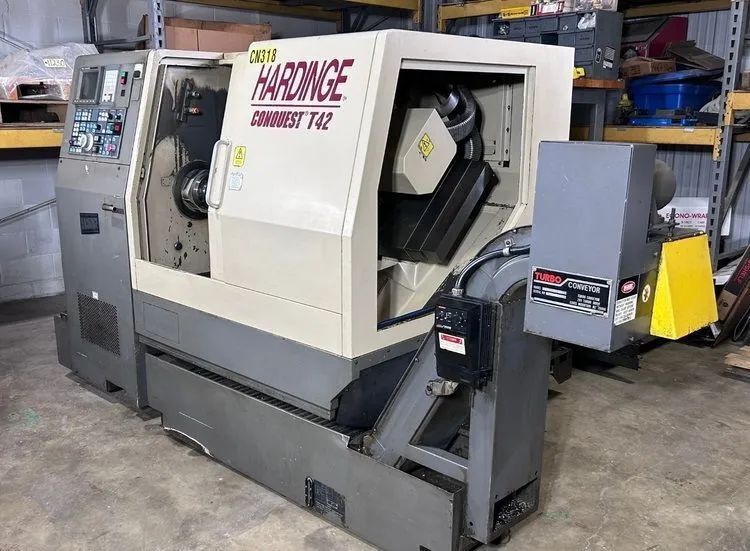

HARDINGE CONQUEST T-42

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
HARDINGE
Model:
CONQUEST T-42
Stock #:
210589
Status:
For Sale

Description

HARDINGE CONQUEST T42 WITH * FANUC 18-T CONTROL * 5000 RPM * 10 HP SPINDLE* COOLANT SYSTEM WITH CHIP CONVEYOR * 6 ID TOOL HOLDERS * ~50 COLLETS * 10 STRAIGHT & RIGHT ANGLE MILLING AND DRILLING LIVE TOOLS

Max. Swing21.2"538.48 mm
Max Turning Diameter9"228.6 mm
Spindle Bore/Max Bar Capacity2.04"/ 1.625"2.04"/ 1.625"
Z Travel13.9"353.06 mm
X Travel5.31"134.87 mm
Machining Length13.1"332.74 mm
Chuck Size6"152.4 mm
Chuck TypeHydraullicHydraullic
Spindle Motor10 hp
Spindle Speeds (RPM)50005000
Spindle Bore2.04 in
Max. Bar Capacity1.625"41.275 mm
Turret Tool Positions1212
TailstockNoNo
Chip ConveyorYesYes
ControlCNC (FANUC 18T)CNC (FANUC 18T)
Dimensions84” x 66″ x 68″84” x 66″ x 68″
Weight90009000

FANUC 18-T CONTROL
5000 RPM
10 HP SPINDLE
COOLANT SYSTEM WITH CHIP CONVEYOR
6 ID TOOL HOLDERS
50 COLLETS
10 STRAIGHT & RIGHT ANGLE MILLING AND DRILLING LIVE TOOLS
