Used DMG MORI NTX 1000 SZM 2010 Combination CNC Lathe. Features include 14.5" swing over bed, 16.6" turning length, 7346 cutting hours, 1000 PSI chip blaster, full 5-axis contouring, through spindle coolant, and fast data server. Equipped with FANUC 31IB5 CNC control.

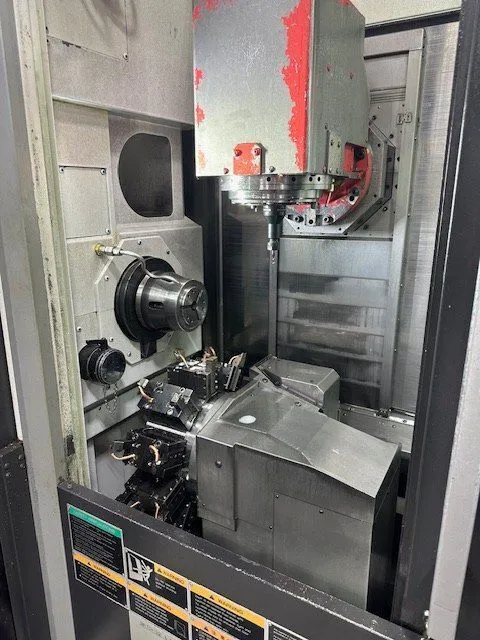

DMG MORI NTX 1000SZM CNC MULTI-TASKING CENTER
Year 2010
Mfg DMG MORI
Model NTX 1000SZM
Specs
Swing Over Bed 14.5"
Turning Diameter 14.5"" / 10.6" (Lower TRT)
Turning Length 16.6"
Chuck Size 1, 2 Royal/Royal
Spindle Nose 1, 2 A2-6, A2-5
Bar Capacity 1, 2 2.0" / 1"
Spindle Speeds 1, 2 6000, 6000 RPM
Spindle Horsepower 1, 2 15, 10 HP
B - Axis Head Indexing .0001 Deg.+-120
B - Axis Milling Spindle Speed 20,000 RPM
B - Axis Milling Spindle Taper Capto C5
B - Axis Milling Spindle Horse Power 12 HP
ATC For Milling Spindle 38 ATC
Tool Diameter 2.7" / 5.1"
Tool Length 9.8"
Tool Weight 11 Lbs.
X - Axis Travel X1, X2, X3 15", 6.1"
Z - Axis Travel Z1, Z2, Z3 18.1" + 6.1" ATC Travel, 24"
Y - Axis Travel Y1, Y2, Y3 +/- 4.1"
C - Axis Indexing 1, 2 .0001, .0001 Degree
Rapid Traverse Rates X1, X2, X3 1574, 1102 IPM
Rapid Traverse Rates Z1, Z2, Z3 1968, 1417 IPM
Rapid Traverse Rates Y1, Y2, Y3 1574 IPM
Turret Tool Positions 1, 2, 3 10
Machine Weight 19,690 Lbs.
7346, 4250 CUTTING HOURS
1000 PSI CHIP BLASTER
THROUGH SPINDLE COOLANT
FULL 5 AXIS CONTOURING
SET UP FOR IN MACHINE WORK MEASURING RENISHAW OMP 60 (PROBE NOT INCLUDED)
3D INTERFERENCE CHECKING FUNCTION
BARFEED INTERFACE
CHIP CONVEYOR
CORNER CIRCULAR INTERPOLATION
FAST DATA SERVER (100BASE-TX)
MANUAL TOOL SETTER
MORI MAPPS IV CONVERSATIONAL PROGRAMMING
MORI MSX 711IV FANUC 31IB5 CNC CONTROL
NANO SMOOTHING
POLYGON CUTTING
RIGID TAPPING ON MILL HEAD
ROBOT INTERFACE ,
ETHERNET / IP
500 STORED PROGRAMS,
640 METERS
600 CUSTOM MACRO VARIABLES
ADVANCED ETHERNET / IP
AI CONTOUR CONTROL 2
ATA FLASH MEMORY CARD
BACKGROUND EDIT,
USB PORT,
SPINDLE CHUCK AIR BLOW 1 & 2
SPINDLE ORIENTATION SPDL 1 & SPDL 2
TOOL LIFE MGMT B
TOOL OFFSET FOR 5 AXIS MACHINING
TOOL OFFSETS HEAD 1 240 SETS, HEAD 2 64 SETS
X, Y, Z, B AXIS MAGNESCALE
