Used MAZAK INTEGREX E-1850/ V12-II | MACHINING CENTERS, VERTICAL
Have one to sell?
ConditionUsed
1 available

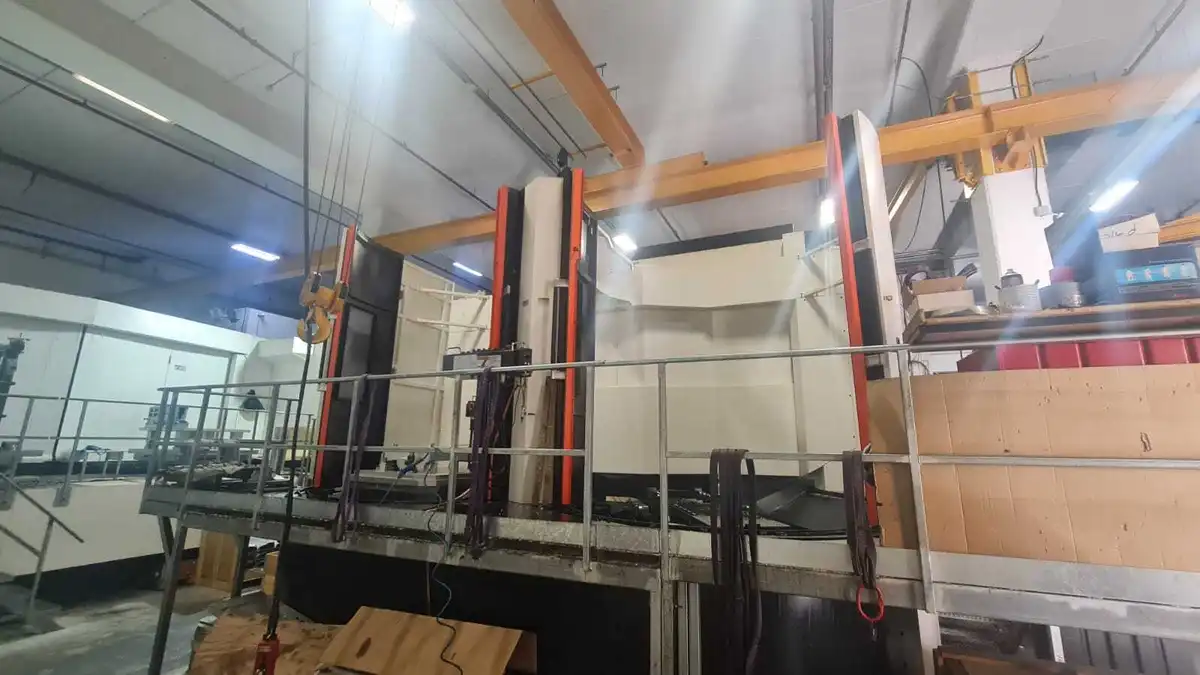

MAZAK INTEGREX E-1850/ V12-II, 5-AXIS MACHINING PACKAGE, 5-AXIS SPLINE INTERPOLATION, 80 TOOL HSK TOOL MAGAZINE, 213 PSI COOLANT THRU SPINDLE, ATLM AN DCHIP CONVEYOR.

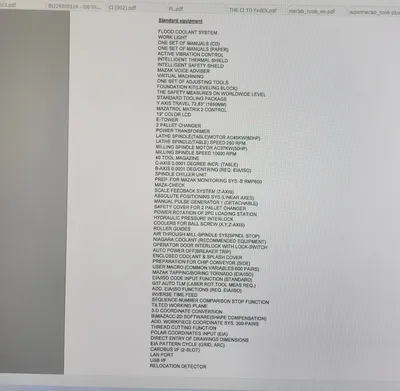

Standard equipment
FLOOD COOLANT SYSTEM WORK LIGHT
ONE SET OF MANUALS (CD) ONE SET OF MANUALS (PAPER) ACTIVE VIBRATION CONTROL INTELLIGENT THERMAL SHIELD INTELLIGENT SAFETY SHIELD MAZAK VOICE ADVISER VIRTUAL MACHINING
ONE SET OF ADJUSTING TOOLS FOUNDATION KIT(LEVELING BLOCK)
THE SAFETY MEASURES ON WORLDWIDE LEVEL STANDARD TOOLING PACKAGE
Y AXIS TRAVEL 72.83" (1850MM) MAZATROL MATRIX 2 CONTROL 19" COLOR LCD
E-TOWER
2 PALLET CHANGER POWER TRANSFORMER
LATHE SPINDLE(TABLE)MOTOR AC45KW(60HP) LATHE SPINDLE(TABLE) SPEED 250 RPM MILLING SPINDLE MOTOR AC37KW(50HP) MILLING SPINDLE SPEED 10000 RPM

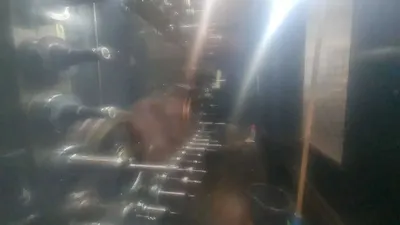

40 TOOL MAGAZINE
C-AXIS 0.0001 DEGREE INCR. (TABLE)
B-AXIS 0.0001 DEG/CNTRING (REQ. EIA/ISO) SPINDLE CHILLER UNIT
PREP. FOR MAZAK MONITORING SYS.-B RMP600 MAZA-CHECK
SCALE FEEDBACK SYSTEM (Z-AXIS) ABSOLUTE POSITIONING SYS (LINEAR AXES) MANUAL PULSE GENERATOR 1 (DETACHABLE) SAFETY COVER FOR 2 PALLET CHANGER POWER ROTATION OF 2PC LOADING STATION HYDRAULIC PRESSURE INTERLOCK
COOLERS FOR BALL SCREW (X,Y,Z-AXIS) ROLLER GUIDES
AIR THROUGH MILL-SPINDLE SYS(SPNDL STOP) NIAGARA COOLANT (RECOMMENDED EQUIPMENT) OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH AUTO POWER OFF(BREAKER TRIP)
ENCLOSED COOLANT & SPLASH COVER PREPARATION FOR CHIP CONVEYOR (SIDE) USER MACRO (COMMON VARIABLES:600 PAIRS) MAZAK TAPPING/BORING TORNADO (EIA/ISO) EIA/ISO CODE INPUT FUNCTION (STANDARD) G37.AUTO TLM (LASER ROT.TOOL MEAS.REQ.) ADD. EIA/ISO FUNCTIONS (REQ. EIA/ISO) INVERSE TIME FEED
SEQUENCE NUMBER COMPARISON STOP FUNCTION TILTED WORKING PLANE
3-D COORDINATE CONVERSION
B)MAZACC-2D SOFTWARE(SHAPE COMPENSATION) ADD. WORKPIECE COORDINATE SYS. 300-PAIRS THREAD CUTTING FUNCTION
POLAR COORDINATES INPUT (EIA)
DIRECT ENTRY OF DRAWINGS DIMENSIONS EIA PATTERN CYCLE (GRID, ARC)
CARDBUS I/F (2-SLOT) LAN PORT
USB I/F
RELOCATION DETECTOR
MAZATROL MATRIX CONTROL

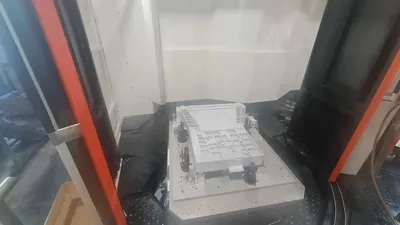

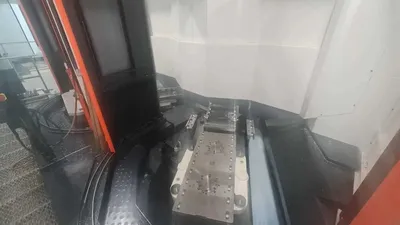

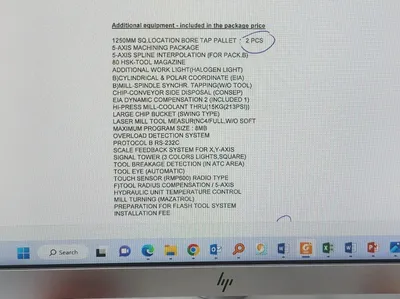

1250MM SQ. LOCATION BORE TAP PALLET(1 PCE 5-AXIS MACHINING PACKAGE
5-AXIS SPLINE INTERPOLATION (FOR PACK.B) 80 HSK-TOOL MAGAZINE
ADDITIONAL WORK LIGHT(HALOGEN LIGHT)
B)CYLINDRICAL & POLAR COORDINATE (EIA) B)MILL-SPINDLE SYNCHR. TAPPING(W/O TOOL) CHIP-CONVEYOR SIDE DISPOSAL (CONSEP) EIA DYNAMIC COMPENSATION 2 (INCLUDED 1) HI-PRESS MILL-COOLANT THRU(15KG(213PSI)) LARGE CHIP BUCKET (SWING TYPE)
LASER MILL TOOL MEASURE(NC4/FULL,W/O SOFT MAXIMUM PROGRAM SIZE : 8MB
OVERLOAD DETECTION SYSTEM PROTOCOL B RS-232C
SCALE FEEDBACK SYSTEM FOR X, Y-AXIS SIGNAL TOWER (3 COLORS LIGHTS, SQUARE) TOOL BREAKAGE DETECTION (IN ATC AREA) TOOL EYE (AUTOMATIC)
TOUCH SENSOR (RMP600) RADIO TYPE F)TOOL RADIUS COMPENSATION / 5-AXIS HYDRAULIC UNIT TEMPERATURE CONTROL MILL TURNING (MAZATROL)
PREPARATION FOR FLASH TOOL SYSTEM INSTALLATION FEE
MODIFICATION TO LOADING STATION (FOR 1500*2000MM WORKPIECE)
This modification is specifically designed for rectangular workpieces with its size of 1500mm x 2000mm, there will be limitations on the direction to fix the workpiece
During C-axis rotation, stroke will be limited to <-75mm to -2980mm on X-axis>. X-axis stroke will be decreased by 75mm to <0 to -2980mm>.
