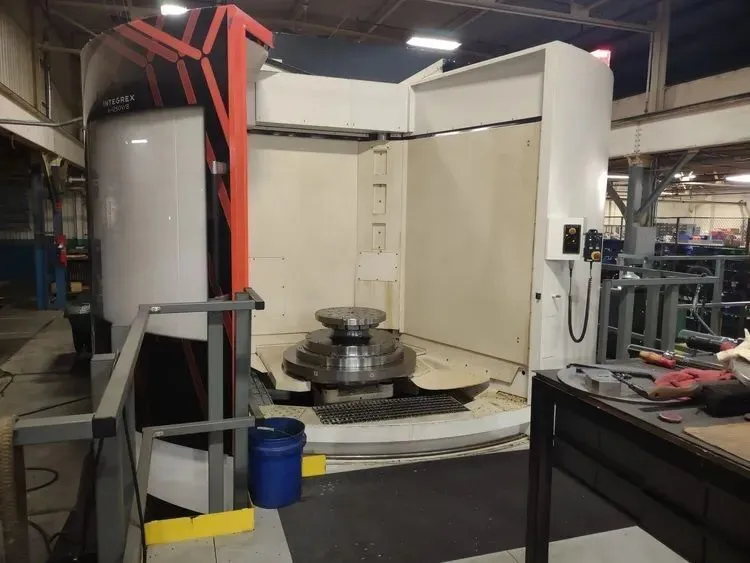

2019 MAZAK INTEGREX E-1250V/8

MAZATROL SMOOTH X CNC
19" COLOR LCD (TOUCH SCREEN)
MILLING SPINDLE MOTOR AC37KW(50HP)
MILLING SPINDLE SPEED 10000 RPM (311 FT-LBS 25%ED)
TOOL ID MAGAZINE TOUCH PANEL (EUCHNER)
LATHE SPINDLE(TABLE) SPEED 500 RPM
C-AXIS 0.0001 DEGREE INCREMENT (TABLE)
SAFETY COVER FOR 2 PALLET CHANGER
MANUAL ROTATION OF 2 PALLET CHANGER LOADING STATION
2 PALLET CHANGER
AUTO POWER ON/OFF + WARM-UP
MAZA-CHECK
EIA/ISO PACKAGE
SMOOTH STANDARD SOFTWARE FOR THE MACHINING CENTER
5-AXIS MACHINING PACKAGE FOR SMOOTHX
MAXIMUM PROGRAM SIZE: 8MB
SD MEMORY I/F(1-PORT) + USB I/F(1-PORT)
LAN PORT
USB I/F (1-PORT)
SMOOTH SYNCHRONOUS TAPPING (MILLING-SPINDLE)
F)TOOL RADIUS COMPENSATION / 5-AXIS (G41.5 / G42.5)
3-D COORDINATE CONVERSION
B)G00 SLOPE CONSTANT
INCH/METRIC CONVERSION
DIRECT ENTRY OF DRAWING DIMENSIONS
B)CYLINDRICAL (G07) & POLAR COORDINATE (G12)(EIA)
TOOL LENGTH COMP IN TOOL AXIS DIRECTION (G43.1)
ATC AUTO RECOVERY
MANUAL PULSE GENERATOR (WIRED/DETACHABLE)
SMOOTH RESTART FUNCTION
INTELLIGENT SAFETY SHIELD (AUTOMATIC & MANUAL OPERATION)
APC AUTO RECOVERY
RELOCATION DEVICE
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
AIR THROUGH MILL-SPINDLE SYSTEM (SPINDLE STOP)
15KG/213PSI THRU MILL SPINDLE COOLANT/FLOOD COOL. SIMUL-FLOW
PREP. FOR 1000PSI(70KG)COOLANT THRU MILL SPINDLE W/DRAW PUMP
NIAGARA COOLANT (RECOMMENDED EQUIPMENT)
DOUBLE INTERNAL CONVEYORS (WEAR-RESISTANT)
PREPARATION FOR CHIP CONVEYOR (SIDE)
STANDARD TOOLING PACKAGE
SPINDLE CHILLER UNIT
SCALE FEEDBACK SYSTEM FOR C-AXIS
B-AXIS 0.0001 DEGREE CONTOURING (REQUIRES EIA/ISO)
ABSOLUTE POSITIONING SYSTEM (LINEAR AXES)
SCALE FEEDBACK SYSTEM (Z-AXIS)
PREP. FOR MAZAK MONITORING SYS.-B RMP600
PREPARATION FOR FLASH TOOL SYSTEM
COOLERS FOR BALL SCREW (X,Y, Z-AXIS)
Miscellaneous
ONE SET OF MANUALS (CD)
ROLLER GUIDES
Y-AXIS TRAVEL 49.21" (1250MM)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
ENCLOSED COOLANT & SPLASH COVER
OPERATOR PLATFORM 90 DEGREES (FIXED IN MACHINE)
HYDRAULIC PRESSURE INTERLOCK
ELECTRICAL CONTROL BOX UL STANDARD(240V)
POWER TRANSFORMER FOR NORTH AMERICAN MARKET
162 TOOL MAGAZINE (HSK)
POWER ROTATION OF 2 PALLET CHANGER LOADING STATION
(2) 39.37"(1000MM) DIA. PALLET W/ LOC.BORE WITH TAPPED HOLES
OVERLOAD DETECTION SYSTEM
AUTO PECKING CYCLE WITH LOAD DETECTION
SMOOTH SET & INSPECT (INCLUDES SET&INSPECT & MAZAK I/F-NO056)
Chip Control and Coolant - Air
AIR-THRU MILL HEAD WHILE RUNNING WITH LUBRICATION
MIST COLLECTOR (GP3000)
MAZAK SUPER FLOW V8M VARIABLE HIGH-PRESSURE COOLANT UNIT
COOLANT TEMP CONTROL SYSTEM (WATER SOLUBLE)
CHIP CONVEYOR REAR LEFT DISPOSAL (CONSEP-2 WS)
WORK MEASURING SYSTEM RMP600
TOOL EYE (AUTOMATIC)
WORK-CENTERING INDICATOR STAND
SIGNAL TOWER (3 COLORS LIGHTS, SQUARE)
QUICK COOLANT STOP
