2001 SLANT TURN 60N
Have one to sell?
ConditionUsed
1 available
Mazak Slant 60N CNC Big Bore Lathe
Chuck Size: 33"
Swing Over Bed Ways: 36"
Max. Turning Diameter: 26.5"
Max. Turning Length: 78"
Spindle:
Speeds: 2 to 1,000 RPM
Bore: 14.76"
Nose: A2-20"
Main Motor: 60 HP
Turret:
Number of Positions: 15 Tools
Tailstock:
Stroke of Body: 70"
Stroke of Quill: 6.3"
Quil Diameter: 7"
Quill Taper: MT #6
Rapids:
Rapid Traverse (X & Z ): 475 / 640 IPM
Dimensions:
Floor Space (L x W x H): 158" x 320" x 116"
Weight (approx.): 36,960 lbs

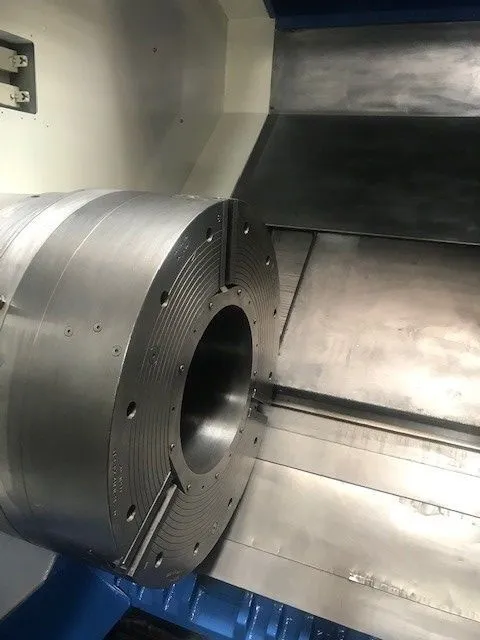

33” SMW BIG BORE AIR 3 JAW AIR CHUCK
Mazatrol PC-Fusion 640T Control
All Available Tooling
All Available Manuals
