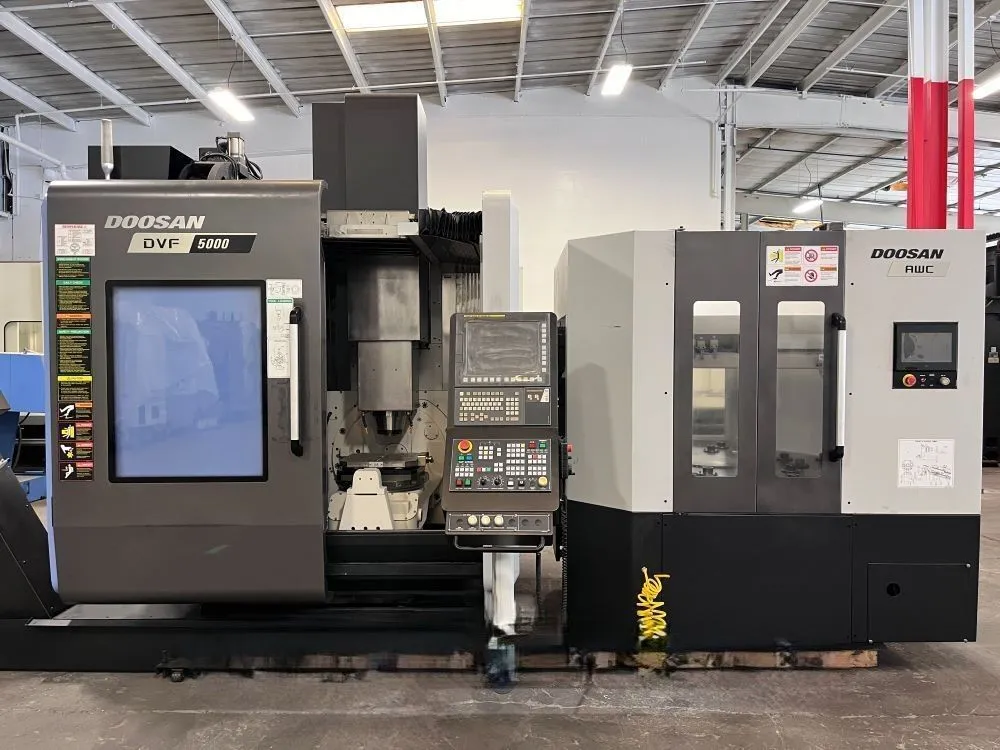

2021 DOOSAN DVF 5000/ 5 AXIS VMC/ 18K SPINDLE/ PROBE
Have one to sell?
ConditionUsed
1 available
2021 DOOSAN DVF 5000/ 6AWC - 5 AXIS VMC WITH FANUC 31i -B5 CONTROL, 120 POSITION ATC, 18,000 RPM SPINDLE, 19.7″ TRUNNION TABLE, COOLANT THRU SPINDLE AND LNS TURBO SUPER FINE CHIP CONVEYOR.
CUTTING FEED RATE 0.4 - 787 IPM
MAX TABLE CAPACITY 882 LBS
RAPID B AXIS 20 RPM
RAPID C AXIS 20 RPM
MAX TOOL DIAMETER 4.9″
MAX TOOL HEIGHT 11.8″
AIR REQUIRED 80 PSI, 4 SCFM
POWER 65 KVA / 220V / 3-PHASE
FANUC 31i -B5 CONTROL
6 AUTOMATIC WORKPIECE CHANGER – AWC
18,000 RPM HIGH-SPEED SPINDLE
BIG PLUS CAT-40 SPINDLE
120 STATION AUTOMATIC TOOL CHANGER
RENISHAW PROBING SYSTEM
TOOL PRESETTER
SPINDLE CHILLER UNIT
5 AXIS SIMULTANEOUS MACHINING
Ø 19.7″ TRUNNION TABLE
COOLANT THROUGH SPINDLE
PCMCIA CARD SLOT
THERMAL COMPENSATION
SPINDLE ORIENTATION
HELICAL INTERPOLATION
RIGID TAPPING
COOLANT SYSTEM
LNS CHIP CONVEYOR
2021 DOOSAN DVF 5000/ 6AWC - 5 AXIS VMC WITH FANUC 31i -B5 CONTROL, 120 POSITION ATC, 18,000 RPM SPINDLE, 19.7″ TRUNNION TABLE, COOLANT THRU SPINDLE AND LNS TURBO SUPER FINE CHIP CONVEYOR.
Imperial
| X Travel | 24.6" |
| Y Travel | 17.7" |
| Z Travel | 15.7" |
| Spindle Speed | 18000 rpm |
| Tool Capacity (ATC) | 120 |
| Table Size (W) | 19.7" |
| Table Size (L) | 17.7" |
| Main Spindle Motor | 25 hp |
| Spindle Taper | CAT 40 |
| Table Type C-Axis Table Rotation | 1 Degree Index |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| B-AXIS (Table Swivel) | 0 |
| Rapid Traverse Rates | 1575 ipm |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1575 IPM/ 1575 IPM/ 1575 IPM/ |
| Control | CNC (Fanuc 31i-B5) |
| Dimensions | 114" X 114" X 87" (W/O AWC) |
| Weight | 16,534 lbs (W/O AWC) |
CUTTING FEED RATE 0.4 - 787 IPM
MAX TABLE CAPACITY 882 LBS
RAPID B AXIS 20 RPM
RAPID C AXIS 20 RPM
MAX TOOL DIAMETER 4.9″
MAX TOOL HEIGHT 11.8″
AIR REQUIRED 80 PSI, 4 SCFM
POWER 65 KVA / 220V / 3-PHASE
FANUC 31i -B5 CONTROL
6 AUTOMATIC WORKPIECE CHANGER – AWC
18,000 RPM HIGH-SPEED SPINDLE
BIG PLUS CAT-40 SPINDLE
120 STATION AUTOMATIC TOOL CHANGER
RENISHAW PROBING SYSTEM
TOOL PRESETTER
SPINDLE CHILLER UNIT
5 AXIS SIMULTANEOUS MACHINING
Ø 19.7″ TRUNNION TABLE
COOLANT THROUGH SPINDLE
PCMCIA CARD SLOT
THERMAL COMPENSATION
SPINDLE ORIENTATION
HELICAL INTERPOLATION
RIGID TAPPING
COOLANT SYSTEM
LNS CHIP CONVEYOR
