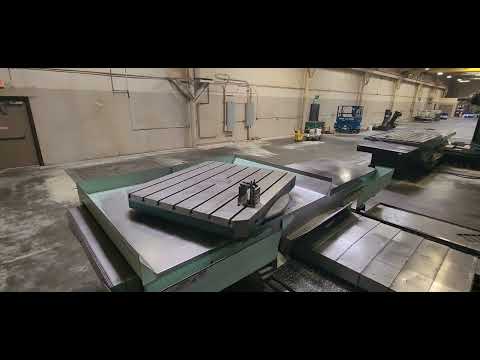

Kuraki KBT11WA CNC Boring Mill

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Document (1)

DLB1002+@00_1.pdf

Overview

Type:
BORING MILL HOR, TABLE & FLOOR TYPE CNC
Manufacturer:
KURAKI
Model:
KBT - 11WA
Year:
1997
Stock #:
210601
Status:
For Sale

Description

KURAKI KBT-11W WITH FANUC 16IM CNC CONTROL, 40-STATION AUTOMATIC TOOL CHANGER, B-AXIS TABLE AND HEIDENHAIN SCALE FEEDBACK ON XYZ.

Spindle Size4.33"109.98 mm
X-Horiz Tvl of Table78.74"2,000 mm
Y-Vert Tvl of Head59.06"1,500.1 mm
Power30 hp22.4 kW
RPM3,000 RPM3,000 RPM
Table-W55"1,397 mm
Table-L63"1,600.2 mm
Spindle Tvl.19.69"500.13 mm
ControlCNC (FANUC 16M)CNC (FANUC 16M)
Dimensions232.28" X 206.69" X 155.51"232.28" X 206.69" X 155.51"
Weight63,800 LBS.63,800 LBS.

SPINDLE INFEED TRAVEL, W-AXIS 19.69"
TABLE INFEED TRAVEL, Z-AXIS 57.09"
TABLE CAPACITY 14,300 LBS.
TABLE INDEXING 0.001 DEGREES
SPINDLE TAPER #50
SPINDLE MOTOR 30 HP/ 25 HP
RAPID TRAVERSE X, Y, Z 472.44 IPM,
RAPID TRAVERSE W 236.22 IPM

FANUC CONTROLLER 16M
FLOOD COOLANT
CHIP CONVEYOR
HEIDENHAIN SCALE FEEDBACK ON XYZ
