2021 DOOSAN PUMA 2600SY-II
Have one to sell?
ConditionUsed
1 available

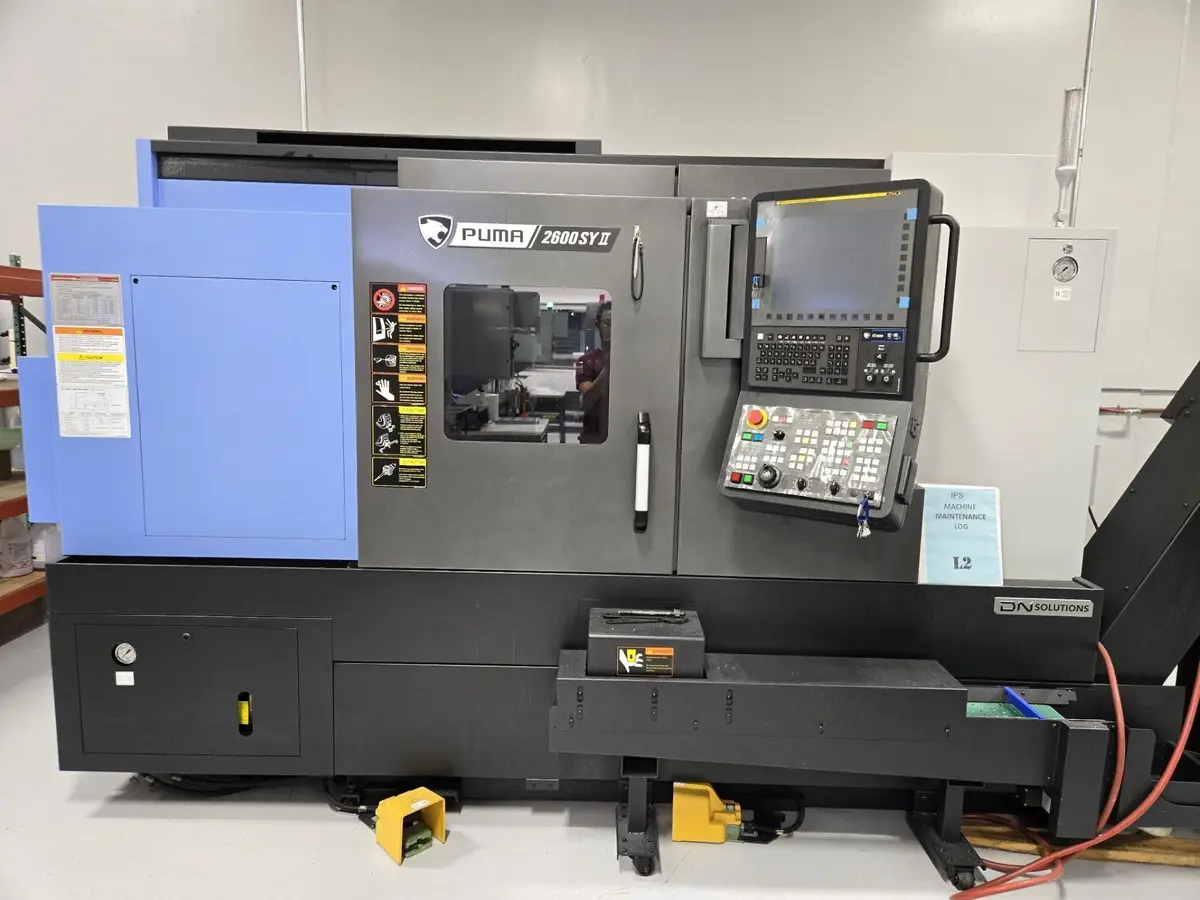

2022 DOOSAN PUMA 2600SY-II CNC Lathe, multi-axis, in like-new condition. Ideal for precision machining needs. Manufactured by DOOSAN, this 2022 model provides reliable performance for advanced industrial applications.
FANUC 0I PLUS CNC CONTROL
TURBO CHIP CONVEYOR
TOOL SETTER
PARTS CATCHER
PARTS CONVEYOR
ROYAL QG-80 COLLET CHUCK MAIN
ROYAL QG-65 COLLET CHUCK SUB
MISC COLLETS
3-JAW CHUCKS MAIN/SUB
BORING BAR DIAMETER: 2″
8 LIVE TOOLS
MISC OD & ID TOOL HOLDERS
VERY LOW HOURS, LIKE NEW
2022 DOOSAN PUMA 2600SY-II CNC Lathe, multi-axis, in like-new condition. Ideal for precision machining needs. Manufactured by DOOSAN, this 2022 model provides reliable performance for advanced industrial applications.
Imperial
| Maximum Swing | 30.7" |
| Max Turning Diameter | 14.8" |
| Main Spindle Bore/Max Bar Capacity | 3.6"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 29.9" |
| X-Axis Travel (X1, X2, X3) | 10.2" |
| Z-Axis Travel (Z1, Z2, Z3) | 32.7" |
| Y-Axis Travel (Y1, Y2, Y3) | 4.1" (+/- 2.1") |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.6" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.5 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Type | BMT65 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| Number of Available Live Tool Holders | 24 |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 0 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (FANUC 0i-PLUS) |
FANUC 0I PLUS CNC CONTROL
TURBO CHIP CONVEYOR
TOOL SETTER
PARTS CATCHER
PARTS CONVEYOR
ROYAL QG-80 COLLET CHUCK MAIN
ROYAL QG-65 COLLET CHUCK SUB
MISC COLLETS
3-JAW CHUCKS MAIN/SUB
BORING BAR DIAMETER: 2″
8 LIVE TOOLS
MISC OD & ID TOOL HOLDERS
VERY LOW HOURS, LIKE NEW
