2017 NAKAMURA-TOME WT 100MMY - 2 MACHINES AVAILABLE

2017 NAKAMURA-TOME WT 100MMY - 2 MACHINES AVAILABLE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Document (1)

#17-0407A WT100 Shaft Turnkey rev (002).pdf

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
NAKAMURA-TOME
Model:
WT 100MMY
Year:
2017
Stock #:
210605
Status:
For Sale

Description

SEE THE ATTACHED -PDF FOR THE COMPLETE PURCHASE AGREEMENT..SHOWING MACHINE PRICE AND ALL PURCHASED OPTIONS. WITH PRICING
Welcome a package deal!! CNC Lathes Multi-Axis, used, max swing 19.8", turning dia. 7.5", dual 6" hydraulic chucks, 6,000 RPM spindles, FANUC 31i-B control, chip conveyor, LNS Quick Load, Royal FX575 mist collector, 8MB storage.

Maximum Swing7.48"189.99 mm
Max Turning Diameter7.48"189.99 mm
Main Spindle Bore/Max Bar Capacity2.04"/ 1.65"2.04"/ 1.65"
Tail Stock/Sub SpindleSUB-SPINDLESUB-SPINDLE
Distance Between Centers28.94"735.08 mm
Maximum Cutting Length19.8"502.92 mm
X-Axis Travel (X1, X2, X3)5.31"/ 5.31"5.31"/ 5.31"
Z-Axis Travel (Z1, Z2, Z3)19.819.8
Y-Axis Travel (Y1, Y2, Y3)+/- 1.22"+/- 1.22"
Main Spindle Chuck Size6"152.4 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Maximum Bar Work1.65"41.91 mm
Main Spindle Speed6,000 RPM6,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)10/ 1510/ 15
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size1.65"1.65"
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)10/1510/15
Number of Turrets22
Turret Tool Positions 1, 22424
Turret Rotary Tool Spindle Speed 1, 250005000
B-Axis Travel20.620.6
Bar FeedYesYes
Chip ConveyorYesYes
Multi Tap TransformerYesYes

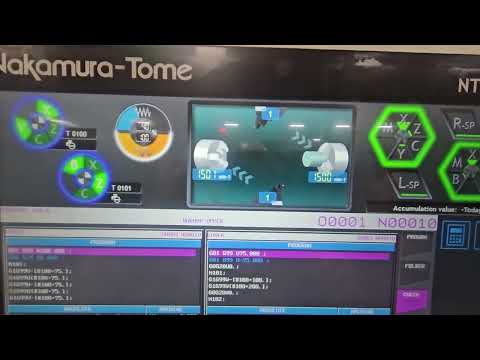

ControlCNC (FANUC 31i-B SmartX)CNC (FANUC 31i-B SmartX)
Dimensions103.5" x 63.9" x 76.4103.5" x 63.9" x 76.4
Weight12,540 LBS12,540 LBS

MAX TURNING DIAMETER 7.48"
MAX TURNING LENGTH 15.7"
SLIDE TRAVEL: X1/X2 6.2"/6.5"
SLIDE TRAVEL: Z1/Z2 18.3"
SLIDE TRAVEL Y+/- 1.3"
SLIDE TRAVEL B-AXIS 21.65"
SPINDLE SPEED 5,000 RPM
HOLE THROUGH DRAW TUBE 2"
C-AXIS INCREMENT .001 DEGREE
NUMBER DRIVER TOOL STATIONS. 2 X 12
DRIVE MOTOR LEFT SPINDLE 20/14 HP
DRIVE MOTOR RIGHT SPINDLE 14/10 HP

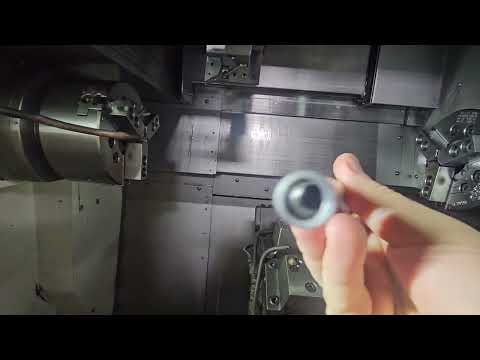

Opposed two-spindle, 2-turret construction
12 Station Turret with Half-Index Capability (48 total)
24 Milling tool stations
62mm Y-axis on Upper Turrets (+/ 31mm)
6000rpm Milling speed (Upper / Lower)
15 HP + 15 HP L/R spindle motor
9.7 HP C-Axis Milling Capable

FANUC 31i-B SmartX CONTROL
LNS TURBO CHIP CONVEYOR RH DISCHARGE
LNS QUICK LOAD SERVO S3
CAN FEED SLUGS AS SHORT AS 10" W/OPTIONS FOR SHORTER PARTS
TRIPLE ALARM LIGHT
KITAGAWA B206 6" CHUCK - 3-JAW
ROYAL FX575 MIST COLLECTOR - MACHINE MOUNTED
(02) LIVE FACE DRILLING HOLDERS -
(02) LIVE CROSS DRILLING HOLDERS
BLAZE AIR UNLOADING SYSTEM
EXPANDED PROGRAM STORAGE - 8MB
