Used 2022 HAFFNER MAC 440-30 | Must Move Immediately - Machining Centers - Vertical

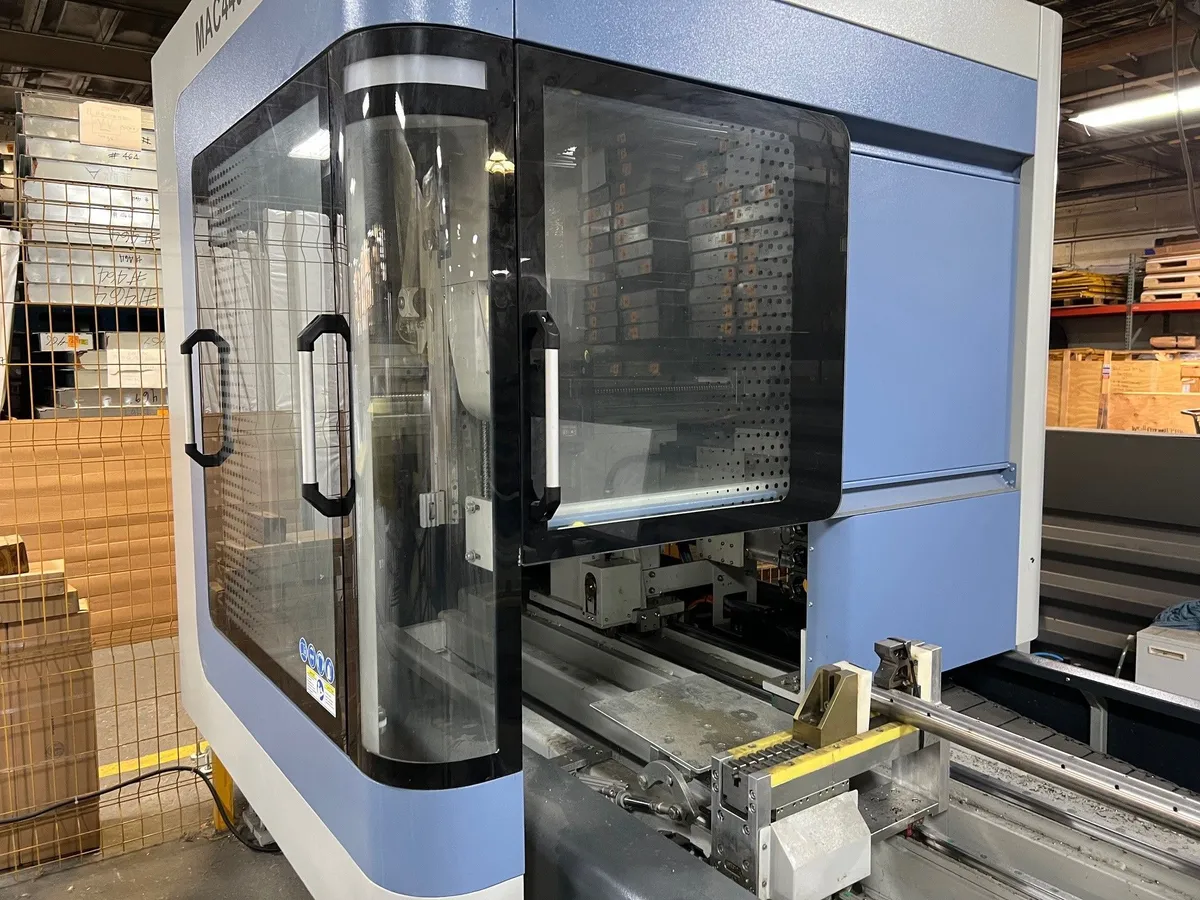

Haffner MAC 440-30. This is a 3-axis drill line press for aluminum.
There are 9 tool stations and 2 working stations of 12'
or one larger working station of 24'. This machine has just over 1600 hours on it and is fully CNC controlled. There is a hand held unit which you can control the machine with (Start, stop, and speed of machine) along with a computer where all programing can be done.
External profiles can be drawn and imported into the machine.

X-Axis Traverse Path: 181.10″ – 368.11″
Y-Axis Traverse Path: 36.61″
Z-Axis Traverse Path: 24.60″
Maximum Machinable Length: 161.41″ – 334.64″
Tool Stations: 9
Max Milling Blade Diameter: 5.90″
Number of Standard Pneumatic Clamps: 4 – 8
Number of Reference Stops: 2 Pneumatic
Adjustable Electro Spindle Motor: 0 – 24,000 RPM
Tool Holder: HSK-F63
Approx. Machine Dims: 437″ x 70.86″ x 90.55″
