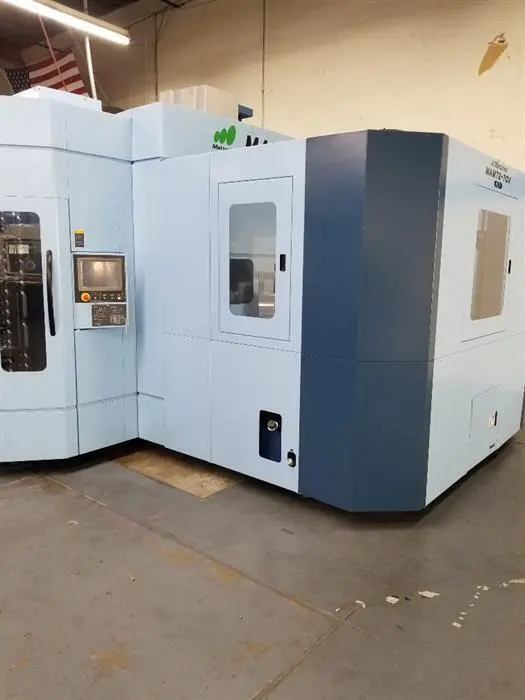

2021 MATSUURA MAM72-70V PC-6 CNC 5-AXIS MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2021 MATSUURA MAM72-70V PC-6 CNC 5-Axis Machining Center, vertical type. Manufactured by MATSUURA, this used machine offers advanced functionality and precision for your machining needs. Act quickly to enhance your manufacturing capabilities.
Weight On Table 1100 LBS.
Tool Diameter 3.77"
Tool Length 13.77"
Tool Weight 22 LBS.
MATSUURA G-TECH 30I CNC 5-AXIS CONTROL
20K RPM SPINDLE
300 WORK OFFSETS
3000 CUTTING HOURS
6 PALLET POOL
CONTROL MEMORY 8MB
MIST BLASTER 700
COOLANT THRU SPINDLE 1000 PSI
FANUC DATA SERVER
FANUC FOCAS PROTOCOL
G54.4 WORKPIECE SETTING ERROR COMPENSATION
G93 INVERSE FEED TIME
HIGH-SPEED HIGH PRECISION PACKAGE
IZ-2 1,000 BLOCK LOOK AHEAD HIGH-SPEED 5-AXIS PACKAGE
LINEAR SCALES X/Y/Z, INDUCTOSYN SCALES A/C AXIS
MICROFINE CHIP CONVEYOR WITH DRUM FILTER
OVERHEAD COOLANT FLUSH
RENISHAW IN PROCESS MEASURING SYSTEM
2021 MATSUURA MAM72-70V PC-6 CNC 5-Axis Machining Center, vertical type. Manufactured by MATSUURA, this used machine offers advanced functionality and precision for your machining needs. Act quickly to enhance your manufacturing capabilities.
Imperial
| X Travel | 47.24" |
| Y Travel | 28.34" |
| Z Travel | 27.95" |
| Spindle Speed | 20000 rpm |
| Tool Capacity (ATC) | 330 |
| Table Size (W) | 19.68" |
| Table Size (L) | 19.68" |
| Main Spindle Motor | 30 hp |
| 4th Axis Rotary Table Size | 19.68" |
| Built In or Bolt On Table | Integrated NC Rotary Table |
| Table Type A-Axis Trunnion Tilt Range | + 30 - 125 DEG. |
| Table Type C-Axis Table Rotation | .001 |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 1000 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Multiple Pallets | Yes |
| Palletech System Number of Pallets | 6 |
| Rapid Traverse Rates | 2362 ipm |
| Control | CNC (MATSUURA G-TECH 30I CNC 5-AXIS) |
| Weight | 45,000 LBS |
Weight On Table 1100 LBS.
Tool Diameter 3.77"
Tool Length 13.77"
Tool Weight 22 LBS.
MATSUURA G-TECH 30I CNC 5-AXIS CONTROL
20K RPM SPINDLE
300 WORK OFFSETS
3000 CUTTING HOURS
6 PALLET POOL
CONTROL MEMORY 8MB
MIST BLASTER 700
COOLANT THRU SPINDLE 1000 PSI
FANUC DATA SERVER
FANUC FOCAS PROTOCOL
G54.4 WORKPIECE SETTING ERROR COMPENSATION
G93 INVERSE FEED TIME
HIGH-SPEED HIGH PRECISION PACKAGE
IZ-2 1,000 BLOCK LOOK AHEAD HIGH-SPEED 5-AXIS PACKAGE
LINEAR SCALES X/Y/Z, INDUCTOSYN SCALES A/C AXIS
MICROFINE CHIP CONVEYOR WITH DRUM FILTER
OVERHEAD COOLANT FLUSH
RENISHAW IN PROCESS MEASURING SYSTEM
