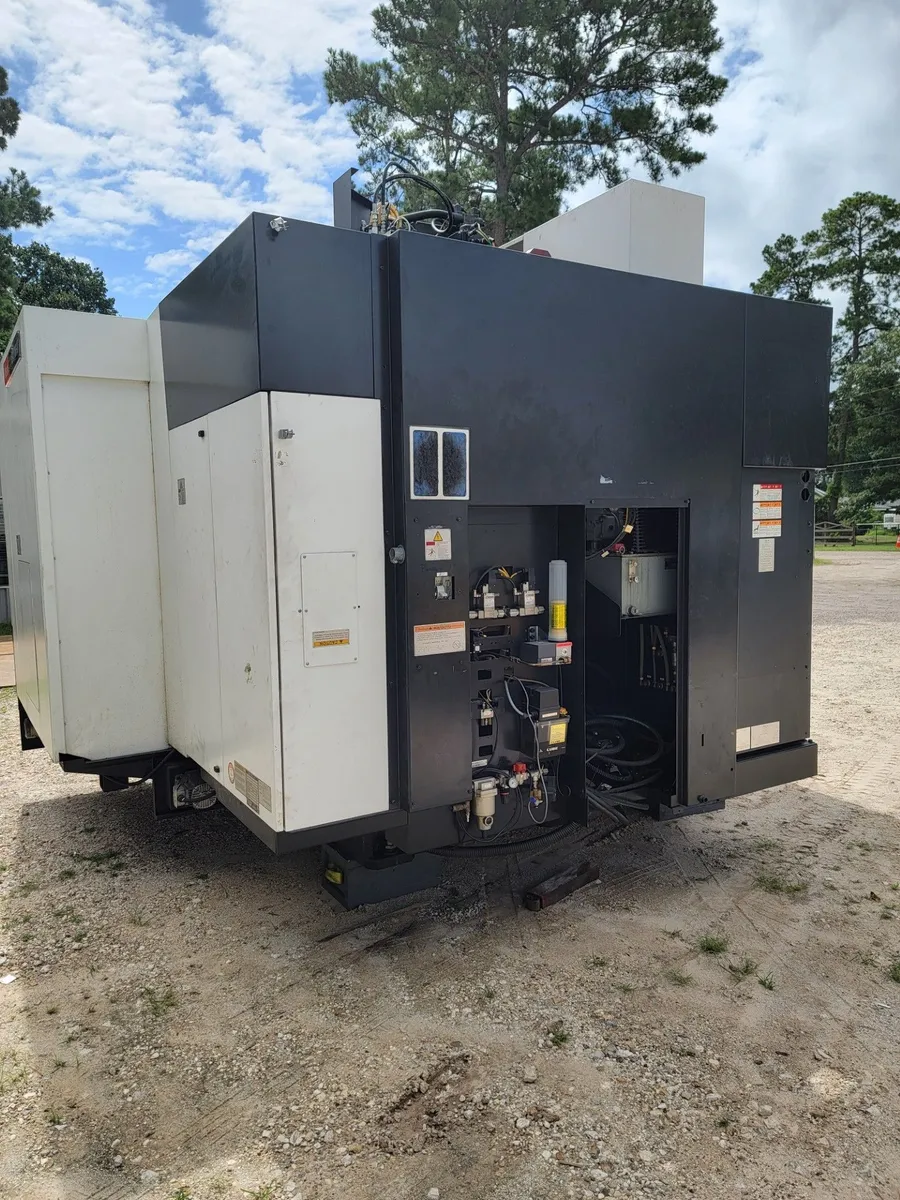

MAZAK VCN 700D /50 TAPER 4-AXIS CNC VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THIS VCN 700D IS A CAT 50/ 6000 RPM SPINDLE WITH A MAZAK MR 250 ROTARY TABLE , KITAGAWA TAILSTOCK, SYNCH TAPPING AND MAZATROL MATRIX CONTROL.
Table Load Capacity 2,640 lbs
Distance from Spindle C/L to Column 28.42″
Number of Spindle Ranges 2 (Auto Gear Shift)
MAZATROL MATRIX NEXUS CONTROL -
LAN PORT IN ELECTRICAL CABINET -
MT CONNECT PR
WORK LIGHT -
NORTH AMERICAN POWER TRANSFORMER -
RELOCATION DEVICE-
WINDOWS XP OPERATING SYS FOR MAZAK MACHINE CONTROL -
MX ROLLER GUIDE SYS
DUAL PROBING KIT OMP60/OTS AA W/EIA INSPECTION PLUS -
MT CONNECT ADAPTER SOFTWARE -
LEFT SIDE HINGE TYPE CHIP CONVEYOR FOR STEEL -
SYNCHRONIZED TAPPING
MAZAK MR-250RAM01 NC ROTARY TABLE PACKAGE - 9.13" 3-JAW MANUAL CHUCK SC-9T -
KITAGAWA TS-250 TAILSTOCK FOR MAZAK MR-250
THIS VCN 700D IS A CAT 50/ 6000 RPM SPINDLE WITH A MAZAK MR 250 ROTARY TABLE , KITAGAWA TAILSTOCK, SYNCH TAPPING AND MAZATROL MATRIX CONTROL.
Imperial
| X Travel | 60.24" |
| Y Travel | 27.55" |
| Z Travel | 25.59" |
| Spindle Speed | 6000 rpm |
| Tool Capacity (ATC) | 24 |
| Table Size (W) | 27.55" |
| Table Size (L) | 68.5" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 7.87″ Min ~ 33.46″ Max |
| 4 Axis Table Rotation | .001 N/C Contouring 360000 Degrees |
| 4th Axis Rotary Table Size | 10" |
| Coolant Thru High Pressure | No |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Chip Conveyor | YES |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 161.41″ X 137.24″ X 117.12" |
| Weight | 25,200 LBS |
Table Load Capacity 2,640 lbs
Distance from Spindle C/L to Column 28.42″
Number of Spindle Ranges 2 (Auto Gear Shift)
MAZATROL MATRIX NEXUS CONTROL -
LAN PORT IN ELECTRICAL CABINET -
MT CONNECT PR
WORK LIGHT -
NORTH AMERICAN POWER TRANSFORMER -
RELOCATION DEVICE-
WINDOWS XP OPERATING SYS FOR MAZAK MACHINE CONTROL -
MX ROLLER GUIDE SYS
DUAL PROBING KIT OMP60/OTS AA W/EIA INSPECTION PLUS -
MT CONNECT ADAPTER SOFTWARE -
LEFT SIDE HINGE TYPE CHIP CONVEYOR FOR STEEL -
SYNCHRONIZED TAPPING
MAZAK MR-250RAM01 NC ROTARY TABLE PACKAGE - 9.13" 3-JAW MANUAL CHUCK SC-9T -
KITAGAWA TS-250 TAILSTOCK FOR MAZAK MR-250
