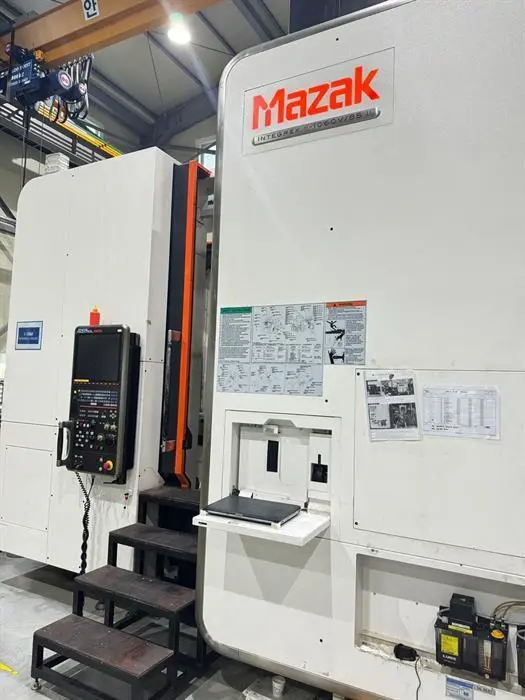

MAZAK INTEGREX e-1060V8 II
Have one to sell?
ConditionUsed
1 available
THIS INTEGREX e-1060/V8 IS A 5 AXIS VERTICAL WITH (2) 39.4" PALLETS. 120 TOOL ATC, 1000 PSI COOLANT THRU, 5 AXIS SIMULTANEOUS SOFTWARE, LASER PROBE AND MATRIX CONTROL.
Vertical Turning Table Size, Number Of Tables 39.3"
Vertical Turning Spindle Speed 500 RPM
Table Spindle HorsePower Vertical Turning 50 HP
Tool Diameter 5.31", 10.24"
Tool Length 19.69"0
Tool Weight 66 LBS
MAZAK MAZATROL NEXUS 5 AXIS CNC COLOR CONTROL
3-D CO-0R ROT., AUTO TLM, POLAR COORDINATES INPUT, COMPARISON STOP, SYNC. CONT., G54.1 CHIP CONVEYOR
COOLANT THRU SPINDLE 1000 PSI
CYLINDER, SIMULTANEOUS 5 AXIS, EIA HELICAL TAP CYCLE,
EIA PATTERN CYCLE, TILTED WORK PLANE, TABLE UNBALANCE DETECT, 5 AXIS TOOL COMP
EIA, HIGH SMOOTHING CONTROL, EIA 3D COMP, ROTATION, GEOMETRIC
ETHERNET RUNNING, TOOL CENTER POINT CONTROL, PROGRAM MEMORY EXPANSION,
MILL-TURN MAZATROL
E-TOWER
HAND-HELD MPG
HIGH SPEED, SHAPE COMP., THREAD, INVERSE TIME, DYNAMIC COMPENSATION
LASER TOOL LENGTH MEASUREMENT
RENISHAW PROBING
SCALING, EXT-DATA I/O
SPINDLE CHILLER
STAIRS AND PLATFORM
SYNC MILL TAP, ROT-AXIS SHAPE COMP, GOO SLOPE CONST., SCALE FEEDBACK, VARIABLE 600 SETS
THIS INTEGREX e-1060/V8 IS A 5 AXIS VERTICAL WITH (2) 39.4" PALLETS. 120 TOOL ATC, 1000 PSI COOLANT THRU, 5 AXIS SIMULTANEOUS SOFTWARE, LASER PROBE AND MATRIX CONTROL.
Imperial
| X Travel | 66.7" |
| Y Travel | 41.73" |
| Z Travel | 52.95" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 80 |
| Table Size (W) | 39.4" |
| Table Size (L) | 39.4" |
| Main Spindle Motor | 50 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | - 9.84" ~ 43.11" |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Table Type A-Axis Trunnion Tilt Range | - 30 + 120 DEGREES |
| Table Type C-Axis Table Rotation | .001 N/C Contouring 360000 Degrees |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 1000 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Multiple Pallets | Yes |
| Palletech System Number of Pallets | 2 |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1575, 1575, 1575 IPM |
| Chip Conveyor | yes |
| Control | CNC (MAZATROL MATRIX 5-AXIS) |
| Weight | 79,366 LBS. |
Vertical Turning Table Size, Number Of Tables 39.3"
Vertical Turning Spindle Speed 500 RPM
Table Spindle HorsePower Vertical Turning 50 HP
Tool Diameter 5.31", 10.24"
Tool Length 19.69"0
Tool Weight 66 LBS
MAZAK MAZATROL NEXUS 5 AXIS CNC COLOR CONTROL
3-D CO-0R ROT., AUTO TLM, POLAR COORDINATES INPUT, COMPARISON STOP, SYNC. CONT., G54.1 CHIP CONVEYOR
COOLANT THRU SPINDLE 1000 PSI
CYLINDER, SIMULTANEOUS 5 AXIS, EIA HELICAL TAP CYCLE,
EIA PATTERN CYCLE, TILTED WORK PLANE, TABLE UNBALANCE DETECT, 5 AXIS TOOL COMP
EIA, HIGH SMOOTHING CONTROL, EIA 3D COMP, ROTATION, GEOMETRIC
ETHERNET RUNNING, TOOL CENTER POINT CONTROL, PROGRAM MEMORY EXPANSION,
MILL-TURN MAZATROL
E-TOWER
HAND-HELD MPG
HIGH SPEED, SHAPE COMP., THREAD, INVERSE TIME, DYNAMIC COMPENSATION
LASER TOOL LENGTH MEASUREMENT
RENISHAW PROBING
SCALING, EXT-DATA I/O
SPINDLE CHILLER
STAIRS AND PLATFORM
SYNC MILL TAP, ROT-AXIS SHAPE COMP, GOO SLOPE CONST., SCALE FEEDBACK, VARIABLE 600 SETS
