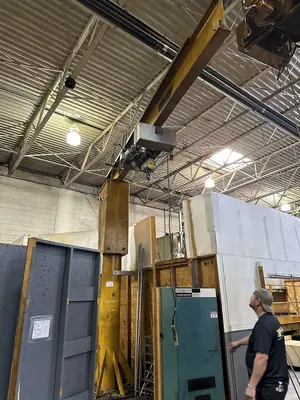

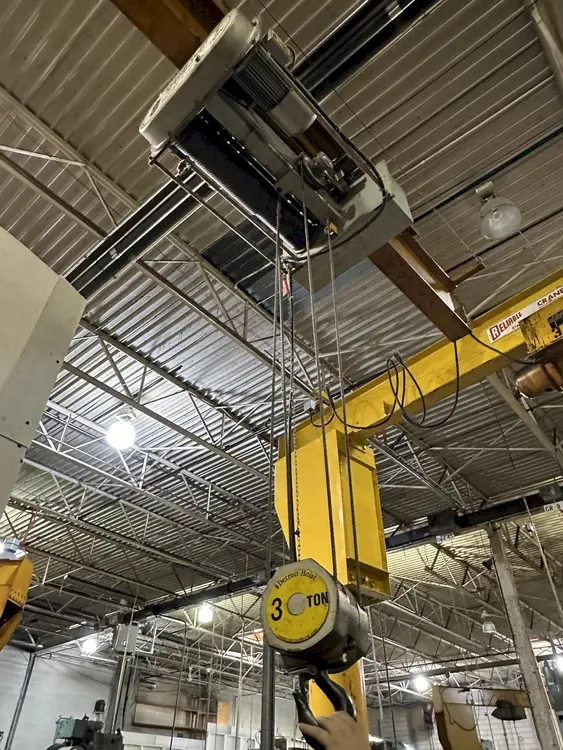

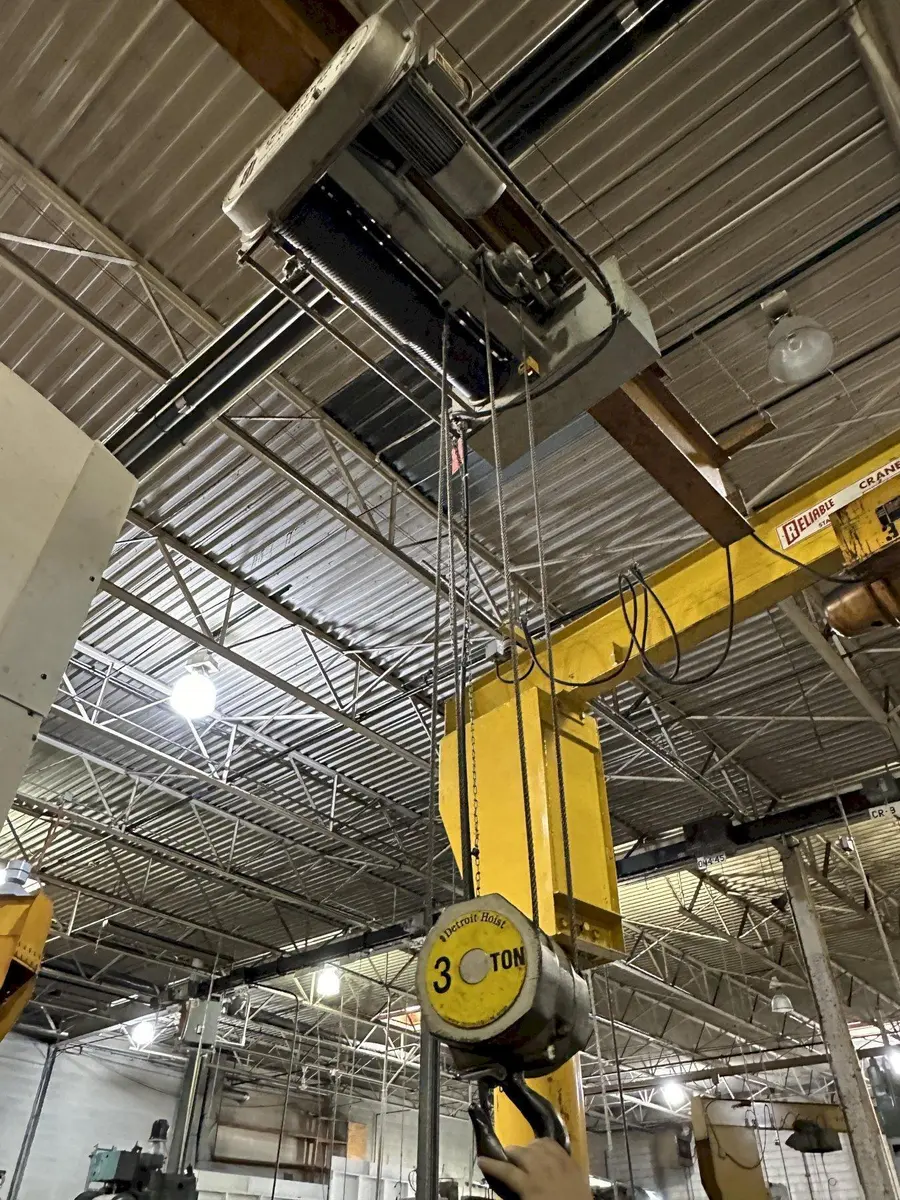

JIB CRANE

ARM ROTATES ....................... 360 DEGREE
LENGTH OF ARM ..................... 18'
HOIST TRAVEL ON ARM ............... 15'
DISTANCE BOTTOM OF ARM TO FLOOR ... 15'
COLUMN DIAMETER ................... 25"
FLOOR MOUNT ....................... BASE PLATE
BASE DIAMETER ..................... 54"
NUMBER OF MOUNTING HOLES .......... 12

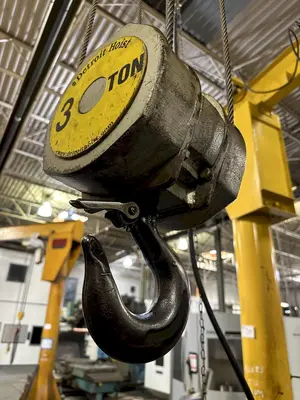

DETROIT HOIST:
SERIAL ............................ 149598
TYPE .............................. CABLE
HOIST CAPACITY .................... 6000 LBS (3 TON)
HOIST LIFT SPEED .................. 5 & 16 FPM
POWER TROLLEY SPEED ............... 40 FPM
PENDANT CONTROL ................... 6 BUTTON
TROLLEY MOTOR ..................... 1/2 HORSEPOWER
HOIST MOTOR ....................... 1-1/2 HORSEPOWER
