2012 Femco BMC-110T2 CNC Horizontal Boring Mill, 4.33"
Have one to sell?
ConditionUsed
1 available
2012 FEMCO BMC-110T2 CNC Horizontal Boring Mill, used. Key Specs: 4.33" spindle, 78.74" cross travel, 82.5" vertical travel, 26 HP, 2,500 RPM, 90-tool ATC option. Equipped with FANUC 32I control. Ideal for precise machining tasks.
TABLE CROSS TRAVEL (X-AXIS) 78.74″
HEADSTOCK TRAVEL (Y-AXIS) 80.7″
TABLE LONGITUDINAL TRAVEL (Z-AXIS) 59.05″”
TABLE:
TABLE SIZE 56.69″ X 62.99″
TABLE LOAD 17,600 LBS
SPINDLE:
BAR DIAMETER 8.86″
STROKE (W-AXIS) 19.69″
TAPER ISO #50 WITH POWER OPERATED DRAWBAR
TOOL SHANK CT50 (BT50 OPTIONAL)
PULL STUD (OPTION MAS-I) MAS-II 60 DEG
MOTOR (CONTINUOUS/30 MIN RATED) AC 22/26 KW (29.5 / 35 HP)
SPEED RANGER-LOW STEPLESS 5 – 454 RPM
SPEED RANGER-HIGH STEPLESS 455 -2500 RPM

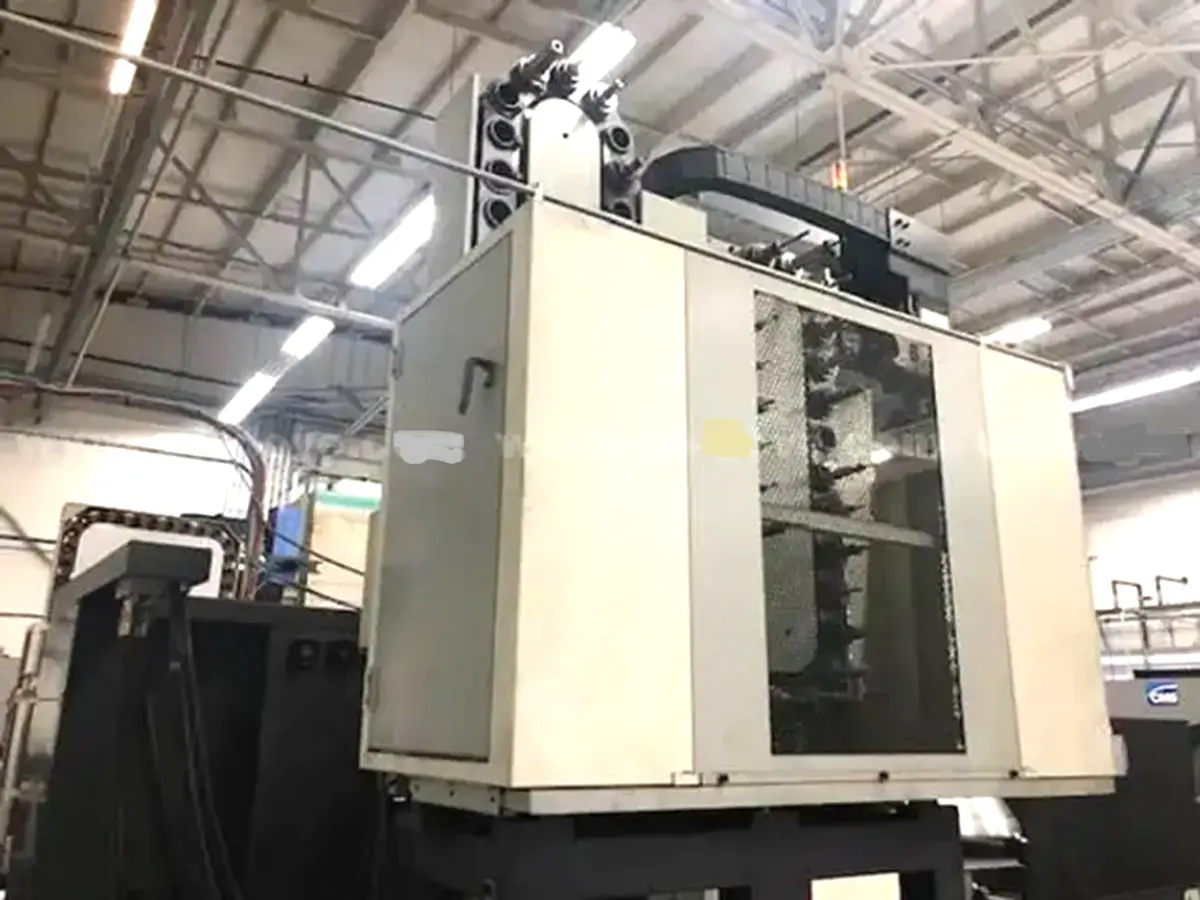

AUTOMATIC TOOL CHANGER (ATC):
TOOL STORAGE CAPACITY 90 ATC OPTION
MAX. TOOL DIAMETER (ADJACENT PODS FULL) 4.9″
MAX. TOOL DIAMETER (ADJACENT PODS EMPTY)9.8″
MAX. TOOL LENGTH 15.75″
MAX. TOOL WEIGHT 55 LBS.
TOOL TO TOOL EXCHANGING TIME 13 SEC
TOOL SELECTION METHOD: AUTOMATIC SELECTION OF THE SHORTEST ROUTE
POSITIONING SERVO MOTOR:
X-AXIS 8 HP
Y-AXIS 9.4 HP
Z-AXIS 8 HP
W AXIS 5.4 HP
ROTARY TABLE 5.4 HP
FEED RATE IN ALL AXES 0 – 197″ MM/MIN (STEPLESS)
CONTROL:
POSITIONING ACCURACY X, Y, Z, W-AXIS 0.025/300MM (0.001″/11.81″)
REPEATABILITY X, Y, Z, AND W-AXIS ±0.01MM (±0.0004″)
CONTROL AXES 5
W-AXIS 4
B-AXIS 5
RAPID TRAVERSE RATE
X-, Y-, Z-AXIS 394″ IPM
W-AXIS 157″ IPM
RAPID ROTATION OF ROTARY TABLE 3 RPM
POWER REQUIREMENTS 220 VOLTS 3 PHASE 60 CYCLE 200 AMPS
440 VOLT TRANSFORMER ON REQUEST
FANUC 32I CONTROL…$ 15,500.00
CONTROLLED 5 AXES
SIMULTANEOUS CONTROLLABLE 4 AXES
REFERENCE POINT RETURN (G27, G28)
LINEAR INTERPOLATION
CIRCULAR INTERPOLATION
10.4” CRT/MDI (SMALL TYPE) / (FULL KEY)
REGISTERED PROGRAMS 63
PART PROGRAM STORED LENGTH 80M
SEQUENCE NUMBER SEARCH
PROGRAM NUMBER SEARCH
MANUAL PULSE GENERATOR
EXTERNAL WORK NUMBER SEARCH
PROGRAM PROTECT
INCH/METRIC SWITCHING
MACHINE LOCK
BACKLASH COMPENSATION
PROGRAM PROTECT SIGNAL
SELF-DIAGNOSIS FUNCTION
READ/PUNCHER INTERFACE
DIRECT INPUT OF MEAS. WORK COORD. SYS. SHIFT
EIA/ISO AUTOMATIC RECOGNITION
MIRROR IMAGE
ACTUAL SPEED DISPLAY
WORK COORDINATE SYSTEM G54 – G59
CANNED CYCLE FOR HOLE MACHINING
TOOL COMPENSATION MEMORY 99 SETS
SADDLE SLIDEWAY COVER
WORKING LIGHT
ANCHORS AND LEVELS FOR INSTALLATION
ROTARY TABLE, 90 DEGREE PRECISION INDEXING
TABLE SLIDEWAY COVER
X-, Y-, Z-AXES BALL SCREW COVER
HEADSTOCK COOLING SYSTEM
OPERATOR’S MANUAL
SPINDLE EXTENSION SLEEVE 300MM…$1,500.00
CHIP CONVEYOR…INCLUDED
FANUC 32I CONTROL…$ 15,500.00
90 TOOL ATC…$ 60,000.00
COOLANT THRU SPINDLE…INCLUDED
