2021 MAZAK QT EZ-8MSY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QT EZ-8MSY
Year:
2021
Stock #:
210622
Status:
For Sale

Description

2021 MAZAK QT EZ-8MSY CNC Lathe, multi-axis, equipped with MAZATROL SmoothEZ Control, live tooling, including sub-spindle, chip conveyor, and tool setter. Max swing 27.4", turning diameter 13.5", main spindle 5000 RPM. Perfect for precision tasks.

Maximum Swing27.4"695.96 mm
Max Turning Diameter13.5"342.9 mm
Main Spindle Bore/Max Bar Capacity2.5"/ 2"2.5"/ 2"
Tail Stock/Sub SpindleSub SpindleSub Spindle
X-Axis Travel (X1, X2, X3)8.58.5
Z-Axis Travel (Z1, Z2, Z3)23.7523.75
Y-Axis Travel (Y1, Y2, Y3)+/-2 (4")+/-2 (4")
C-Axis Indexing (1, 2).001.001
W-Axis Travel Sub Spindle22.87 in
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.5"63.5 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)2020
Sub Spindle/2nd Spindle Chuck Size55
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)2020
Number of Turrets11
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 260006000
Turret Rotary Tool Horse Power 1, 27.57.5
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
ControlCNC (Mazatrol SmoothEZ)CNC (Mazatrol SmoothEZ)
Dimensions102.4 x 75 x 67.9102.4 x 75 x 67.9
Weight12,125 LBS.12,125 LBS.

MAZATROL SmoothEZ CONTROL
LIVE TOOLING
SUIB-SPINDLE

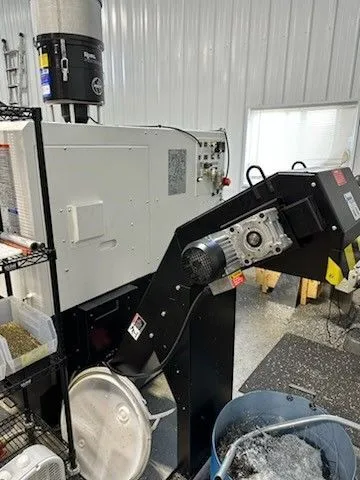

CHIP CONVEYOR
TOOL SETTER
