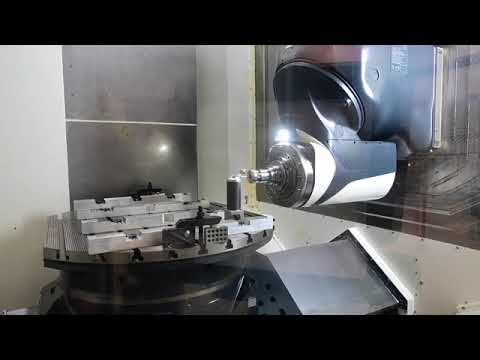

2018 DMG MORI DMU 100P DUOBLOCK
Have one to sell?
ConditionUsed
1 available
DMG Mori DMU-100P 5-Axis Machining Center, Mfg. 2018, 12,000 RPM, HSK-A 100 Taper, 63 ATC, Heidenhain TNC-640 Control, Low Hours
TABLE SIZ 43.3" X 35.4"
TABLE SPEEDS 35 RPM
MAXIMUM TABLE LOAD 4,900 LBS
B-AXIS SWIVELING MILLING
HEAD SWIVEL RANGE -30 TO 180 DEGREES
HEIDENHAIN TNC-640 3D CONTROL
UNIVERSAL HEAD WITH CONTROLLED B-AXIS
COOLANT THRU-SPINDLE (80 BAR)
PROBING
TOOL MEASUREMENT
3D QUICKSET
CHIP CONVEYOR
DMG Mori DMU-100P 5-Axis Machining Center, Mfg. 2018, 12,000 RPM, HSK-A 100 Taper, 63 ATC, Heidenhain TNC-640 Control, Low Hours
Imperial
| X-AXIS TRAVEL | 39.4" |
| Y-AXIS TRAVEL | 49.2" |
| Z-AXIS TRAVEL | 39.4" |
| SPINDLE TAPER | HSK 100 |
| SPINDLE DRIVE MOTOR | 69 hp |
| SPINDLE SPEED | 12000 rpm |
| TOOL CAPACITY (ATC) | 63 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 43.3" x 35.4" |
| Number of Axis | 5 |
| PALLET LOAD CAPACITY | 4900 lb |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 1000 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC (HEIDENHEIM TNC 640 3D CONTROL) |
| Weight | 54,100 LBS. |
TABLE SIZ 43.3" X 35.4"
TABLE SPEEDS 35 RPM
MAXIMUM TABLE LOAD 4,900 LBS
B-AXIS SWIVELING MILLING
HEAD SWIVEL RANGE -30 TO 180 DEGREES
HEIDENHAIN TNC-640 3D CONTROL
UNIVERSAL HEAD WITH CONTROLLED B-AXIS
COOLANT THRU-SPINDLE (80 BAR)
PROBING
TOOL MEASUREMENT
3D QUICKSET
CHIP CONVEYOR
