MAZAK VARIAXIS i-800 MULTI AXIS VERTICAL WITH PALLET CHANGER
Have one to sell?
ConditionUsed
1 available

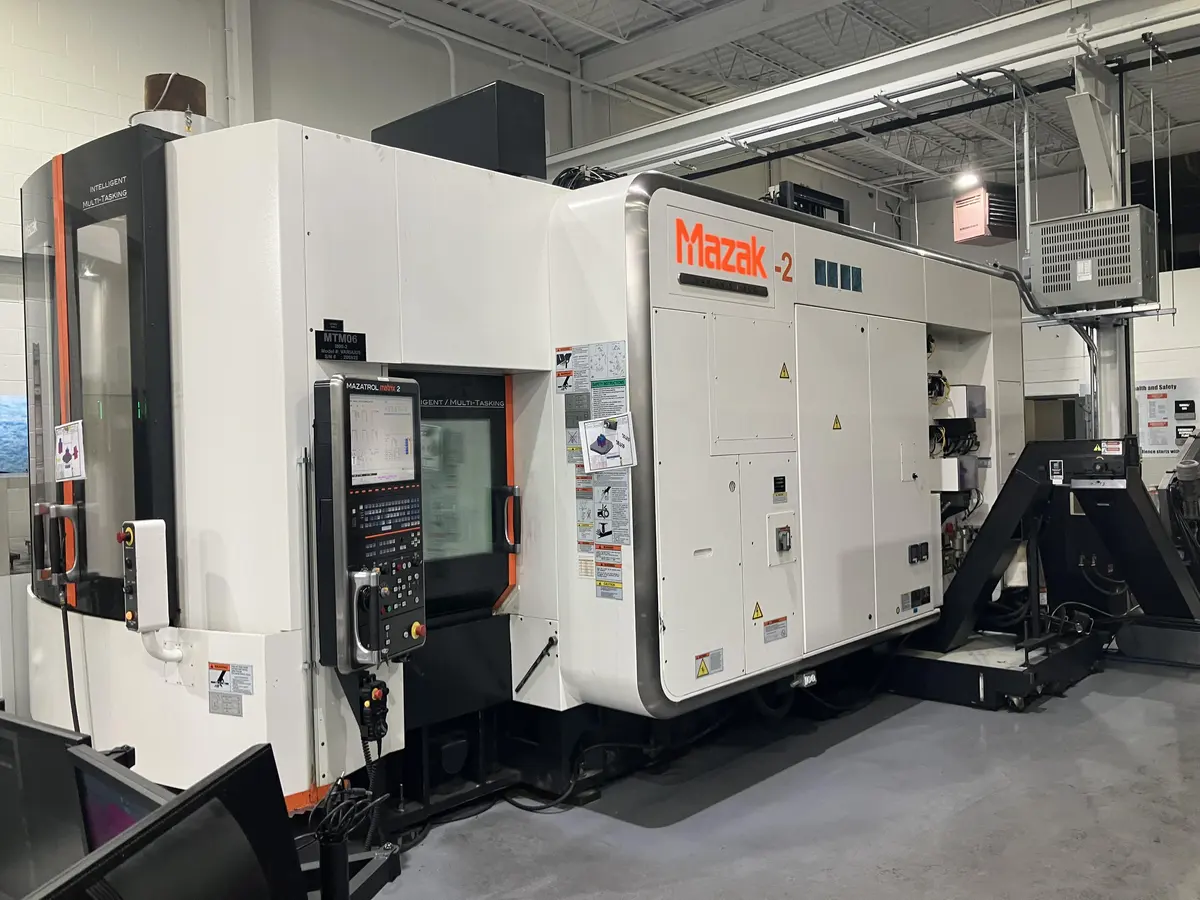

2014 MAZAK VARIAXIS I-800 5-axis Machining Center
Matrix 2 Control, 10K RPM, Dual 31" Pallets, 1000 PSI coolant-thru - Excellent Condition!
MAX WORKPIECE SIZE: 28.74” DIA X 19.69” HEIGHT
MAX. TOOL DIAMETER WITH ADJACENT POCKETS OCCUPIED: 4.92” / 8.27”
MAX. TOOL LENGTH: 15.75”

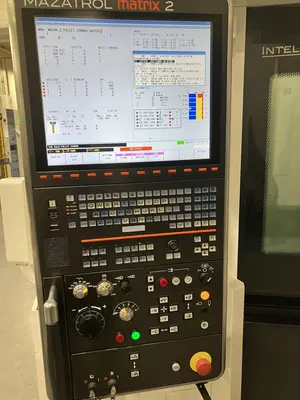

MAZAK MATRIX 2 CNC CONTROL
5-AXIS MACHINING PACKAGE TRUNION TYPE DUAL SUPPORT BEARING
ADDITIONAL WORK LIGHT
WORK MEASURING SYSTEM RMP600 READY
2-PALLET CHANGER
120-TOOL DOUBLE MAGAZINE (60 X 2)
MANUAL PULSE GENERATOR (1 DIAL) PALM SIZE
MAYFRAN CONSEP 2000 CHIP CONVEYOR SIDE DISPOSAL
PRESSURE SWITCH FOR SPINDLE THROUGH COOLANT
FLOOD COOLANT
WORKPIECE CLEANING COOLANT
MAZAK SUPER FLOW T8 HIGH PRES. COOLANT UNIT (1000PSI/8GPM)
2014 MAZAK VARIAXIS I-800 5-axis Machining Center
Matrix 2 Control, 10K RPM, Dual 31" Pallets, 1000 PSI coolant-thru - Excellent Condition!
Imperial
| X Travel | 28.74" |
| Y Travel | 33.46" |
| Z Travel | 22.05" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 120 |
| Table Size (W) | 19.69" |
| Table Size (L) | 19.69" |
| Main Spindle Motor | 50 hp |
| Spindle Taper | HSK 100 |
| Spindle Nose To Table Top | 9.06” TO 31.10” (POSITIONED HORIZONTALLY)/ 7.09” TO 29.13” (POSITIONED VERTICALLY) |
| Table Type A-Axis Trunnion Tilt Range | -120° to +30° (Indexing in units of 0.0001Deg) |
| Table Type C-Axis Table Rotation | N/C Contouring |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 1000 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Multiple Pallets | Yes |
| Rapid Traverse Rates | 1653 |
| Chip Conveyor | YES |
| Control | CNC (Mazatrol Matrix 2) |
| Dimensions | 235" x 140" x 141 |
| Weight | 46,297 |
MAX WORKPIECE SIZE: 28.74” DIA X 19.69” HEIGHT
MAX. TOOL DIAMETER WITH ADJACENT POCKETS OCCUPIED: 4.92” / 8.27”
MAX. TOOL LENGTH: 15.75”
MAZAK MATRIX 2 CNC CONTROL
5-AXIS MACHINING PACKAGE TRUNION TYPE DUAL SUPPORT BEARING
ADDITIONAL WORK LIGHT
WORK MEASURING SYSTEM RMP600 READY
2-PALLET CHANGER
120-TOOL DOUBLE MAGAZINE (60 X 2)
MANUAL PULSE GENERATOR (1 DIAL) PALM SIZE
MAYFRAN CONSEP 2000 CHIP CONVEYOR SIDE DISPOSAL
PRESSURE SWITCH FOR SPINDLE THROUGH COOLANT
FLOOD COOLANT
WORKPIECE CLEANING COOLANT
MAZAK SUPER FLOW T8 HIGH PRES. COOLANT UNIT (1000PSI/8GPM)
