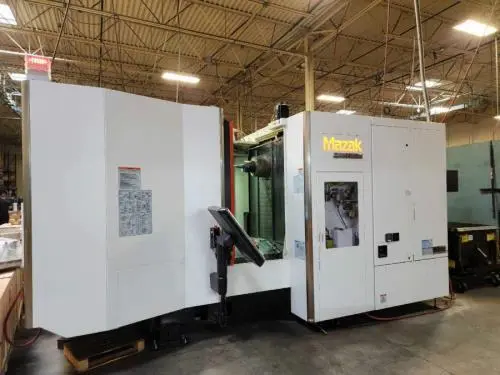

MAZAK HCN 5000/ 4 AXIS HMC WITH MAZATROL SMOOTH G CONTROL

MAZAK HCN 5000/ 4 AXIS HMC WITH MAZATROL SMOOTH G CONTROL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAZAK
Model:
HCN 5000/ 4 AXIS
Condition:
Excellent
Year:
2021
Stock #:
210630
Status:
For Sale

Description

2021 Mazak HCN 5000/4 Axis HMC with Mazatrol Smooth G Control. Features include 28.74" X/Y travel, 31.5" Z travel, CAT 40 spindle, 18000 rpm, 120 tool capacity, dual pallets, 1102 lb load, and hi-pressure coolant. Ideal for precision machining.

X-AXIS TRAVEL28.74"730 mm
Y-AXIS TRAVEL28.74"730 mm
Z-AXIS TRAVEL31.5"800.1 mm
SPINDLE TAPERCAT 40CAT 40
SPINDLE DRIVE MOTOR40 hp
SPINDLE SPEED18,000 RPM18000 rpm
MAX WORKPIECE SIZE39.37"39.37"
MAXIMUM WORKPIECE DIAMETER31.5"800.1 mm
RAPID TRAVERSE23622362
TOOL CAPACITY (ATC)120120
NUMBER OF PALLETS22
PALLET SIZE500 mm500 mm
PALLET SIZE (W)19.69"500.13 mm
PALLET SIZE (L)19.69"500.13 mm
Number of Axis44
PALLET LOAD CAPACITY1102 lb
4 AXIS PALLET TABLE INDEXINGN/C ContouringN/C Contouring
PART PROBENONO
TOOL PROBE/AUTO TOOL LENGTH MEASUREYesYes
HI-PRESSURE COOLANT SYSTEM213 psi
CHIP CONVEYORYesYes
ControlCNC (MAZATROL SMOOTH G)CNC (MAZATROL SMOOTH G)
Weight27,720 LBS27,720 LBS

DISTANCE FROM C SURFACE TO SPINDLE CENTER: 3.94" - 32.68"
DISTANCE FROM TABLE TOP SPINDLE NOSE: 2.76" - 34.25"
MAXIMUM TOOL DIAMETER: 3.74"
MAX TOOL DIA ADJACENT POCKET EMPTY: 6.69"
MAXIMUM TOOL LENGTH: 20.08"
MAXIMUM TOOL WEIGHT: 26 LB

MAZATROL SMOOTH G
213 PSI COOLANT THRU SPINDLE
CHIP CONVEYOR
RENISHAW PROBE
LOSMA GALILEO MIST COLLECTOR
