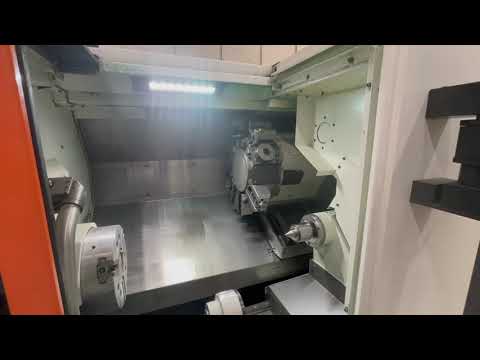

2020 MAZAK QTU 350MY-HP

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTU 350MY-HP
Condition:
Excellent
Year:
2020
Stock #:
210634
Status:
For Sale

Description

THE QUICK TURN 350MY CNC TURNING CENTER WITH MULTI-TASKING CAPABILITY BRINGS TOGETHER ADVANCED TECHNOLOGY, PRODUCTIVITY, AND VALUE TO DELIVER EXCEPTIONAL PERFORMANCE FOR SHOPS LARGE AND SMALL. AS AN (MY) CONFIGURATION, THE MACHINE FEATURES MILLING CAPABILITY AND Y-AXIS FUNCTIONALITY ALONG WITH A STANDARD THROUGH-HOLE CHUCK PACKAGE, AND INTEGRAL TURNING SPINDLE MOTOR TO PROCESS A WIDE RANGE OF MEDIUM OR LARGER-DIAMETER PARTS IN A SINGLE SETUP.

Maximum Swing29.49"749.05 mm
Max Turning Diameter16.54"420.12 mm
Main Spindle Bore/Max Bar Capacity3.56"/ 3.0"3.56"/ 3.0"
Tail Stock/Sub SpindleTAILSTOCKTAILSTOCK
Maximum Cutting Length23.8"604.52 mm
X-Axis Travel (X1, X2, X3)8.58.5
Z-Axis Travel (Z1, Z2, Z3)23.7523.75
Y-Axis Travel (Y1, Y2, Y3)+/- 2"+/- 2"
W-Axis Travel Sub Spindle25.5 in
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.56"90.424 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed3,500 RPM3,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)30/22 HP / 30 kw30/22 HP / 30 kw
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 260006000
Turret Rotary Tool Horse Power 1, 21010
Parts CatcherYesYes
Chip ConveyorYesYes
ControlCNC (MAZATROL SMOOTH C)CNC (MAZATROL SMOOTH C)

MAZATROL SMOOTH C CONTROL
10" CHUCK
LIVE TOOLING
Y AXIS
PARTS CATCHER
213 PSI HIGH POWER COOLANT
TOOL PRESETTER
TAILSTOCK
CHIP CONVEYOR
COOLANT TANK & PUMP
(2) LIVE HOLDERS
MISC STATIC HOLDERS

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTU 350MY-HP
Condition:
Excellent
Year:
2020
Stock #:
210634
Status:
For Sale

Description

THE QUICK TURN 350MY CNC TURNING CENTER WITH MULTI-TASKING CAPABILITY BRINGS TOGETHER ADVANCED TECHNOLOGY, PRODUCTIVITY, AND VALUE TO DELIVER EXCEPTIONAL PERFORMANCE FOR SHOPS LARGE AND SMALL. AS AN (MY) CONFIGURATION, THE MACHINE FEATURES MILLING CAPABILITY AND Y-AXIS FUNCTIONALITY ALONG WITH A STANDARD THROUGH-HOLE CHUCK PACKAGE, AND INTEGRAL TURNING SPINDLE MOTOR TO PROCESS A WIDE RANGE OF MEDIUM OR LARGER-DIAMETER PARTS IN A SINGLE SETUP.

Specifications

Imperial

Maximum Swing29.49"
Max Turning Diameter16.54"
Main Spindle Bore/Max Bar Capacity3.56"/ 3.0"
Tail Stock/Sub SpindleTAILSTOCK
Maximum Cutting Length23.8"
X-Axis Travel (X1, X2, X3)8.5
Z-Axis Travel (Z1, Z2, Z3)23.75
Y-Axis Travel (Y1, Y2, Y3)+/- 2"
W-Axis Travel Sub Spindle25.5 in
Main Spindle Chuck Size10"
Main Spindle Chuck TypeHydraulic
Main Spindle Bore Diameter3.56"
Main Spindle Maximum Bar Work3"
Main Spindle Speed3,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)30/22 HP / 30 kw
Turret Tool Positions 1, 212
Turret Rotary Tool Spindle Speed 1, 26000
Turret Rotary Tool Horse Power 1, 210
Parts CatcherYes
Chip ConveyorYes
ControlCNC (MAZATROL SMOOTH C)

Equipped With

MAZATROL SMOOTH C CONTROL
10" CHUCK
LIVE TOOLING
Y AXIS
PARTS CATCHER
213 PSI HIGH POWER COOLANT
TOOL PRESETTER
TAILSTOCK
CHIP CONVEYOR
COOLANT TANK & PUMP
(2) LIVE HOLDERS
MISC STATIC HOLDERS
